2pcsxl6009 Dc-dcstep-up Module Adjustable Boost Power Converter 3v-32v To 5v-35v

US $3.89

Fuzhou, China
Jan 29th

Open on mobile:
QR code

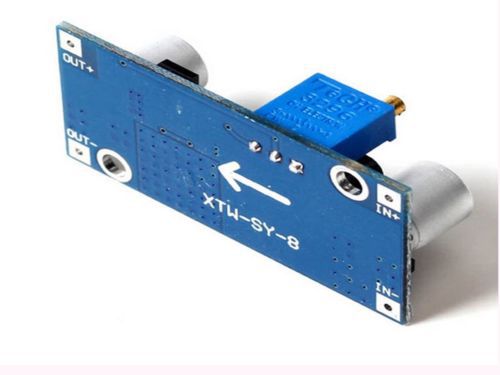

Item Description: IN-IN + input Positive Input Negative! Positive output OUT + OUT-output negative Test comparison sample reference: Input 3V Output 12V 0.4A 4.8W Input 5V Output 12V 0.8A 9.6W Input 7.4V Output 12V 1.5A 18W Input 12V Output 15V 2A 30W Input 12V Output 16V 2A 32W Input 12V Output 18V 1.6A 28.8W Input 12V Output 19V 1.5A 28.5W Input 12V Output 24V 1 A 24W Vin * Iin * Efficiency = Vout * Iout Vin: Input Voltage Iin: input current Vout: Output Voltage Iout: output current DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated. Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V; Wide Output voltage 5V ~ 35V; Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A) high switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz) Technical parameters: DSN6009 boost module Module Properties Non-isolated boost (BOOST) Rectification Non-Synchronous Rectification Input Range 3V ~ 32V Output Range 5V ~ 35V Input Current 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.) Conversion efficiency <94% (greater the pressure, the lower the efficiency) Switching frequency 400KHz Output Ripple 50mV (the higher the voltage, the greater the current, the greater the ripple) Load Regulation ± 0.5% Voltage Regulation ± 0.5% Operating Temperature -40 °C ~ +85 °C Item Condition: 100% Brand new Item Color: as photo Item Size:One Size Fits S to M Payment Options: We accept Paypal, and credit card via paypal.com only. * Payment is due within 7 days after end of auction. * This item will be shipped for the rate quoted via air to your PAYPAL address. * Packages are shipped within 2 days of auction Check Out with payment except weekends and holidays We are TAX FREE!!! So Why do you still need to pay tax from other sellers?? Shipping : We ship the items the day or the next day (mostly within 72 hours) of receipt of the payment. If not specifically indicated in the description of the listings, items are shipped by air mail. Air mail usually takes about15-20 days shipping to the United States, Canada, Europe, Asia or other places worldwide. Want customized shipping? Please contact me Our Product: Our products are NOT COUNTERFEIT! We can afford to be very competitive by having our own designers, manufacturers, and marketers. We guarantee the price of our items is reasonable. Most of them are ordered from original makers or made by our partnered manufacturer, so we have the ability to sell the items at competitive price. While purchasing items, please be aware that some individual patterns may differ. We starve for your shopping experience to be the most pleasant and strive every time to make your shopping experience a pleasure. Our stuff goes to great effort to guarantee that every item is correctly described, pictured and ced. Contact US: Still have another enquiries? Don't hesitate to contact us via email If you are not satisfied with your purchase, just e-mail us and return package within 30 days of the date of shipment in original condition for an exchange. If, for any reason you are not satisfied with your purchase, please contact us before leaving neutral or negative feedback. We will work with you to until you are satisfied.
