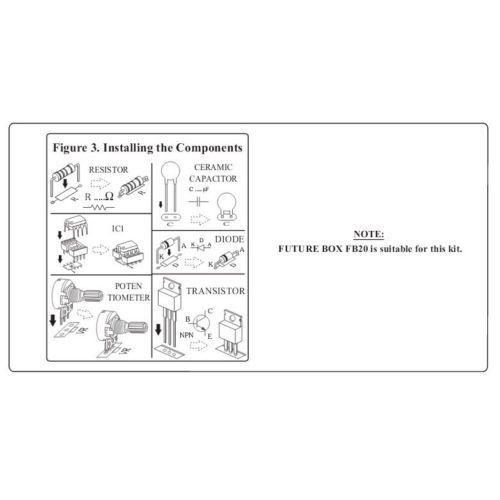

2x FA804 DC MOTOR SPEED CONTROL 20W 12V 2A HHO/PWM NE555 CIRCUIT KIT,FUTURE KIT ASSEMBLED KIT (2 Pcs.) Introductory Professionals, technicians and students will find the economy of the FK8XX series qualifies them for the designer's choice for power regulation devices. These easy-build kits are also available as pre-constructed modules for rapid time-to market. It is the revolution-per-minute control circuit of a DC motor. The control is composed of a volume that can be calibrated from zero to full load. Technical data - Power supply : 12VDC - Maximum output : 1.5A - The Pulse Width Modulation (PWM) signal is sent from point OUT to control the motor. - IC board dimension : 1.76 in x 1.32 in Circuit performances IC1 generates the frequency of about 264 Hz with respect to the values of R1, R2 and R3 VR1 and C1 whereas VR1 adjusts the duty mode as desired. If the positive duty is greater than the negative one, then the motor revolves slower. The derived frequency will be sent from Leg 3 of the IC passing through Leg B of TR1 which works under control at VR1. Circuit Assembly The assembly of components is shown in Fig. 2. For good looking and easy assembly, the shorter components should be first installed - starting with low resistant components and then the higher. An important thing is that diodes, electrolyte capacitors, and transistors shall be carefully assembled before mounting them onto their right anode/cathode of the IC board otherwise it might cause damage to the components or the circuit. Configuration of the anode and the cathode is shown in Fig 3. Use the soldering iron/gun not exceeding 40 watts and the solder of tin-lead 60:40 with flux within. Recheck the correctness of installation after soldering. In case of wrong position, just use lead absorber or lead extractor wire to avoid probable damage to the IC. Testing Connect a 12-volt motor at point OUT to energize the circuit - the anode to +12-volt pole and the cathode to pole G. When turning the volume to the left the motor revolves slowly and to the right the motor revolves fast. If the motor capacity is 800mA or more a fin shall be equipped with TR1 Free Shipping Handling WORLDWIDE. The package will be shipped directly from Thailand via Economy/Standard Small package Airmail, and it will take about 11-23 Business Days (or about 2-5 Weeks) **Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. **Please check with your country’s customs office to determine what these additional costs will be prior to bidding / buying Return Policy 100% Satisfaction Guarantee: If you are not satisfied with the product you purchased for any reason, please contact us for a return instruction within 30 days Shipping Handling costs are not refundable. Return shipping cost will be paid by buyer. We accept ONLY PayPal for payment. Contact us Please contact us by eBay message only.
