3 Axis Industrial Cnc Plasma Table 3100x1550 Hiwin Rails And Blocks

US $97.00

Crystal Brook, SA, Australia
Jan 30th

Open on mobile:
QR code

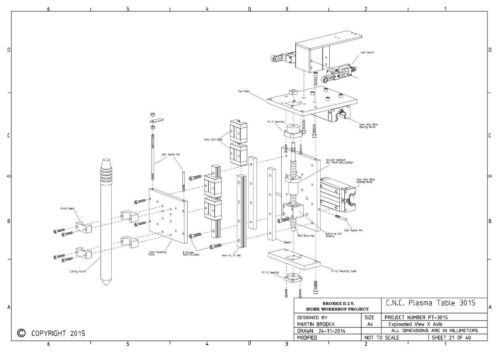

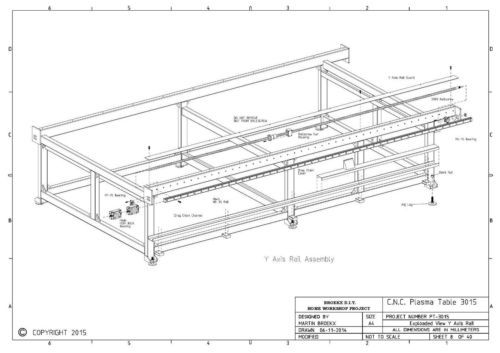

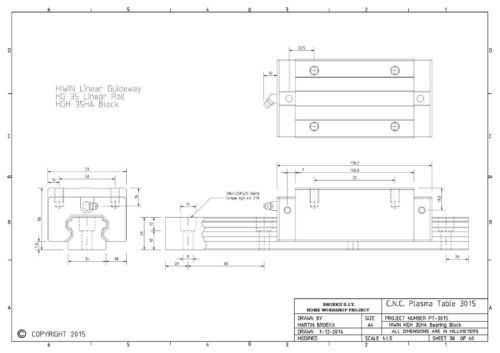

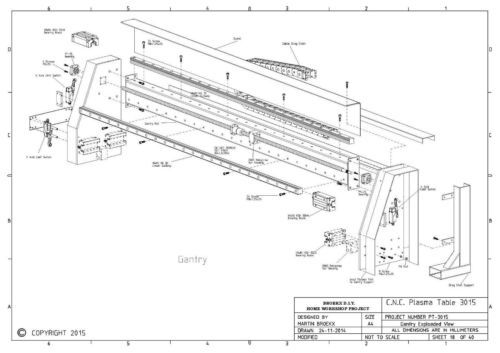

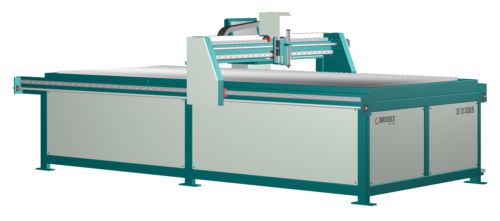

THESE PLANS ARE NOT AVAILABLE UNTIL 1/1/2015 CNC Plasma Table PT-3015 PLANS ONLY This is not a kit, plans only Why not build your own Industrial CNC Plasma Table with easy to follow comprehensive Scaled Drawings at a fraction of the cost of a bought machine? As the builder of this machine you will understand how it works and take pride in the completed project. Drilling and cutting dimension of all components are supplied, with a comprehensive material list with exploded views on how to assemble. A full set of electrical drawings are included TECHNICAL SPECIFICATION Machine: Model number PT-3015 Effective working travel 1550(X)mm*3100(Y)mm*60(Z)mm Work table dimension 3230mm*1590mm Acceptable material thickness 50mm Driving units X axis RM2005 ballscrew with FK-15 and FF-15 Bearings Y axis RM2005 ballscrew with FK-15 and FF-15 Bearings Z axis RM1605 ballscrew with FK-12 and FF-12 Bearings Sliding units X axis Hiwin HG35 Linear Guideway with HGH35CA Bearing Block Y axis Hiwin HG35 Linear Guideway with HGH35CA Bearing Block Z axis Hiwin HG35 Linear Guideway with HGH35CA Bearing Block Stepping motor type WT86STH118-6004A two-phase 8.7N-m (1232 oz-in) holding torque Stepping motor type Z Axis WT57STH115-3004A two-phase 3.0A 6.3VDC 3N-m (425 oz-in) Repeat accuracy 0.05mm Plasma Instructions G code/TAB files/nc file/NCC files Communication interface Through parallel connection with computer Software requirement Windows xp Maximum speed 0-4000mm/min Plasma Cutting speed 0-2500mm/min (different materials differ) Plasma Cutting speed 0-40mm (different materials differ) Construction Material RHS Mild Steel Control box: Operating Voltage AC110V/AC220V Control unit 3 x 350W,60VDC,5.8A power supply + 3 Drivers DQ860MA 7.8A 80V 256 Microsteps Computer connection On board parallel port Command code G code Acceptable software Mach3,EMC2 Protection Emergency stop button Machine features: This CNC-Plasma Table is suitable for large industry, Mining, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. It can work with various materials, such as: mild steel, Stainless. And soft metal .like aluminium, copper, brass and silver. etc. It can be used for cutting: advertising signs, nameplates, badges, seals, bronzing plate, aluminium alloy, indentation plates, signs, construction models, instrument panels, etc. These easy to follow plans will be sent to you in (pdf) and (dxf) format via Post as soon as confirmation of payment is received. You will receive the detailed plans, material list and electrical drawings to construct your own CNC Plasma Table. This is not a Kit, Drawing Plans Only License to build one CNC Plasma Table PT-3015.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Broekx
Model	PT-3015
