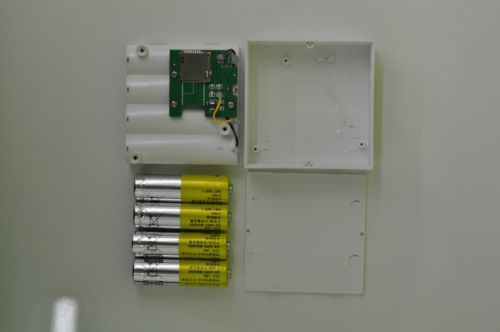

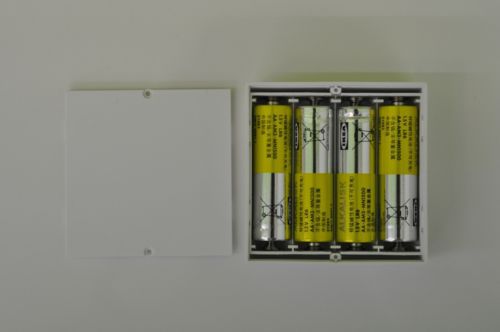

This is Promotion for Sensoro New Low Cost Beacons ($9.99/unit) Release. The Dev Kit normal price is $49.99/Set. One account is limited to buy one set. The Beacons will be shipped from Redmond, WA for US customer and other from Beijing, China. Function iBeacon CertifiedAll features of iBeacon supported.ConfiguableIncluding UUID, Major, Minor, Tx Power, Interval, etc.OTA UpgradableUpgrade Over-The-Air supported.Sensor InsideLight, Temperature, Accelerator sensors Integrated (part of models). Cost Purchase CostFine tuned antenna, optimized transmit strength, covering larger area.Maintenance Cost and Maximum battery lifeUsing Nordic nRF 51822 chips, in same Tx power and Advertising interval configuration, double or triple battery lifetime of Ti cc2541 chips.Fine tuned antenna, optimized transmit strength, covering same range using lower Tx power.Photosynthesis Energy Saving Mode(Patent), extend 1/3 battery lifetime in common scenario(part of models).Multiple power supply choices, 4 x AA battery supported with 5~6 times battery life of button cell CR2477 battery, battery changeable(part of models) Security Prevent malicious tampering configurationHardware level password, prevent from malicious configuration modification.Prevent Squattersboradcast rotated encrypted major/minor, prevent reading major, minor from squatters. Performance Extra-Micro LocationDual antenna(Patent), covering radius down to 15cm (part of models).Stable Indoor positioningFine tuned antenna, optimized transmit stability, signal fluctuations was reduced. Deployment Onsite Adaptive Capacity12 degree Tx power, more control on signal covering.Mass Deployment ReadyDeployment tool provided, batch update configuration on site.Pre-Configuration service for batch order, Out of the box.Dense Deployment Ready for extra-precise micro-positionDual antenna(Patent), covering radius down to 15cm, signal interference reduced for extra-precise micro-position (part of models). Management Collect Device Status without ConnectionExtended iBeacon protocol(Patent), broadcasting device battery level and sensor data .Inspection tool provided, collection mass device battery level and sensor data in a dead simple way without connection to each device.Central Monitor DashboardCentral Monitor Dashboard provided, monitor mass device status including battery level, temperature, motion count, light level and other configuration (Tx Power, Adv Interval). Integratable Integration friendlyCollecting device status from your own APP with a few coding lines embedded.REST API to access Central Monitor Dashboard data. Certification MFi/iBeacon CertifiedCertify Code: 214945FCC/CE CertifiedFCC ID: 2ADCH-B0BluetoothSENSORO is member of Bluetooth SIG. Beacons 1. Yunzi: This is Sensoro's high end beacon. It has good looking, best design and performance. It is good to be used in customer facing scenario. 2. SmartBeacon-4AA: It is powered by 4 AA batteries (Batteries are not included), which could provide 4000 ~ 6000 mAh and very long battery life. It could decease maintenance cost very much! Its retail price is $9.99. It is not water-proof. It is good for large volume indoor deployment. 3. SmartBeacon-2AA: It is powered by 2 AA batteries (Batteries are not included). It is water-proof. Its retail price is $9.99. It is good for large volume out-door deployment. Yunzi SmartBeacon-4AA SmartBeacon-2AA Retail Price $21.49/unit $9.99/unit $9.99/unit Chipset Nordic NFR51822 Nordic NFR51822 Nordic NFR51822 Protocol Bluetooth® 4.0 with iBeacon certification Bluetooth® 4.0 with iBeacon certification Bluetooth® 4.0 with iBeacon certification Sensors Accelerometer, Temperature, Lightness Accelerometer, Temperature Accelerometer, Temperature Radius power -30 dBm to +4 dBm -30 dBm to +4 dBm -30 dBm to +4 dBm Broadcasting interval Adjustable ( 100 ~ 1285 ms) Adjustable ( 100 ~ 1285 ms) Adjustable ( 100 ~ 1285 ms) Battery CR2477 (1000 mAh) 4 x AA (4000 ~ 6000 mAh) 2 x AA ( 2000 ~ 3000 mAh) Battery Life (Broadcast interval/Tx Power) 760ms, -8dBm 722 days 2800 ~ 4200 days 1400 ~ 2100 days 100ms, -8dBm 138 days 550 ~ 830 days 225 ~ 415 days Water proof Yes No Yes Size 50 (diameter) x 19 (thickness) mm 64 x 64 x 23 mm 58 x 83 x 33 mm Battery include Yes No No Dual Antenna Support (Extra short range) No Yes Yes Configuration tool is at http://www.sensoro.com/en/developer#config Batch configuration tool is at http://www.sensoro.com/en/developer#deploy Beacon Management tool/System is at http://www.sensoro.com/en/developer#inspect and http://www.sensoro.com/en/developer#cloud SDK is at http://www.sensoro.com/en/developer#ios and http://www.sensoro.com/en/developer#android Development Resource is at http://www.sensoro.com/en/developer. Download Resource is at http://www.sensoro.com/en/download. Centralized Battery Management When we deployed 100+ iBeacons, some of them might be running out of battery and needs replacement. How could we find the Beacons needs replacement effectively? Other Beacons' solution(High cost, time consuming): Connect to the Beacons to get battery status ONE BY ONE? It is unstable, time consuming and high cost. It will cost you thousands dollars. And it is not scalable. How about if 1K or 10K Beacons deployed? Sensoro's Battery Management (Easy, Simple, Enterprise level solution): What we need to do is to install Sensoro Inspection Tool (http://www.sensoro.com/docs/#inspect) in your Smart Phone and by pass the Beacons, the Beacons battery status will be collected by the Inspection tool automatically and uploaded to Cloud in a few seconds. After that, we could check the Beacons' status on Sensoro portal (http://cloud.sensoro.com) as below. What is Beacon? Beacon actually contains a complete micro computing system, including 32-bit ARM® Cortex M0 CPU or 8051, RAM, FLASH, wireless communication module, different types of sensors and Apps. When Beacon is deployed, it continuously broadcasts information through Bluetooth which can be received by your smart phone without Bluetooth pairing. The working principles of iBeacon technology can be described in the following three steps: A Beacon transmits a universally unique identifier through Bluetooth; A compatible App picks up the identifier then looks up over the internet to determine the smart device's physical location; A smart device triggers an action. We say that iBeacon is a digital coordinate deployed in physical world or is a digital electric label that can be attached to any physical object, location or scene. Aside from the function of sensing its own movement, it can also sense the lighting, temperature around you—this builds up a people behavior perceptive network after being processed by SENSORO SDK, which can be interpreted as a bridge linking the physical world and the digital world, bringing your program or equipment to the era of contextual computing. Developers don’t need to deploy complex cloud system; instead, SENSORO SDK (iOS and Android both available) makes it much easier. Manufacturing process Every industrial process of Beacon manufacturing matters when in comes to quality. Complexity or simplicity, strictness and slackness directly affect the product diversity shown. Surface. The most preferred is two-color plastic and intra injection molding, but technically extremely challenging. Many manufactures give up this technology because of the expensive cost in repeated molding adjustments in order to ensure stable shape. Common practice would be single-color molding so as to lower cost and save time. While Yunzi chooses without hesitation the best technology-- two-color plastic injection molding. Metal craftwork? Tough choice. The average manufactures would not use metal for the higher cost and difficulty. Yunzi is one of the few advocators for metal craftwork. In order to realize artistic design, Yunzi designers use the same iPhone 5S frame aluminum alloy processing technology—well-distributed and delicate anodizing sandblasting and mirror-bright upper and lower flames polishing. Micron-grade production accuracy is ensured by high energy laser engraved frame logo and LED micro loophole. The inner core circuit board is the heart of Yunzi. The average manufactures use green ink PCB process while SENROSO uses environmentally-friendly black ink and matte coating—artistically beautiful even though invisible to users. All contact points and pads are gilded to prevent air oxidation—still durable after long time. Antenna design also determines core-competitiveness of beacons because different levels of technology directly affect the stability of their wireless signals. Yunzi designers carefully calculate the impedance matching of radio-frequency circuit, also simulate and adjust wireless signal radiation of antenna to ensure best consistency of the antenna transmit signal direction. Moreover, many other manufacturers commonly purchase regular Bluetooth modules and piece them together. Protection design. Outdoor operation is becoming a major concern for clients and Yunzi is water-proof like many of other beacons. But Yunzi is also dust-proof with final ultrasonic encapsulation. It has been tested that Yunzi continues to function well after being immersed in 0.5m depth of water for half an hour. The stated features enable Yunzi to endure in more severe environments There is another good thing from our beacon. Our beacon's signal is more strong and stable. It is better for both notification pushing and indoor navigation scenario. Below is the test result to compare with other 2 Beacons. It is tested with Nordic company's nRF Master Controller, which could install from Andriod play store. All three beacons are sending broadcast package with 0dbm and 416ms interval. The Smart Phone is SUMSUNG S4. The distance is 1 meter. And the test result as below. From the result, we can get conclusion. 1. Sensoro's signal is most strong 2. Sensoro's signal is most stable (which is very important for indoor navigation). If you need a large order, please call me(Vivian) at: +1(425)802-4936. Website: www.sensoro.com
