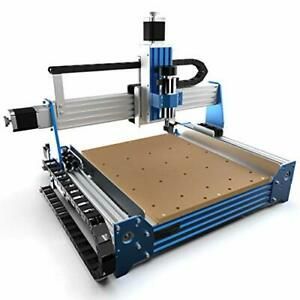

3040 Usb 4 Axis Cnc Router Engraving Advertising Pcb Pvc Milling 3d Cutter+rc Eu

US $888.01

Basel, Switzerland
Jul 30th

Open on mobile:
QR code

Store category Sign Up Now ! You may also like 3040 USB 4 Axis CNC Router Engraving Advertising PCB PVC Milling 3D Cutter+RC EU Product Description Attention: Pease note:We only sell machine without software. If you need software, please buy on official website. ROUTER ENGRAVING MACHINE ENGRAVER 3040 COOL SPINDLEMOTOR VFD 800W USB PORT SKU:TS3040USB-1+TS3040USB-2+TS001USB+OT-XJZ-453 ENGRAVING MACHINE parameters: X, Y, Z Working Area: 400(Y)*295X*80(Z)mm Outside dimension: 630*505*495mmL*W*H Table size: 550Y*360Xmm Lathe structure: 6061/6063 Aluminium alloy Max. Feeding height: ≤60mm Drive unit: X axis---SFU01204-4 Ball Screws Y axis---SFU01204-4 Ball Screws Z axis---SFU01204-4 Ball Screws Sliding unit: X axis---High intensity Chromeplate shaft Y axis---High intensity Chromeplate shaft Z axis---High intensity Chromeplate shaft Stepping motor: 7 two-phase 3A 150N.cm Spindle motor (tips1.The spindle motor must connect with the VFD. 2. It cannot directly connect with the supply voltage (220V). 3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor. Outside dimension: 65*158mm Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket VOLTS, current, power: AC220V, 50Hz, 5A, 0.8KW VFD Spindle speed: 24000 rpm Max working frequency: 400Hz Principal axis collet: ER11collet, Standard configuration:6mm Nut Model: ER11-A Cooling: Water-cooling Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM Lubrication way: lubricated by high grease Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03mm Carving Instructions: G code / TAB files / nc file / NCC files Communication interface: through USB connection with computer Maximum Idle speed:1500mm/min Working Speed :50-1500mm / min (different material with different speed settings) Control box parameters: Operating Voltage: AC220V Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive Computer connection: USB port Command code: G code Protection: Emergency stop button Packing list: 1X main unit (Frame) 1X main unit (working base) 2X Fence baffle 1X control box 1X A axis 1X Sinal cable for A axis 1X pump 1X USB line 2X cutter 2*6mm 2X cutter 3*6mm 10X 4*7mm round head 6X 4*10mm black Inner six angle screw with nut 8X 5*20mm black Inner six angle screw 4X 5*8mm Flat Philip's head screw with nut and gasket 8X 6*11mm BALCK FLAT Inner six angle screw 12X Aluminium fastener 1X 13-15# Wrench 1X 14-17# Wrench 2X six angle Wrench(3mm) 2X six angle Wrench(4mm) 1X Teflon tape 2X Fuse (5A) 1X Power cable 1X Manual Description: 1. This 3040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. 2. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc. 3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate,PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc. 4. The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner... 5. With the assist of the ROUTER 3040T, your design idea will be real-time display. Feature: 1. The NEW 0.8KW water- cooled VFD is available operating for long time, which can reinforced the processing abilty of the machine and can be used to process aluminum alloy and hard wood. 2. water cooling spindle works more stable and durable. 3. High quality accurate ball Screws drive make the engrving more precision.Anti- blackflash, high precision, long life circle. 4. Compatability: Type3/ArtCAMParameter How to use 1. Assembling and locating the machine on steady desk well. 2. Make sure that your computer has a USB port output. 3. Place the contral box in a ventilated dry place where there is no dust,no moisture 4. Connecting the control box with the machine and you computer and make sure the plug will not come off. 5. Correctly connect the machine with the controller. Don't suspended the cable which connect the Spindle motor with axis(X, Y, Z, A). Otherwise, it will damage the driver of the controller. 6. Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well. 7. Installing a control Drive on your computer. 8. Fllowing our manual or guideline to set 9. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine. 10. You can enjoy making you dream with using our machine now. Description: Industrial engraving machine controller Spring can be stretched to 3 meters Waterproof design, very durable, anti-dirt, oil spray Power by USB port Dimensions: 22 x 8 x 3cm The usb self-check light, you can type the " scroll" on the keyboard to activate it. Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A- Feed rate control: F+, F- Jog rate: J+, J- Spindle speed: speed up, slow down Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point Package Include 1 * Remote controller 1 * Cable Payment Delivery details Return policy Feedback Con-tact us Payment We accept PayPal payment only Payment must be received within 7 days after order is made. Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Please pay attention to the payment in advance: according to experience, a transfer takes 2-3 days depending on the bank until the money is over. As soon as your payment is received, we will send you the goods within 48 hours. On Saturday and Sunday there is no delivery and no shipping. Please note: We ship parcels from Germany warehouse to europe buyers! 3-7 days: GERMANY 5-10days: Other countries We promise that every item has been sent. But sometimes there is also 0.3% package lost during transport . If this happens after we have confirmed this with the post, we will send you the package again as soon as possible or refund the money immediately. Return policy Your satisfaction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, Please tell us the problem in details and Please con-tact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as received . Customer is responsible for shipping costs of the returned item caused by misorder,or don't need it anymore. c) We will cover the cost of shipping if the item is defect when you received. Or We will send you a new unit or refund the full payment you paid. Feedback Thanks for buying my business. If you have any problem with the item, if you have got it, please do not hesitate to contact us. We will provide you the best solution for any problem with the item. We would be delighted if you kindly contacted us before requesting a return or leave negative feedback. Con-tact us Business Hour : Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply you-= within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please con-tact us with ebay message. Please feel free to con-tact us if you have any questions. Feedback On Jul-29-21 at 19:12:17 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Axis	4 axis
Cooling	Water-cooling
Lathe structure	6061/6063 Aluminium alloy
Brand	Unbranded
Stepping motor	57 two-phase 3A 150N.cm
MPN	Does Not Apply
Nut Model	ER11-A
Control	CNC
Carving Instructions	G code / TAB files / nc file / NCC files
Machine Type	4 Axis Router Machine
Repeat accuracy	0.05mm
Power Source	Electric
UPC	Does not apply
