3axis Cnc Controller Tb6560 Stepper Motor Driver Controller Board Rattm Motor

US $45.00

???, ???, China
Jan 29th

Open on mobile:
QR code

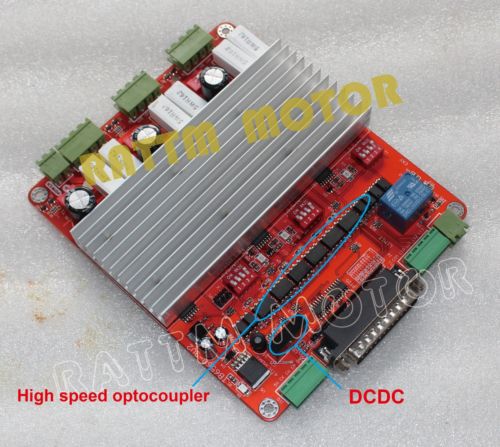

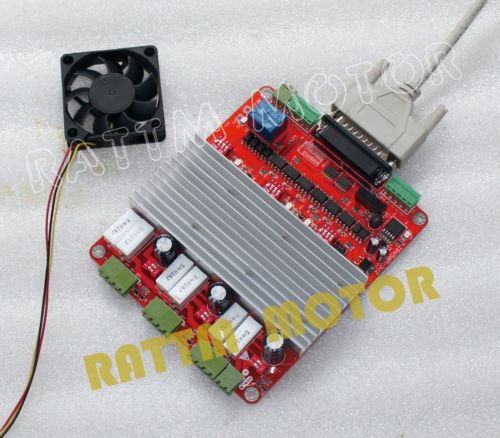

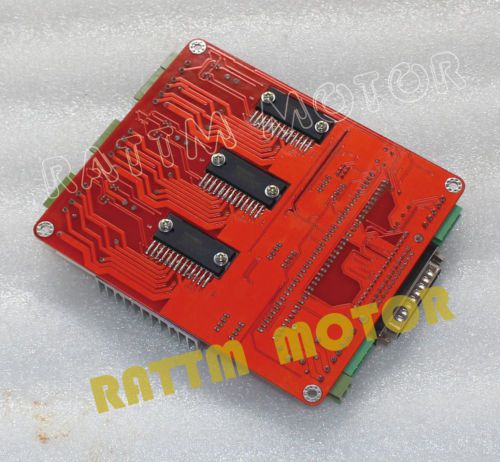

Package include: 1 x 3 axis TB6560 Stepper Motor Driver board V type (High speed Optocoupler) 1 x DB25 parallel cable 1 x Fan,4pcs M4 screw English user manual for 3 axis driver board will send by email. 4 axis CNC controller TB6560 stepper motor driver board Products Features: CNC stepper motor driver board TB6560,the new chip TB6560AHQ of TOSHIBA, the max ouput peak current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A. The advantages of the TB6560AHQ chip: The vibration of the motor is small and low noise: because of the 2/8/16 resolution can satisfy the different speed. Flush type low heat: The area of the chip can support itself to cool when the current is low Supports a lot of stepper motors. The advantages in the high-speed running condition. Features: it can drive three axis,The 4th axis expansion, to facilitate your needs 4-axis machining when working Spindle relay output, easy to use software such as mach3 to control spindle start and stop. Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum. Interface with a fan, you can add fan under your choice. With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive; Standard parallel port interface, support for MACH2, KCAM4 series software; With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment; with limit switch,can connection 4 aixs limit switch Support four microstepping ??1,1/2,1/8,1/16 12?36V single switching power supply,microchips to use as a 5V power supply, stable and heat small Using RC +7414 automatic semi-flow,the current automatic reduce when stepper motor stop to down the heat. Question and Answer: Q1:why other supplier?s TB6560 driver has 3.5A/3A current,but yours is 2.5A? A :TB6560 chip average output current is 2.5A,peak current is 3.5A,and can drive small than 3A stepper motor,ours 2.5A means the top average output current in real,also it is a long time security value,this is not design problem,it is according to the TB6560 chip self specification. Friendly Note: It is not worthy to save small money to buy a driver board but broken mainboard or lose step and skewing when engraving. Shipping Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately We ship to worldwidebut If your country’s custom is strict, please contact us before you bid to check detail and confirmed. Delievry time USA post service round 10-18 business days Canada China post round 25-40 business days Australia China post round 20-35 business days Western EU(Germany,UK,France, etc) China post 20-35 business days Asia,South America,other countries Chins post round 15-40 business days Note:above offer is default delivery way,if you need fast delivery like as DHL/UPS or post service pls inform us to confirm the shipping cost before you bid Above DHL/UPS offer is without remote fee,if your post code is remote it need extra cost. All items will be shipped within 1-3 business days upon receipt of payment Payment We accept paypal payment,all Paypal must be confirmed(shipping and billing address must match and correct and it need tell us your telephone no for delivery) Payment must be made within 48hours of the auction end time Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Problem&Feedback Please give us the opportunityto resolve any problem when you have,we concern your problem and we will try our best to resolve it. We are a new member in ebay now,and need understand both of sides Pls email us before you want to leave any negative feedback Refund When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos,after confirm we will refund your money,but the delivery charge paid by buyer. Contact us Email:sale1@rattmmotor.com,MSN:tonyswj@hotmail.com Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again Customer’s satisfaction is very important to us.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RATTM MOTOR
Type	Hybrid
Model	3Axis TB6560
Current / Phase	3.5A
MPN	http://hgauto.en.alibaba.com/
Motor Type	Stepper motor
Country/Region of Manufacture	China
