3d Lightsquared Diy Kit 4x4x4 257mm Led Cube White Led Blue Ray

US $9.88

Shen Zhen, China
Jan 29th

Open on mobile:
QR code

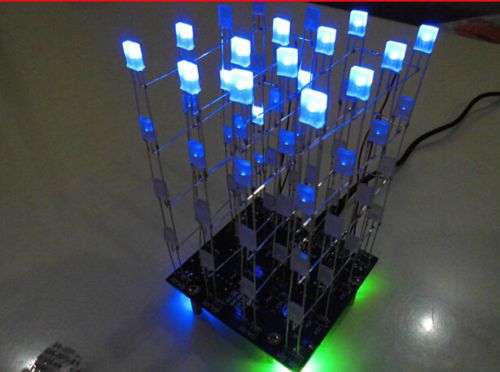

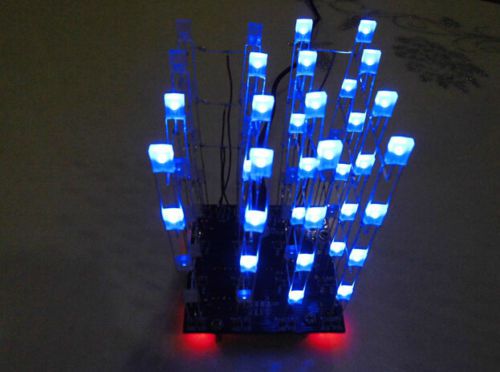

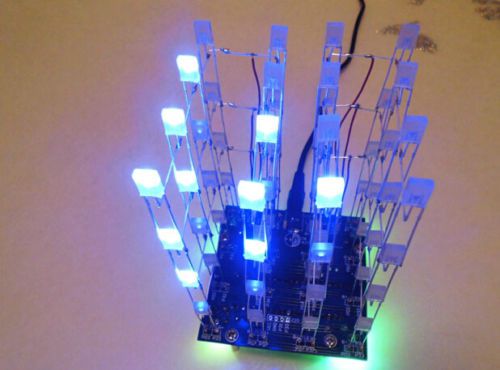

3D LightSquared DIY Kit 4x4x4 2*5*7MM LED Cube White LED Blue Ray 1. Parameter: service voltage:5V size :71*73mm Double light cube shipping list: PCB board *1 blue ultra bright LED long legs *70 40 p round line of mother *2 5mmLED interval column *5 5MMdeversified LED *4 15 mm copper column *4 DC005 to USB power supply line *1 DC005 seat *1 25 v470uf electrolytic capacitor *1 1 k resistor *4 40 p chip base *1 STC12C5A60S2 burn written procedures *1 22 p ceramics capacitors *3 11.0592 M crystal vibration *1 1m single conductor 2.Empty PCB board pictures: 3.Welding after the good finished product on the back of the pictures: 4.Welding after finished product positive image: 5.Dazzle colour effect: 6.Welding production methods: P2.0-P2.7 is a layer of control lines, we first help light cube divided into about two sides, each measuring 2 LED anode connected together is a layer. The left side of the top level (that is, on the 4th floor) of the total cathode layer control line is P2.0, common cathode layer control line on the left side of the second layer is P2.1, common cathode layer, Layer 3 control line on the left is P2.2, the left side of the fourth layer (that is, the bottom) of the total cathode layer control line is P2.3, the right side of the top level (that is, on the 4th floor) of the total cathode layer control line is P2.4, right side common cathode layer layer 3 control line is P2.5, common cathode layer controls the right side of the line of the second layer is P2.6, the right side of the first layer (that is, the bottom) of the total cathode layer control line is P2. 7. 6.1. Beam connection: Beam connection method more classic, as shown above, left of each row mother wrote on the board B + welding is kind of a blue-color LED cathode, R + welding is kind of a red color LED cathode (If you buy a monochromatic cube , LED positive) 7. Understand the welding method,you can start welding. 7.1. Method for Connection under the lamp holder . 40P round row cut into single needle Use outlet forceps or diagonal pliers: Use outlet forceps or diagonal pliers cut off the seat beside the plastic.Use outlet clamp to cut is better.Of course, also can not cut,Just compare unsightly. 7.2. Plastic LED, each LED plastic as shown below: 7.3. Welding a fixed LED's universal plate,convenient welding LED stent. LED array of welded by this method is more beautiful. See the pin welding distance! With a 9 * 15 or more universal plate welding 16 row needle, and then put the LED plasticed clip on row needles, longitudinal welding positive, transverse welding the negative. Exactly 16 LED welded down,which is a surface,,after four sides is made, can assemble a 4 * 4 * 4 light cube. We only accept Paypal in Ebay. If you want to pay via other method please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biding Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding You feedback is very important to us, please let us know before leaving any negative feedback or open any disputes on Paypal, please give me an opportunity to resolve any problems and we will try our best to satisfy your requirement. If the item is defective, please let me know as soon as possible after receive the items. The item will be returned its original condition, in order to get it refunded and replaced (please inquire us the returning address before you ship it back.) . Buyer is responsible for shipping costs when shipping products.
