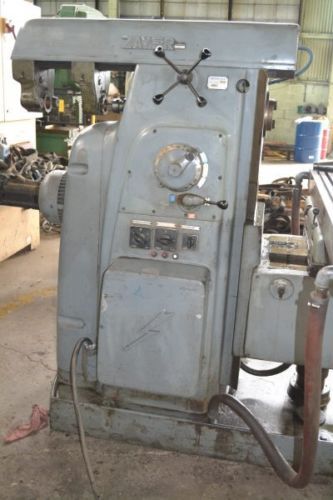

3u Zayer Universal Horizontal Mill W/overhead Vertical Spindle - #27215

US $6,950.00

  • Cincinnati, Ohio, United States
  • Jan 30th
Open on mobile:
QR code

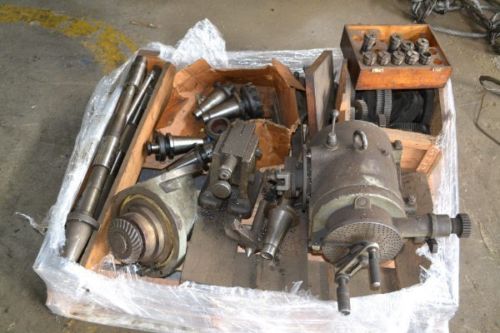

Quote #27215 3U ZAYER UNIVERSAL HORIZONTAL MILL  W/OVERHEAD VERTICAL SPINDLE  S/N 3046, Model 3U,    EQUIPPED WITH: Swing Away Vertical Spindle Attachment  Universal Swiveling Table (+/- 45 Degrees) (2)Arbor Supports - Arbors - Dividing Head W Tailstock (5) Toolholders - Built-In Coolant System   CATALOGUE SPECIFICATIONS: Table Working Dimensions................ 12" x 63" Table Longitudinal Travel (X-Axis)...... 49.5" Saddle In-Out Cross Travel (Z-Axis)..... 14" Knee Vertical Travel (Y-Axis)........... 20" Table Swivel, RH or LH.................. +/- 45-DEGREES Spindle Taper........................... #50 NSTD (12) Spindle Speeds, Range.............. 55 to 1655 RPM (12) Longitudinal Feeds, Range.......... .75 to 25 IPM (12) Cross Feeds, Range................. .75 to 25 IPM (12) Vertical Feeds, Range.............. .375 to 12 IPM Power Rapid Traverse, Longitudinal...... 120 IPM Power Rapid Traverse, Cross............. 120 IPM Power Rapid Traverse, Vertical.......... 60 IPM Spindle Motor, Horsepower............... 10 HP Feed Motor,............................. 3 HP Electrics............................... 220/440/3/60 Weight, Approximately................... 5,300 LBS   PRICE: F.O.B. OUR WAREHOUSE............. $6,950.00
