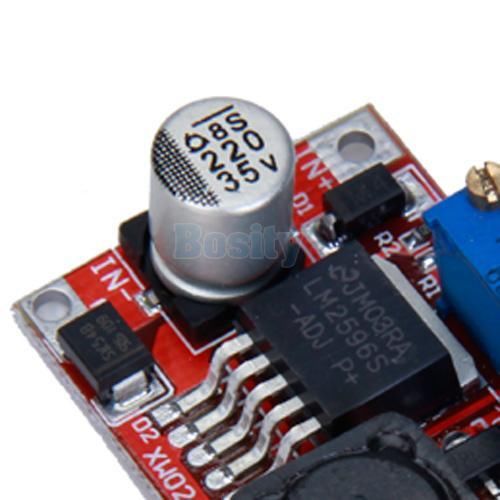

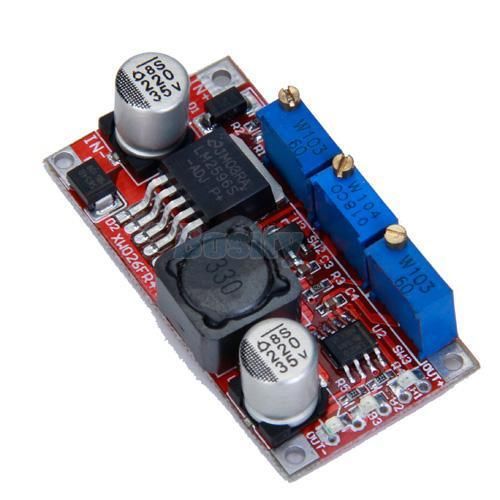

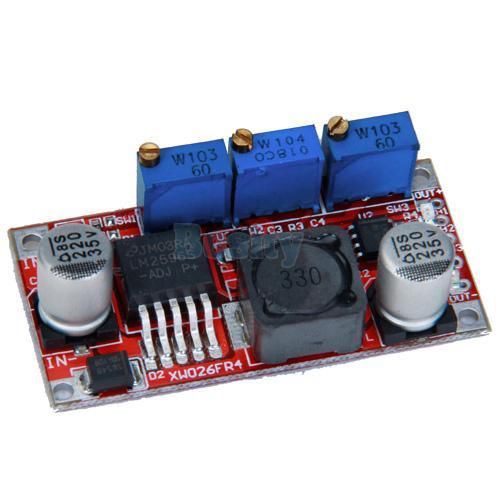

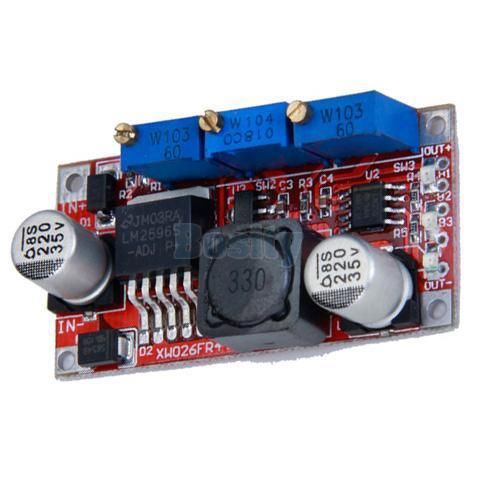

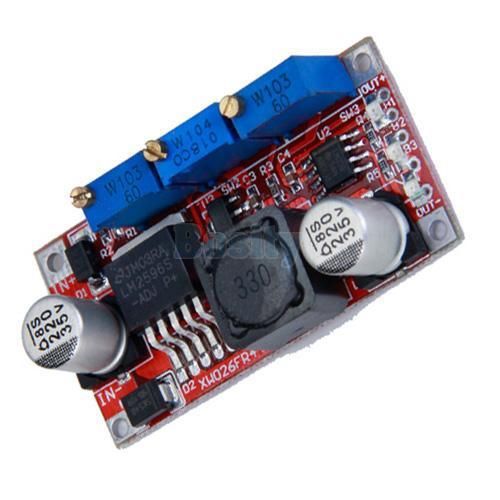

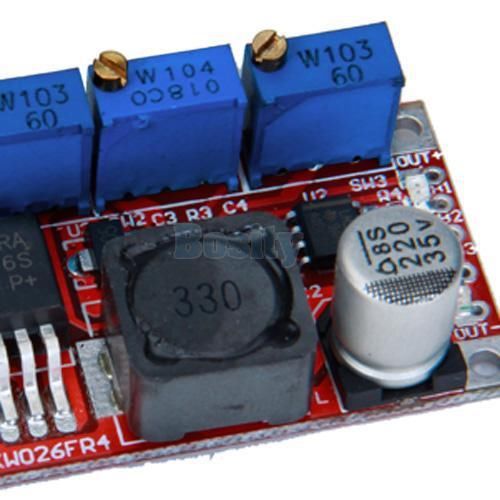

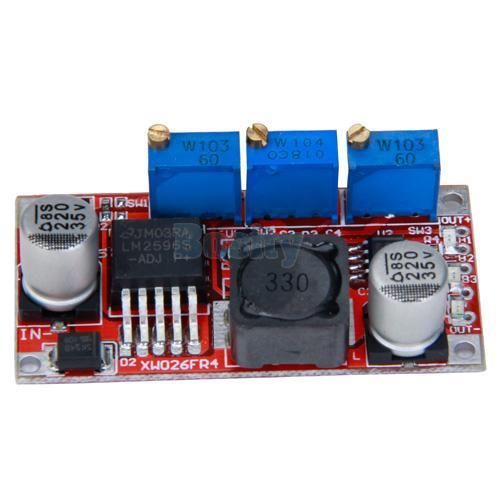

3x Lm2596s Dc-dc Step Down Adjustable Power Supply Module 5-35v To 1.25 V-30v 3a

US $10.88

Shenzhen, China
Jan 29th

Open on mobile:
QR code

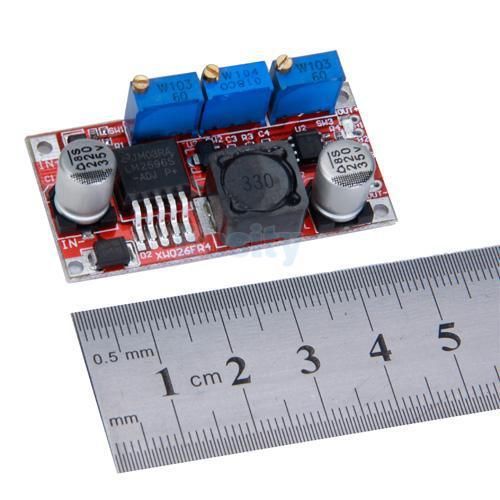

About us Shipping Payment Returns Contact us Search Shop in titles & description Store Categories Store home Home & Garden Pet Supplies Business & IndustrialConsumer ElectronicsCrafts Clothing, Shoes & Accessories Collectibles Computers/Tablets & Networking Jewelry & Watches Sporting Goods Health & Beauty Baby Toys & Hobbies Payment Policy LM2596S DC-DC Step-down Adjustable Power Supply Module Description: 1piece of DC-DC adjustable step-down power supply module Input Voltage: 5-35V Output Voltage: Continuously adjustable from 1.25 V to 30V Rated Output Current: 3A Max. Output Current: 4A (more than 15W, preferably with a heat sink) Size (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x 1.3cm Adjustment: Apply to 5-35V power source, use multimeter to test the oputput voltage and then adjust the potentiometer, turn clockwise to step up and counterclockwise to step down Indicator Light Constant current indicator(red) Charging indicator(red) Charged full (green) Applications: High-power LED constant current drive Lithium battery charger (including ferroelectric) 4V, 6V, 12V, 14V, 24V battery charger Nickel cadmium, nickel metal hydride battery pack charger Solar panels and wind turbines Battery Use: Make sure of the voltage and current of the battery you need to charge Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease) Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value The charge current of transfer lamp is default 0.1 times of the charging current (constant current value) Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries) LED Constant Current Driver Use: Make sure operating current and Max operating Voltage of the LED you need to drive Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED) Package Includes: 1 x Adjustable Power Supply Module Keywords: dc-dc power supply module, power supply modules, adjustable power supply module 14_T000119015891 Shipping And Handling Policy The buyer is responsible for any applicable import duties and local taxes. Please verify with your customs before making your purchase. Please verify your address during checkout. We are not responsible for any wrong or undeliverable addresses. People always bought together with 10x Isolated Power Module AC/DC-DC C... $64.15 Buy It Now Free Shipping 3x Isolated Power Module AC/DC-DC Co... $21.85 Buy It Now Free Shipping 3x Isolated Power Module AC/DC-DC Co... $21.85 Buy It Now Free Shipping 5x DC/AC- DC LM317 Adjustable Voltag... $16.33 Buy It Now Free Shipping 10x DC Car Charger 9 12 24 35V to 3-... $40.39 Buy It Now Free Shipping 2x L7805 AC/DC-DC Step-down Power Su... $6.70 Buy It Now Free Shipping 10x 10000W AC 220V SCR Digital Volta... $164.64 Buy It Now Free Shipping 2pcs 2000W Voltage Regulator w/ Powe... $8.94 Buy It Now Free Shipping 2x AC 110~220V 2000W SCR Voltage Reg... $8.38 Buy It Now Free Shipping 10x Adjustable Step-down DC-DC Power... $54.19 Buy It Now Free Shipping 6V-12V to 5V AMS1117-5V Power Supply... $2.65 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping Isolated Power Module AC/DC-DC Conve... $9.29 Buy It Now Free Shipping DC/AC- DC LM317 Adjustable Voltage R... $3.81 Buy It Now Free Shipping DC Car Charger 9V 12V 24V 35V to 3-6... $4.99 Buy It Now Free Shipping 3800W Voltage Regulator Dimming Ligh... $7.79 Buy It Now Free Shipping
