40w High Power Dc 3.7v 5v 9v To 12v Dc-dc Step-up Converter Repl Xl6009 Lm2577- Show Original Title

US $1200

Guangzhou, China
May 8th

Open on mobile:
QR code

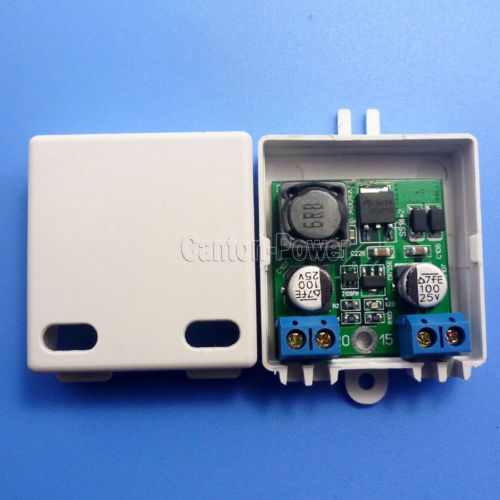

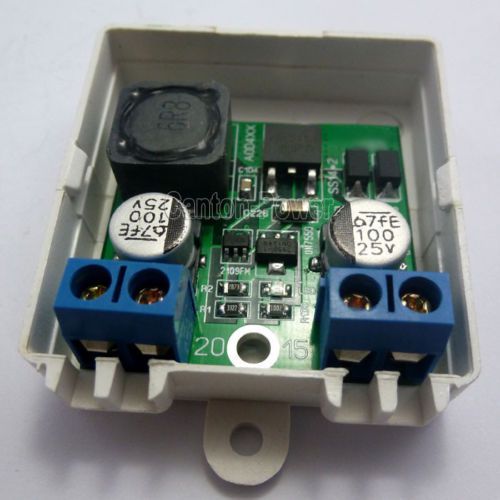

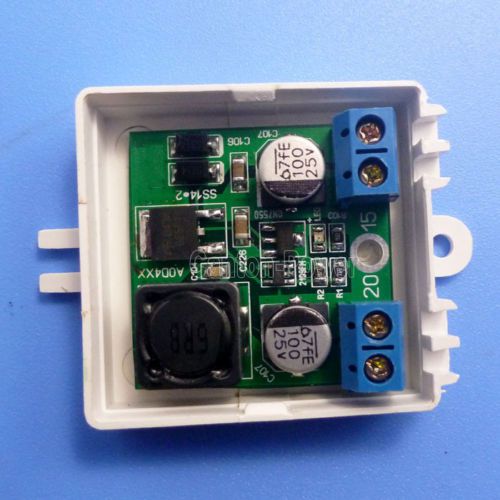

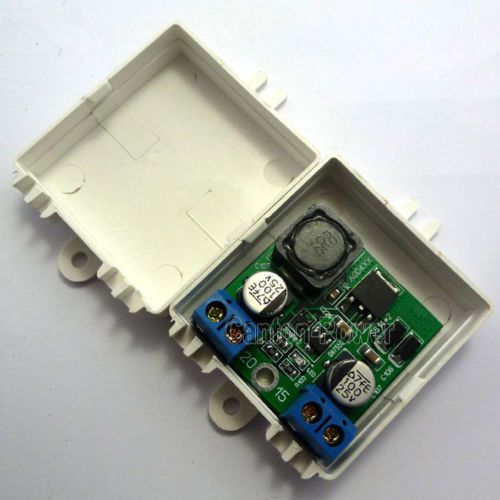

Applications: Smart Home / Home Automation IP PTZ Camera Solar charger Monitor Power CCTV Power PLC Power LED Driver Power Motor Driver Power Fan Power Solar cells Bicycle Battery Charger Motorcycle battery charger buy it now,from here!!! Product Name: 40W High Power DC 3.7V 5V 9V to 12V dc-dc step-up converter repl xl6009 LM2577 Module No.: CE015 Packing list: 1 pcs 40W High Power DC 3.7V 5V 9V to 12V dc-dc step-up converte; 1 pcs PC Plastic shell Description: You can buy it now,from here!!! DC-DC Boost module working frequency 300KHZ.efficiency 56%-92% . Operating ambient temperature : -22~+85 Degrees Celsius Voltage Module Size 33mm x 33mm x 13.8mm; Weight : 12.5g Shell Size : 41mm x 40mm x 20mm;Weight : 10.5g Input voltage : DC 1.5 ~ 12V( Maximum withstand voltage 16V, When >12V,Output >12V ) Output voltage : DC 12V(+-5%) Maximum input current : 5A(Instantaneous maximum value) Maximum output current: 3.5A Under different conditions, the measurement result will be some deviation Input voltage Input Current Output Voltage Output Current Efficiency 1.5V 0.28A 12V 0.02A 57% 1.8V 0.33A 12V 0.03A 60% 2V 0.36A 12V 0.04A 67% 2.5V 0.4A 12V 0.06A 80% 3V 1.5A 12V 0.3A 80% 3.3V 1.8A 12V 0.49A 80% 3.7V 2.2A 12V 0.54A 80% 4V 3A 12V 0.8A 80% 5V 3.2A 12V 1.1A 82% 6V 3.2A 12V 1.3A 86% 7V 3.3A 12V 1.66A 86% 8V 3.4A 12V 1.97A 87% 9V 3.5A 12V 2.31A 88% 10V 3.7A 12V 2.8A 92% 11V 4A 12V 3.32A 91% Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low ★Introduction for Shenzhen Canton-Power Electronic Technology Co.,Ltd : We specialize in Power supply field,Factory Outlets,good quality and competitive price! Because the focus, so professional !!! ★Shipping: Normally shipping is by Airmail from China Post Air Mail or Hong Kong Post Air Mail ,15-60 days shipping time based on different country . Express is available, shipping time is 2-7 days all over the world, and telephone number is needed. Please contact us first for extra payment . ★Benefits The Best Prices. By working with Canton-Power Ltd, you can take advantage of the internet business, cut off the wholesalers cost and other costs, and import your products directly from the manufacturer at incredible prices. Prompt Delivery. Most units are in stock all the time, standard units will be completed within 1-3 days if they are sold out, it is great help for you if your project must be completed before deadline. Prompt Service. Mails will be replied within 24 hours We work 6 days a week. ★Return Policy All mails will be replied to within 24 hours except on weekend and holidays. Every item is manufactured under Strict Quality-Assurance Guidelines. If you are dissatisfied for any reason, please return the product to us, and we'll refund your money(not including shipping fees). Please ensure that return items are not used. Return items must be Posted within 7 days of receipt. Please inform us via email before posting your return package. ★PAYMENT •We accept PayPal only. •We only ship item to your PayPal verified address. •Payment must be received within 3 Days from the date of purchase. •Please leave note in PayPal when making the payment if you have any special request (colors/size). Orders will be processed instantly and dispatched in same day normally, so we do NOT accept any Email/Message note before or after you place orders. ★Import tax : We will dispatch the item as SAMPLE or GIFT , label the total amount on the custom declare invoice . Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to buying. Engineered for professional eBay sellers!
