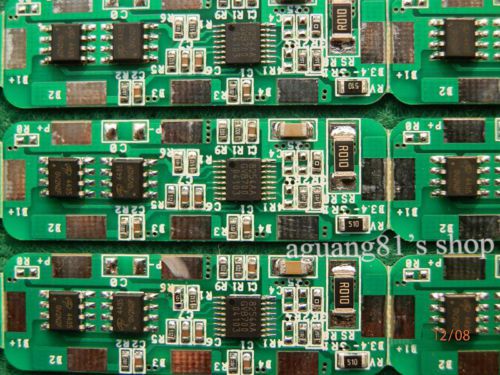

4A-5A PCB BMS Protection Board for 4 Packs 18650 Li-ion lithium Battery Cell 4S, US $4.59 – Picture 0

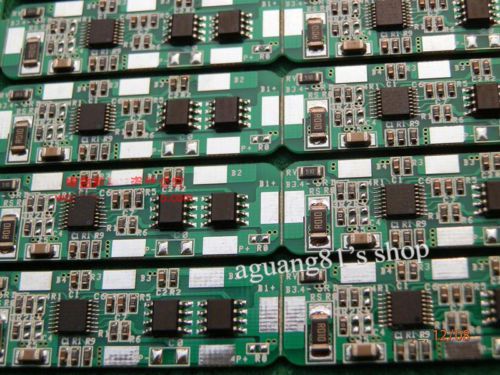

4A-5A PCB BMS Protection Board for 4 Packs 18650 Li-ion lithium Battery Cell 4S, US $4.59 – Picture 1

4A-5A PCB BMS Protection Board for 4 Packs 18650 Li-ion lithium Battery Cell 4S, US $4.59 – Picture 2

4a-5a Pcb Bms Protection Board For 4 Packs 18650 Li-ion Lithium Battery Cell 4s

US $4.59

HONG KONG, Hong Kong
Mar 5th

Open on mobile:
QR code

Welcome to my ebay store! if the goods are good, remember next time. thank you. Product Detail Description: 100% Brand New and High Quality Note: If the correct welding, testing the output of non-output, use other ways to activate charging about protection board! Warm reminder: If you need " 3packs 18650 lithium battery 10.8V 11.1V 12V 12.6V ", please you buy in : http://www.ebay.com/itm/4A-5A-PCB-BMS-Protection-Board-for-3-Packs-18650-Li-ion-lithium-Battery-Cell-/181679944478?rd=1 Overview: Main IC uses the original "Ricoh" imported components. Overcharge, over discharge, over current, short circuit protection, for a variety of capacities in various shapes 3.7V lithium batteries. Japan Seiko protection IC, VISHAY, AOS, IR and other high-quality MOSFET, FR-4 plate low temperature coefficient, design, fine workmanship, testing and comprehensive. Compact, suitable for many of the requirements of highly integrated, low-cost applications to meet a wide range of performance requirements to ensure the absolute safety and reliability of the battery pack. The protection board device description: Components for Japan's Seiko S-8254AAG protection chip; Genuine Bandai America's AO4407 * 2pcs; protect the chip as well as Ricoh R5431 series. Lithium battery protection board attributes: Model: HH-P3-10.8 Dimensions: 48 * 15 * 1.0mm Charging voltage range: 4.25-4.35v ± 0.05v Over-discharge voltage range: 2.3-3.0v ± 0.05v Working temperature: -40 --- + 50 °C Storage conditions: -40-- + 80 °C Maximum operating current: 4-5A The maximum instantaneous current: 6-7A Quiescent Current: less than 6uA Resistance: less than 45m? Effective life: more than 50,000 hours Short circuit protection: protect, need to be recharged recovery Suitable for: 4packs 18650 lithium battery 14.8V 16.8V Main functions and features: over charge protection, over-discharge protection, short circuit protection, overcurrent protection. The protective plate using Japan's Ricoh rechargeable lithium iron phosphate battery protection IC; 1) high-accuracy voltage detection circuit; 2) terminal of the charger using high voltage devices; 3) Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit); 4) MOS transistor can be controlled by a battery charge and discharge; 5) low standby current consumption. Function and Notice: 1, the lithium battery with protection board according to the wiring diagram connection, when the battery voltage is overcharge and over-discharge voltage between the voltage, and P +, P- charging 1 second, P + and P- output voltage of the battery voltage. 2, the battery charge function: between P + and P- plus charger to charge the battery, the battery voltage charge to overcharge detection voltage (4.25 ± 0.025V), the protection circuit to cut off the charging path, to achieve overcharge protection. 3, Battery over-discharge protection: in between the P + and P- connected load to the battery discharge when the battery voltage drops to over-discharge voltage (2.7 ± 0.05V), the protection circuit, shut off the discharge path to achieve the over-discharge protection. 4, Short circuit protection: When the P + and P- short circuit protection circuit will act quickly in 5-50uS, cut off access, short-circuit protection. 5, Overcurrent protection function: When the V- terminal voltage of (0.15 ± 0.02V), the protection circuit will act quickly in 6.7-13.9ms, cut off access, overcurrent protection. Package included: 1 x 18650 PCB BMS Protection Board Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 25-55 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	4S/packs
Suitable for	4packs 18650 lithium battery 14.8V 16.8V
Current	4A-5A
max instantaneous current:	6-7A
Type	4A-5A PCB BMS Protection Board
