4a-5a Pcb Bms Protection Board For 4 Packs 18650 Li-ion Lithium Battery Cell 4s

C $5.19

HK, Hong Kong
Jun 9th

Open on mobile:
QR code

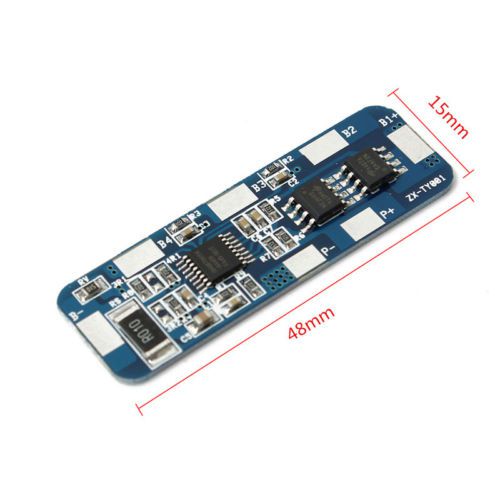

Description Description: Model: HH-P3-10.8 Charging voltage range: 4.25-4.35v ± 0.05v Dimensions: 48 * 15 * 1.0mm Over-discharge voltage range: 2.3-3.0v ± 0.05v Maximum operating current: 4-5A Operating temperature: -40 ~+ 50 °C The maximum instantaneous current: 6-7A Storage conditions: -40-- + 80 °C Quiescent Current: less than 6uA Effective life: more than 50,000 hours Resistance: less than 45mΩ Short circuit protection: protect, need to be recharged recovery Main functions and features: Over charge protection, over-discharge protection, short circuit protection, overcurrent protection. The protective plate using Japan's Ricoh rechargeable lithium iron phosphate battery protection IC; High-accuracy voltage detection circuit; Terminal of the charger using high voltage devices; Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit); MOS transistor can be controlled by a battery charge and discharge; Low standby current consumption. Function and Description: 1.the lithium battery with protection board according to wiring diagram, when the battery voltage is overcharge and over-discharge voltage between the voltage, and P +, P- 1 second after charging, P + and P- output voltage of the battery voltage. 2.Battery charge function: between P + and P- plus charger, battery charging, the battery voltage charge to overcharge detection voltage (4.25 ± 0.025V), the protection circuit to cut off the charging path, to achieve overcharge protection. 3.Battery over-discharge protection: in between the P + and P- connected load to the battery discharge when the battery voltage drops to over-discharge voltage (2.4 ± 0.08V), the protection circuit, shut off the discharge path to achieve the over-discharge protection. 4.Short circuit protection: When the P + and P- short circuit protection circuit will act quickly in 5-50uS, cut off access, short-circuit protection. Overcurrent protection function: When the V- terminal voltage of (0.15 ± 0.02V), the protection circuit will act quickly in 6.7-13.9ms, cut off access, overcurrent protection. Note: If the correct welding, testing the output of non-output, use other ways to activate charging about protection board! Package Included: 1x 18650 Li-ion lithium Battery Cell Detail Image Similar Items Payment 1.We accept PayPal only. 2.All major credit cards are accepted through secure payment processor PayPal. 3.Payment must be received within 7 business days of auction closing. 4.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping 1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. 2.Items will be shipped within 1-3 business day when we received payment. 3.Delivery time depends on destination and other factors; 4.International buyers please note: a.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer’s responsibility. We will try our best to reduce the risk of the custom duties. b.Please check with your country's customs office to determine what these additional costs will be prior to buying. On 19-Aug-15 at 05:06:48 EDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
MPN	Does Not Apply
