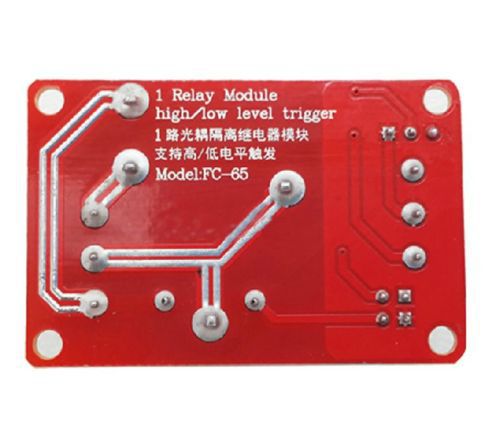

5* 5V 30A 1-Channel Relay Module+Optocoupler H/L Level Triger for Arduino 5MA, US $14.89 – Picture 0

5* 5V 30A 1-Channel Relay Module+Optocoupler H/L Level Triger for Arduino 5MA, US $14.89 – Picture 1

5* 5v 30a 1-channel Relay Module+optocoupler H/l Level Triger For Arduino 5ma

US $14.89

China, China
Jan 29th

Open on mobile:
QR code

1-Channel Relay Module+Optocoupler H/L Level Description Description: Technical parameters: Voltage version:5V The static current:5mA Working current:190mA Trigger current:2-4mA Module description: 1. 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A; 2. Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA; 3. Module can be set high level or low level trigger by the jumper; 4. Power indicator light (green), relay status indicator light (red); 5. Module Size:50mm*33mm*24mm; Module interface specifications: 1. DC+ : DC power supply positive pole 2. DC- :DC power supply negative pole 3. IN : signal triggering pin 4. JD+ : relay control voltage positive 5. JD- : relay control voltage negative 6. DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal 7. High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger 8. Normally closed pin (NC) : relay normally closed pin 9. Common pin (COM) : relay common pin 10. Normally opened pin (NO) : relay normally opened pin Packing List: 5PCS New 5V 30A 1-Channel Relay Module+Optocoupler H/L Level Triger for Arduino Mega Payment 1.We accept Paypal only. 2.Please confirm your ebay shipping address is exact after payment. 3.If your purchased is more than £30.00, please offer your phone number with shipping address. Delivery details 1.All item will be shipped by Airmail post within 1 business days. It takes approximately 15-25 days (USA ,CA,AU,UK,DE).other country 15-35 days. 2.Express by EMS ,it must add 25 USD shipping fee, it takes 5-10 workdays for delivery.If you need other Epxress(DHL,Fedex.UPS etc.),please contact us to talk about shipping fee. 3.Once you purchase, please DONOT leave negative, neutral feedback or open any case if you have not received item in 30 days, because we have mentioned the shipping time repeatedly. Contact us ???? 2 1.We offer retail and wholesale services. We can provide products in accordance with your requirements. If you have any questions or something to consult, please send us ebay message. 2.All messages will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your message and we will reply to you as soon as possible. 3.Our aim is to provide Top Level Customer Service, Business hours are 9am to 6pm Beijing time (+8 GMT), Monday to Friday. Engineered for professional eBay sellers!
