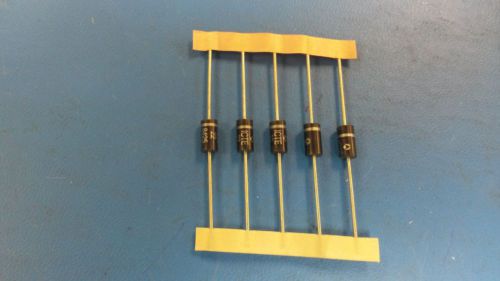

(5 Pcs) Icte22 Thopmson Csf Tvs Diodes - Transient Voltage Suppressors

US $5.00

Granbury, Texas, United States
Jan 29th

Open on mobile:
QR code

THIS LISTING IS FOR (5 PCS) OF ICTE22 BY THOMPSON CSF TVS Diodes - Transient Voltage Suppressors The ICTE/MPTE series 1500 W transient suppressors are designed specifically for protection of CMOS, NMOS, BiMOS, and other integrated circuits available today for TTL, DTL, ECL, RTL, and linear functions. This series offers the lowest clamping voltages. FEATURES • Stand-off voltage range 5 to 45 Volts • Uni-directional and Bi-directional • Glass passivated junction • Very low clamping voltages • 100% surge tested MAXIMUM RATING • Peak Pulse Power (Ppk): 1500 Watts (10 x 1000?s) @25°C (see diagram on page 3 for wave form) • 5 watt steady state • Response time: 1 x 10-12 seconds (theoretical) • Forward surge rating 200 Amps, 8.3ms half sine wave, (unidirectional devices only) • Operating & storage temperature: -55°C to +150°C MECHANICAL CHARACTERISTICS • Case: DO-201AD: Molded plastic over glass passivated junction • Terminals: Axial leads, solderable per MIL-STD-202 Method 208 • Solderable leads = 230°C for 10 seconds (1.59mm from case) • Marking: cathode band, (positive terminal, uni-directional devices only), device code, logo • Weight: 1.5 grammes (approx)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	THOMPSON CSF
Country/Region of Manufacture	United States
MPN	ICTE22
