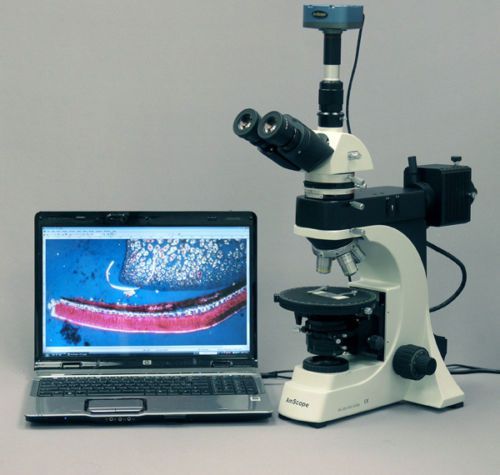

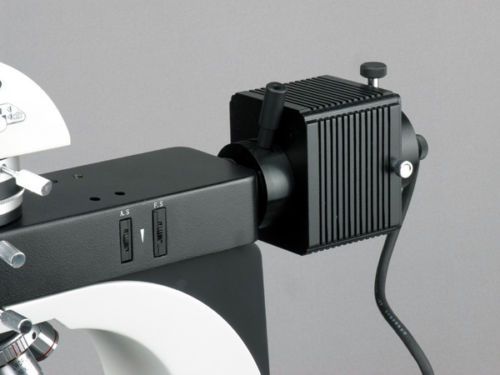

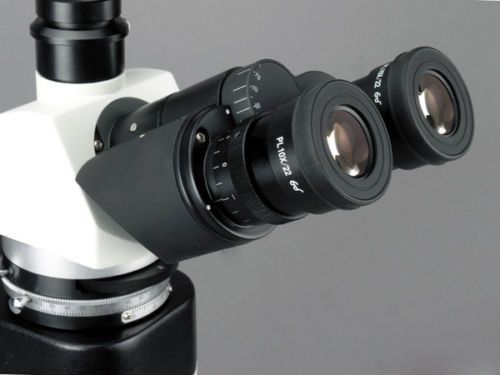

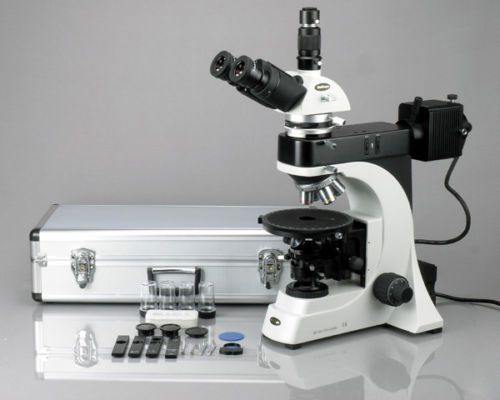

Key Features: Infinity Plan distressed polarizing optical system Seven extreme widefield magnification up to 1250X EPI (top) and transmitted Kohler halogen illumination Large rotatable ball bearing round stage with graduations Blue filter set, polarizer, iris and aperture included 10MP camera capturing still images and streaming live videos on PC screens Advanced editing & measuring software compatible with Windows XP/Vista/7/8, Mac OS X and Linux Brand Name: AmScope Model No: PZ600TC-10MT This advanced trinocular polarizing microscope comes with an extreme widefield distressed infinity Plan optical system and a 10MP USB2.0 digital camera. It has a 30W halogen Kohler transmitted light and a 50W EPI reflected halogen illuminator with blue filter set, polarizer, iris and aperture. The trinocular head inclines at 30-degree and is 360-degree rotatable. The microscope offers seven magnification settings, 50X, 100X, 125X, 200X, 250X, 500X & 1250X and co-axial coarse and fine focusing system. The digital camera captures microscope still images and streams live video on your PC screens. It comes with a built-in reduction lens, user-friendly software, and adapters. The camera offers 10MP high resolution and is compatible with Windows XP/Vista/7/8, Mac OS X and Linux. With life-time free upgrading, the multi-functional user-friendly software allows you to preview live images, record videos, capture still pictures, edit captures, or save them in BMP, TIFF, JPG, PICT, PTL or other formats very easily, as well as conduct length, angle, area, and other measurements. This is a perfect microscopy system for mineral applications. It is an ideal instrument for those in mineralogy and/or geology areas. This microscope is brand new in original box. Its retail value is more than $25,500. Features : An advanced high quality EPI infinity Plan polarizing microscope with 10MP USB2.0 camera Perfect for mineralogy and geology! Infinity corrected Plan distressed objectives for super quality images 10MP high quality color digital camera capturing still images and streaming live video on PC screens Saving still images in BMP, TIFF, JPG, PICT, PTL and other formats User-friendly editing and measuring software compatible with Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up 360-degree rotatable stage with locking control Kohler illumination system with swing type achromatic condenser Built-in focusable Bertrand lens on rotatable disc with centering controls Built-in analyzer with capability for removal from optical path 30-degree inclined 360-degree rotatable sliding trinocular head Seven magnification settings 50X, 100X, 125X, 200X, 250X, 500X & 1250X PL high-eyepoint eyepieces included Large round stage with stain resistant finish Photo/video capability with 23mm universal/standard photo port Full optical glass elements Precise ground glass lens All metal mechanical parts Coaxial coarse and fine focusing Dual focusing control knobs Focusing tension control mechanism Adjustable interpupillary distance Adjustable diopters on both eye tubes Solid metal frame construction with stain resistant enamel finish Super widefield 30mm eyepieces High resolution crystal clear images Color corrected infinity optical system Graduated in 1 degree for 90 degrees 360-degree rotatable polarizer able to be removed from optical path and lock positions Brightfield/polarizing selectable knob for easily changing light from brightfield to polarization Extremely widefield high eye-point 10x eyepieces with 22mm field of view (PL 10x/22mm) High-eyepoint optics for an easy observation including eyeglass wearers Four DIN strain-free Plan Achromatic infinity corrected objectives included: 5x, 10x, 20x (Spring), 50x (Spring) Backward quadruple nosepiece Objective centering screws on nosepiece for precise alignment 30-degree inclined 360-degree rotatable trinocular head 50mm - 80mm adjustable interpupillary distance (the distance between two eyes) Oculars with adjustable diopter Sub-stage condenser on swing with alignment controls and iris diaphragm Rack & pinion steel gears for easy and better condenser movement Blue filter, 45mm, for base illuminator 160mm (in diameter) large 360-degree rotatable stage with ball bearing and graduation marked every 1 degree Stage rotation locking screw Tension-adjustable coarse focusing Adjustable locking ring stopper to limit coarse range to protect slides 30W intensity-variable halogen transmitted illumination Kohler illumination with focusable field diaphragm for better and efficient illumination Spare bulb, fuse, immersion oil, and dust cover included Manufactured under ISO 9001 quality control standards Excellent FIVE (5) year factory warranty Specifications: Eyepieces: PL10X and WH25X flat-field eyepieces with eye-guard Objectives: infinity Plan distressed objectives: 5X, 10X, 20XS and 50XS Head: 30-degree inclined Gemel type of trinocular head Midst Head: build-in analyzer and Bertrand lens; external diameter 80mm; built-in analyzer; can shift out the optical way; 90 degree rotatable, a dose value of vernier 6′ Compensator: λ plate (λ ?? 18mm, first-order red, light path aberration: 551nm); λ / 4 plate (λ ?? 18mm, light path aberration: 147.3nm); Quartzes chock (12x28mm, I-IV) Nosepiece: quadruple Focusing System: coaxial coarse & fine controls with tension adjustment and up-moving stopper Stage Focusing Range (up/down): 25mm; Fine focusing division: 0.002mm Stage Rotation Range (circular): 360-degree rotatable circular worktable, a dose value of mark 1, a dose value of vernier 6' Condenser: NA1.2/0.22 swing type achromatic condenser Polarizer: 360 degree rotatable vibration; can shift out the optical way Color Filter: blue Camera/Video Port: 23mm universal/standard photo port Transmission Illumination: Kohler illuminator systems, 30W/6V brightness-adjustable halogen lamp. Reflection Illumination: 50W/12V halogen reflected illuminator with blue filter set, polarizer, iris and aperture. Power Supply: 90V - 240V fluctuate of voltage Packing List: One Extreme Widefield Infinity Plan Trinocular Microscope Siedentopf Head One Microscope Body Frame with Round Stage and EPI & Transmitted Illumination One Pair of Extreme Widefield PL10X Plan Eyepieces One Pair of Extreme Widefield WH25X Eyepieces Four Infinity Plan Distressed Objectives: 5X, 10X, 20XS and 50XS One Set of Blue Filter, Polarizer, Iris and Aperture One Kohler Condenser One 10MP USB2.0 Microscope Camera Two Extra Mounting Adapters: 30mm and 30.5mm One CD with Software, Driver and Instructions Two Spare Halogen Bulbs One Power Cord One Dust Cover User's Manual Shipping Weight: 50 lbs Package: 2 (28 + 22) Shipping & Handling: FREE Shipping to Contiguous USA (the lower 48 States) International Shipping and Handling Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application
