5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module, US $8.99 – Picture 0

5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module, US $8.99 – Picture 1

5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module, US $8.99 – Picture 2

5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module, US $8.99 – Picture 3

5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module, US $8.99 – Picture 4

5a Cc Cv Buck Converter Led Drive Usb Charger Power/current/voltage Led Module

US $8.99

GuangZhou, China
Jun 9th

Open on mobile:
QR code

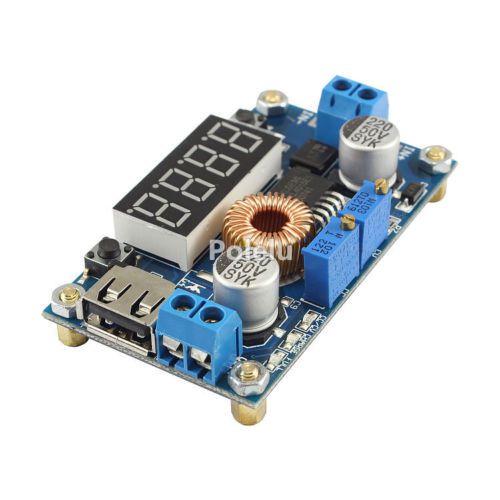

5A CC CV Buck Converter LED Drive USB Charger Power/Current/Voltage LED Module Description 1.Input voltage:5-36VDC 2.Output voltage:1.25-32VDC adjustable 3.Output current: 0-5A adjustable 4.Output power: 75W(MAX) 5.Operating temperature:-40~+85℃ 6.Frequency:180KHz 7.High efficiency up to 96% 8.Short circuit protection:Yes 9.Overtemperature protection: Yes(automatically shut off the output after overtemperature) 10.Input reverse polarity protection: None (if required, high current diode in series with the input). 11.Installation: four 3mm screws 12.Connection: terminals or solder terminals, V-IN is the input, V-OUT output 13.Module dimensions: length 68.2mm width 38.8mm height 15mm 14.Weight: 35g Note: 1.When you use the product, the module input and output to be isolated from ground. 2.The output of block string has a current sampling resistor, there will be 0 ~ 0.2V voltage drop after connected to the load, it is normal. 3.This module exceeds 3A, 35W in use,please enhance heat dissipation. 4.Some customers report: “The module can not adjust the output voltage is always equal to the input voltage.” When you encounter this problem, please counterclockwise rotation of the “voltage potentiometer” 10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V. Applications: 1.Use as a step-down module with overcurrent protection Usage: (1) Adjust the right button so that “OUT” LED lighted, Digital meter shows the value of output voltage ,adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A) (3) Connected to the load. 2.Use as a battery charger Module without constant function can not be used to charge the battery, since the power consumption end of the battery and charger have big voltage difference,resulting in charging current is too large, causing cell damage, so start to the battery using a constant current charging, when charging to a certain extent then automaticly switch back to constant voltage charging. Usage: (1) Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA) (2)Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V) (3)Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the “current potentiometer” so that the output current reaches a predetermined Charging current value. (4)Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged) (5)Connected to the battery charge. (1,2,3,4 steps as: Output is unloaded, do not connect the battery) 3.Use as a LED constant current driver module Usage: (1) Determine the work you need to drive the LED current and the maximum operating voltage; (2) No-load condition, the digital meter is adjusted to [displays the output voltage] interface, adjust the "constant potentiometer" so that the output voltage reaches the LED operating voltage; (3) Digital table is adjusted to show the output current,direct shorted circuit the module output (find thick wire shorted circuit output terminals), then adjust the "constant current potentiometer" to make digital sheet LED current value reaches the preset operating current; (4) Connected to the LED, the test machine. (Step 2, 3 :the input is connected supply power and output load is not connected LED lights) Voltmeter and ammeter calibration method: 1.When onboard voltmeter display the output voltage, long press on the right button for two seconds then release,we can see voltmeter and output voltage indicator "OUT" synchronous flashing, this time into the output voltage regulation mode.Similarly,when the voltmeter shows the input voltage, long press on the right button for two seconds then release, voltmeter and input voltage LEDs "IN" synchronous flashing, this time into the input voltage adjustment mode. 2.Touch the right side of the button, the voltage(current) rises one unit, touch the left button, a voltage(current) reduce one unit; because the voltage value of a unit less than 0.1V, so you need to press 1-5 times in a row to see the voltmeter change of 0.1V, specific continuous button several times depending on the voltage value currently displayed, the higher the voltage the current display, the fewer the number of press; 3. When the voltage(current) is adjusted, press the right side button for two seconds then release, this time to exit voltage calibration mode, all parameters set to automatically power-down save. Note: This function is used to calibrate the voltage(current) display accuracy; is not used to adjust the output of the voltage(current) value. This feature is designed to meet your higher accuracy requirements of the design, you only need to calibrate one time,can be obtained a precise value over the entire range, ease of use. Package included: 1 x 5A CC CV Buck LED Display Module Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	China
Model	Voltage step-down converter
Input voltage	DC5V-36V
Brand	Generic
Output voltage	DC1.25-32V
MPN	Does not apply
UPC	Does not apply
