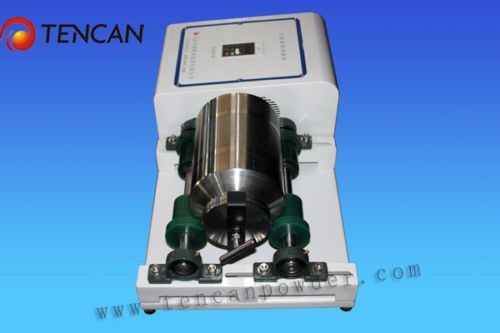

5l Roll Lab Ball Mill With One Working Stainless Steel Jars(1l-15l Available)

US $1,452.00

??, ???, China
Jan 30th

Open on mobile:
QR code

Overview Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc. Technical Parameter Parameter of Lab Roll Mill TYPE QM-5 QM-15 DIMENSION 730*415*260mm 840*435*270mm MOTOR POWER 0.37kw 0.75kw SPECIFICATION OF FREQUENCY CONVERTER 0.4kw/220v 0.75kw/220v ROTATION SPEED RANGE 50-570r/min 60-570r/min ADJUSTED SPACE BETWEEN ROLLERS(mm) 250mm 270mm SPACE BETWEEN STATIONS 260mm 340mm MAX DUTY LOAD PER POT 35KG 80KG VOLUMN OF MATCHED POT 0.5-5L 10-15L Features 1. Compact structure, easy operation 2. High efficiency and uniform granularity 3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers. 4. It is convenient to change pots and suitable for both wet and dry grinding. Accessory: Stainless Steel Pot and Stainless Steel Balls Alumina Ceramic Pot and Alumina Balls Agate Balls Roller Ball Mill Packaging & Delivery Packaging Details: Plywood case + Foam Delivery Detail: Within 3-7 working days after full payment Certificates Quality Warranty & Service Promise Product Quality Warranty: One-year warranty period shall be provided to any client who buys our products and related accessories. The following promises are valid within the warranty period which is calculated from time or date when the client or consumer takes delivery of machine, opens case, inspects machine and receives with signature. We promise to guarantee free replacement within one month, and guarantee free repair within one year. Client may enjoy free replacement within one month if any of following occurs: 1) The machine is broken in course of transportation; 2) Motor and frequency converter are burnt out; 3) The key part or main disk of the machine is seriously in failure. We shall promise to provide most favorable policy and best services after expiration of quality warranty period. After-sale Services Promises: 1) We shall make prompt response to any problem about the machine within 24 hours if you have. 2) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide trouble-shooting solutions until the fault is completely eliminated. 3) If the machine is found any fault or problem, please do not hesitate to notify us the details about faults, caused reasons and status. We shall do our great efforts to solve according to following terms: a. Common faults: Common faults refer to failure of non critical parts or improper configuration that effects partial operation or leads to Inconvenience of machine operation. We shall solve such problems by email or posting parts by courier. b.Serious faults: Serious faults refer to failure of key parts or improper configuration that influence running or operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then, shall send replacement of parts by courier, until solve the problems. Courier freight shall be for our account within quality warranty period.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	TENCAN
Country/Region of Manufacture	China
Model	QM-5L
