5pcs 5a Led Drive Power Supply Module Step Down Cvcc 75w Battery Charger

US $18.56

Shenzhen, China
Jan 29th

Open on mobile:
QR code

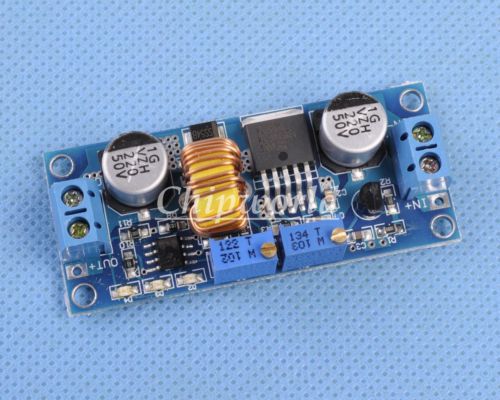

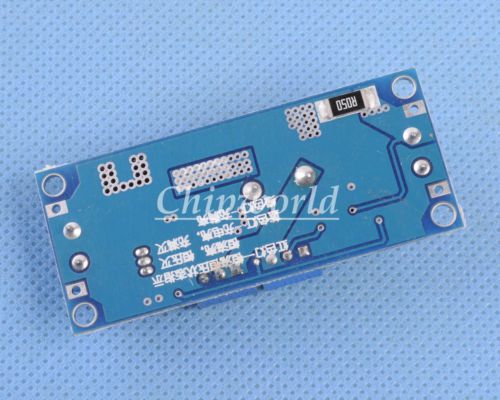

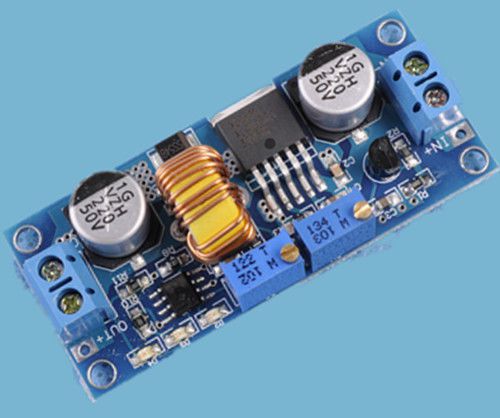

Product Name: 5PCS 5A LED Drive Lithium ion Battery Power Supply Module Step Down CVCC More Items In Our Store,Click Here! SKU: 3455*5 Parsts No. : Package: Brand: Quantity: 5 When you use the product, the module inputs and outputs to be isolated from ground! Specifications 1?Input voltage range:6~38VDC(Note:input voltage not exceeding 38V) 2?Output voltage range:1.25-36VDC adjustable 3?Output current: 0-5A 4?Output power: 75W 5?High efficiency up to 96% 6?Built in thermal shutdown function 7?Built in current limit function 8?Built in output short protection function 9?Input reverse polarity protection: None (if required, high current diode in series with the input). 10?L x W x H =61.7*26.2*15mm 11?Weight: 20g Application 1?Use as a step-down modules with overcurrent protection capabilities Usage: (1) adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A) (3) Connected to the load. 2?Use as a battery charger Usage: (1). Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA) (2). Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V) (3). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined Charging current value. (4). Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged) (5).connected to the battery charge. (1,2,3,4 steps as: Output is unloaded, do not connect the battery) 3?Use as a LED constant current driver module Usage: (1). adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2). use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined LED operating current. (3). Connect LED, work. (1,2 steps as: Output is unloaded, do not connect LED) Maybe you request NEW Universal Double Side Board PCB 12x18cm 1.6mm 2.54mm DIY Prototype Paper PCB NEW 5pcs Universal Double Side Board PCB 5x7cm 1.6mm DIY Prototype Paper PCB NEW 5pcs Universal Double Side Board PCB 4x6cm 1.6mm DIY Prototype Paper PCB NEW Universal Double Side Board PCB 9x15cm 1.6mm 2.54mm DIY Prototype Paper PCB NEW 5pcs Universal Double Side Board PCB 7x9cm 1.6mm 2.54mm DIY Prototype Paper $ 4.7 + free shipping $ 3.00 + free shipping $ 2.93 + free shipping $3.00 +free shipping $ 4.5 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics On Mar-21-14 at 02:09:16 PDT, seller added the following information: <> <>
