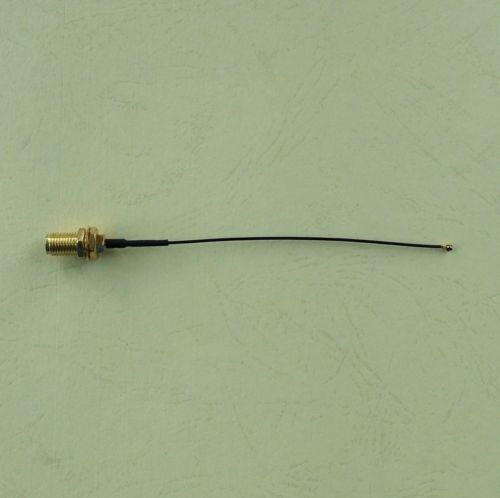

5pcs Ipex Mhf4 Cable Assemblies MHF4 plug male to RP-SMA jack female 0.81 Cable, US $10.00 – Picture 0

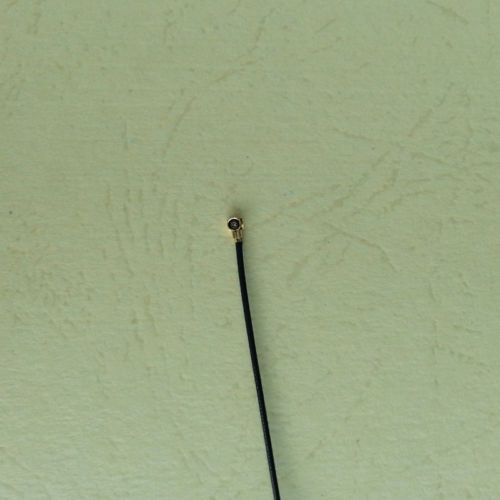

5pcs Ipex Mhf4 Cable Assemblies MHF4 plug male to RP-SMA jack female 0.81 Cable, US $10.00 – Picture 1

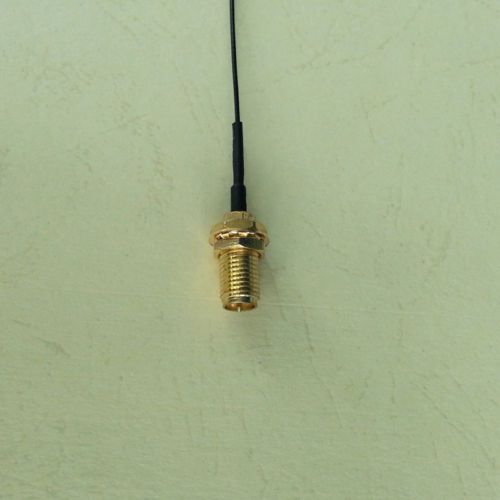

5pcs Ipex Mhf4 Cable Assemblies MHF4 plug male to RP-SMA jack female 0.81 Cable, US $10.00 – Picture 2

5pcs Ipex Mhf4 Cable Assemblies MHF4 plug male to RP-SMA jack female 0.81 Cable, US $10.00 – Picture 3

5pcs Ipex Mhf4 Cable Assemblies Mhf4 Plug Male To Rp-sma Jack Female 0.81 Cable

US $10.00

Shenzhen, default, China
Jan 29th

Open on mobile:
QR code

Description: I-PEX MHF4 Cable Assemblies viasma item #:: 22010303 Connector type left: I-PEX MHF4 plug (male) Connector type right: Stright RP-SMA jack (female) Cable: 0.81 mm Variations of ruggedisation: N/A Frequency: DC to 6 GHz Nominal impedance: 50 Ohm Cable Assembly Length: 100 mm Ordering Information 5 pieces per lot, if you need to order more than 25 pieces, please contact us. Contact us for pricing of quantities 50 or greater. If you need other Length, please contact us. Shipping Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. We will ship items within 2 business days via China Post Air Mail or ePacket (for USA) with Tracking Number after received the payment. If you like other shipping Services, please contact us. IPEX Connector (IPX Connector) has designed several series MHF connectors which provide alternative of Hirose U.FL connector, Hirose W.FL connector, and Murata HSC connector. IPEX Connector is devoted to design and manufacture these ultra small RF connectors as low profile as possible by micro precise stamping techniques. IPEX/ IPX ultra small RF connector include MHF, MHF II/ MHF2, MHF III/ MHF3, and MHF IV/ MHF4. IPEX plug will be terminated with mini coaxial cables like 1.13mm, 1.32mm, 1.37mm, 0.81mm, 1.48mm and RG178 to be RF cable assembly. IPEX female connectors are surface-mounted and soldered directly to the printed circuit board with 50 ohm impedance. IPEX cable assemblies can transmit single to connect GSM modular and GSM antennas, GPS modular and GPS antenna, WLAN modular and WLAN antenna. Viasma has full series of IPEX connector, and can customize every IPEX Connector cable assembly with SMA, SMB, MCX, MMCX, TNC, N connector in 10 days with good quality. According UL FCC (part 15.203) regulations, wireless radio equipment with removable antenna must not have a standardized interface. This to avoid the connection of antenna equipment which is not WLAN approved. That means, the male connector is fitted with female centre contact and insulator, whereas the female side is fitted with male centre contact and insulator SMA male is inside screw with plug center SMA female is outside screw with hole center RP-SMA male is inside screw with hole center RP-SMA female is outside screw with plug center Should there be any queries and requirements, please don't hesitate to contact me.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	viasma
Connector type left	IPEX MHF4 plug (male)
Model	MHF4 / RP-SMA Cable Assemblies
Connector type right	Stright RP-SMA jack (female)
MPN	IPEX MHF4
Cable	0.81
Country/Region of Manufacture	China
