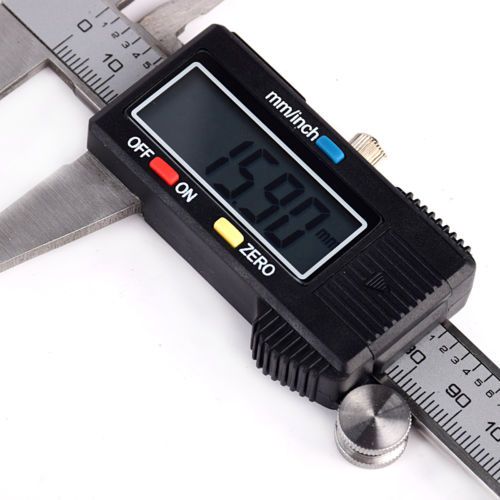

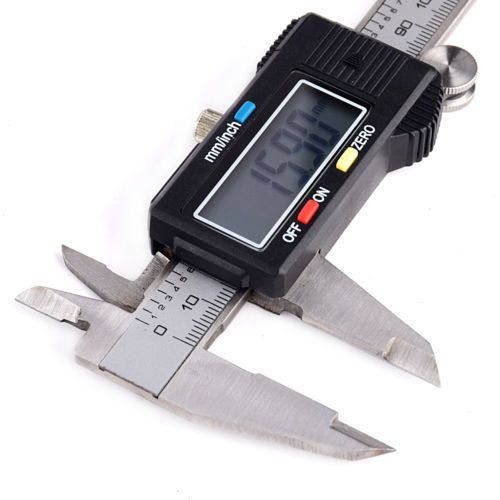

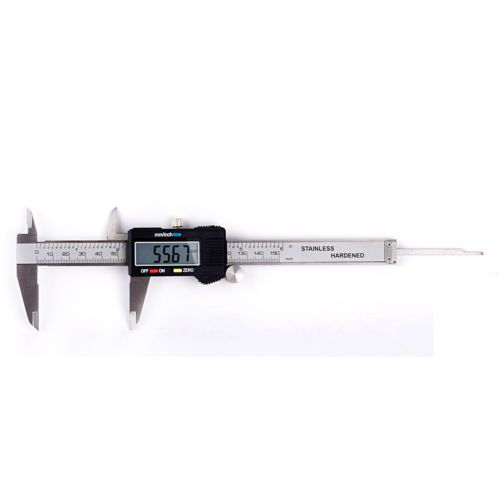

My Ebay DEDC Description Features: Easy read SUPER LARGE display Hardened stainless steel Precision lapping finish Range: 0-6" Accuracy: 0.001" Repeatability: 0.0005" Resolution: 0.0005"/0.01mm/1/128" FUNCTIONS: 1.Zero setting at any position. easy to take relative Measurements. 2.Metric/lnch system interchange at any position. 3.Special function: With data holding. fast display. fast tracing Maximum and Minimum value during measurements. conversion between relative and absolute measurement and tolerance zone setting. OPERATION: 1.Preparations: (1 ) Clean the surface of the protective sticker(please refer to the above-mentioned instructions)and all the measuring faces. (2) Loosen the locking screw and move the slider to check whether the LCD and all the buttons work properly. 2.Measurement: (1) Press On/Off button to switch on the power. (2) Press mm/ln button to select a desired unit system. (3) Move the slider to make two outside measuring faces touch gently.then press Zero button to set zero and you can start measuring. 3.Operatlon of Speclal functlon button: (1) MODE Button. (a) DATA HOLDING: When any of H.F.S or Mi'sh71lddes~'uatyted (tn the state of await/ng order). press IV lutton and H will be displayed. It shows value has been held unchanged namely HOLD function. lf it's difficult to read the value on the spot. press this button to hold the value. and then take the instrument out to read.After taking the value. press this button three times."H"will disappear and HOLD function will be canceled. The state of awaiting order is restored. In other state. press MODE button one or more times and the stata of awaiting order can be also restored. (b) FAST DISPLAY In the state of awaiting order, press MODE button to display H. press ZERO button to display F. The instrument is then in a state of f ast display. (c) TRACING M~NIMUM VALUE In the state of awaiting order. press MODE button twice to display S. then press ZERO button to display F and S simultaneously. The instrument is then in a state of tracing minimum value. (d) TRACING MAXIMUM VALUE In the state of awaiting order. press MODE button three times to display M. then press ZERO button to display F and M. The instrument is then in a state of tracing maximum value. (2)HOLD Button Press HOLD button to display H. The displayed value will be held unchanged, namely the HOLD function. lf it' s difficult to read on the spot, press this button to hold measured value and then take the instrument out to read. After taking the value, press this button and then H d/sappears. The instrument then turns into the state of normal measurement. (3) ABS Button----Button for relative zero point and absolute value interchange. The digital caliper will be in a state of absolute measurement when power is on. Press ABS button and then the digital caliper is in a state of relative measurement with the value being zero and "lNG"being disptayed. namely. setting relative zero point and being in a state of relative measurements. Press ABS button for a second time to be in a state of absolute measurement again. keeping the original zero position unchanged. (4)TOL Button- --Button for setting tolerance range Make sure the correct origin has been set and no triangle mark appears. then press TOL button.△ marks is displayed; Move the slider to display its maximum value; press TOL button again.▽ mark is displayed; move the slider to display its minimum value;press TOL for the last time. The triangle mark disappears and tolerance range setting has been finished. If the workpiece being measured is bigger than the maxtmum value. the △mark twinkles. it shows it's beyond the maximum value. If the workpiece being measured is smaller than the minimum value. the ▽ mark twinkles. It shows it's beyond the minimum value. If the workpiece is within the tolerance range. OK mark twinkles It shows the workpiece is up to standard. BATTERY REPLACEMENT: Abnormal display (digits flashing or even no display)shows a flat battery. To replace the battery. just push the battery cover as the arrow directs and rep~ace it with a new one. Please note the positive side of the battery must face out. If the battery bought from a market doesn t work satisfactorily (The power may wear down because of its long-term storage or the batterys automatic discharge etc.).please do not hesitate to contact the supplier. Attention: The vernier caliper with a data interface, but it can't connect your computer directly to input data. Package include: 1 x LCD digital caliper Preview Click and zoom-in the top pictures for HD resolution details. Store Policy Top 5 Reasons To Shop With Newcomdigi 1 latest items are up-to-date from time to time 2 reasonable price 3 high reputation 4 safety sale and delivery management 5 product quality guarantee Store Policies We checking all items before sending out, if you received an broken / defective item, please take photos and send to us immediately. We only accept those cases reported within 7 days. Please keep all the package material , return items must be in good condition 1 to 1 replacement with same item. Buyer is responsible for all return shipping charges. We will responsible to pay the resend package. Shipping and insurance cost non-refundable. About us Our working schedule: (not include weekend sorry for delayed replay at weekend) UNITED STATES : PM 4:00~AM 4:00 FRANCE:AM 3:00~PM:3:00 UK: AM 2:00~PM:2:00 CANADA : PM 3:00~ AM:3:00 AUSTRALIA : AM 11:00~ PM:11:00 Shipping item will be shipped via Airmail unregistered! Approx shipping time will be 23-35 working days according to your address. Payment Methods PAYPAL (Secured Credit Card payment through) Buyers' responsibilities and obligations Due to EBAY charges higher fee for each transaction, please read our product description and goods return polices carefully, According to EBAY's policy, you have to make the payment transfer within 7 days after you bid our products. Otherwise, we would cancel this transaction and return the money to you. It will be affected your creditability. In order to receive your product on time, make sure you provide the correct shipping information. We are not responsible for the shipment on the wrong address. We don't accept price negotiation. All pictures are taken from real objective. Engineered for professional eBay sellers! Powered by SoldEazy
