6022bl Pc Digital Portable Oscilloscope Hantek Based Usb + Logic Analyzer 16 Chs

US $85.00

United States
Jan 29th

Open on mobile:
QR code

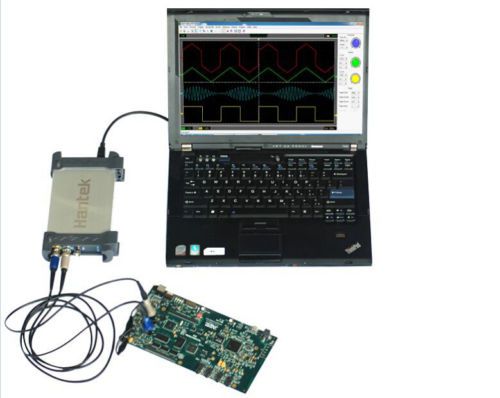

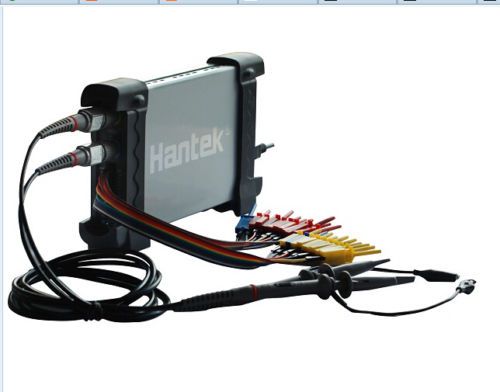

6022BL PC Digital Portable Oscilloscope Hantek Based USB + Logic Analyzer 16 CHs Logic Analyzer 16 CHs+Oscillos Hantek6022BL 20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument. Features Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance, be used easily on business. Dimensions (mm):205(L) x120(W) x35(H), be carried easily. High performance, 48MS/s real-time sampling, 20MHz bandwidth. 16Channels Logic Analyzer, 10MHz Bandwidth; Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA. 23 measurement functions, PASS/FAIL Check, be suitable for technical application. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT One computer can connect many DSO, extend channel easily. PID/VID Second Design instance. Function Picture: Model Hantek6022BEL Oscilloscope Features Bandwidth 20MHz Channel 2(Digital)+16(Logic) Sample Rate 48MSa/s Memory Depth 1M Rise Time 17.5ns Time Base Precision ±50ppm Time Base Range 4ns/div-1h/div (Step by1-2-4) Input Impendence 1M? 25pF Input Sensitivity 10mV/div~5V/div Vertical Resolution 8Bit Vertical Position Range 10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; 1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe DC Accuracy ±3% Bandwidth Limited 20MHz Trigger Type Edge, Alternative Trigger Source CH1, CH2, EXT, EXT/10 Math +,-,x,?,FFT, Invert Cursor Measurement Cross, Trace, Horizontal, Vertical Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle Logic Analyzer Features Channel 16 Max. Impendance 1M?(C=7.5pF) Max. Voltage 0V~5.5V Max. Sample 48M Bandwidth 10MHz Compatible Input TTL, LVTTL, CMOS Memory Depth 1M/CH General Features Power USB Port Demensions 200mm x100mm x 35mm Weight 0.3KG Standard Probe 2 x PP80 Accessaries: Payment We only accept payment through Paypal. Please make sure you have a valid PayPal account prior bidding. Please pay for your item within 5 days of the auction end time. Delivery details We use E-packet ,B-packet and E-express with tracking number! both are special shipping method Recommended by Ebay and Paypal. it takes 7-14days to Italy,Czech,Demark,Belgium,Portugal,Ireland,U.K, Norway,U.S.A,Canada,France,Spain,Russia,Brazil,Argentina.Australia, Isral,Germany,Netherland,Sweden,Japan,South Korea,Belarus,Ukrain,Singapore. if you are not in the countries above,we will use Hong kong airmail to ship.it takes 2-4weeks around! Tracking number is available. Return Policy If any item is defective upon receipt, please contact us for the return address. Return is accepted within 14 days after the buyer receiving the item. Returned item has to be in its original condition. Buyer is responsible for return shipping costs. After receiving the return we will make a replacement depends on our available stock, if not available, a refund will be issued. Custom Clearance we will not be responsible for your custom clearance and any tax cost! Feedback Please leave us 5 star Feedback,since we are serious at our business. Engineered for professional eBay sellers!

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“this is a returned item.because one of my clients found the item is not what he needs.the item is in LA,U.S.A.”
