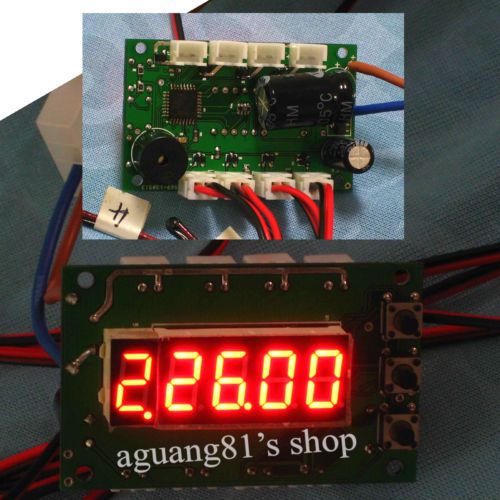

6v-24v Digital Thermostat 4 Way Pwm Dc Motor Fan Speed Control Controller Switch

US $880

Hong Kong, Hong Kong
Mar 3rd

Open on mobile:
QR code

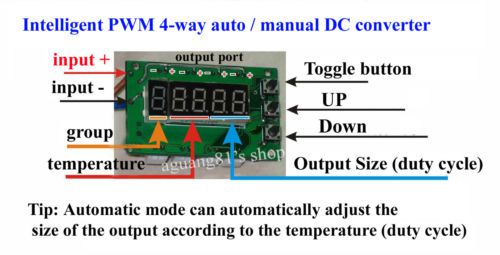

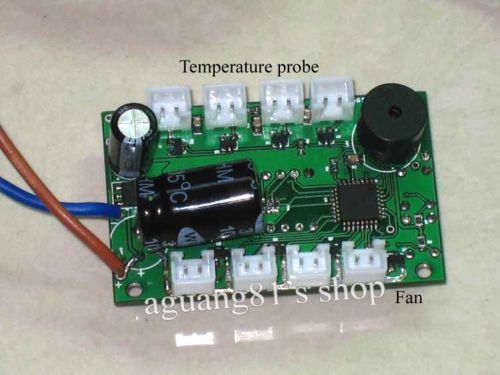

Welcome to my ebay store! You will find your favorite products. Pass by do not miss.thank you! Product Detail Description: 100% Brand New and High Quality Intelligent PWM 4-way automatic / manual DC Motor Fan Speed Control Regulator Controller Switch Test video: http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=7c70c4bd0e&auto_play=1 Features: Operating voltage : DC 5-25V Working current: 3A Four fully independent PWM outputs Four automatic / manual temperature control PWM control With display With a keyboard lock Temperature sensor disconnect circuit detection (alarm ,Screen display 10000) Over-temperature detection (alarm ,Screen flash) Low-power mode (automatically turns off the display) 4-channel temperature correction Operation Setting method: In run mode, press the toggle key two seconds, you can enter the settings (if required to unlock the keypad lock); Press the toggle button to change the setting options, press UP key to change the setting. Note: All settings can only be modified by increasing the bond, the largest single cycle to automatically jump to zero. L X.L.XXo : lowest temperature setting (reaches this temperature, the corresponding port output PWM wave began, the output size is determined by the value P0.XX) H X.H.XXo : highest temperature setting (reaches this temperature, the maximum value of the corresponding output port, which is straight, no modulation) P0 X.P0.XX : minimum temperature is reached, the minimum initial output value (recommended value of computer cooling fan 35) P1 X.P1-X : the corresponding port manual / automatic (0 manual; 1 automatic) P2 X.P2-X : Low power mode (0 for normal mode; 1 for low-power mode,Recommends high-temperature environment open (no key for 30 seconds will turn off the display)) P3 X.P3-X : keyboard lock (0 No ; 1 YES) P4 X.P4-X : Display mode (0 for multi-screen switching display; 1 for single-screen display) -- : Press the toggle button two seconds to return to running. Unlock the keyboard: Before pressing the power switch button does not release when display, then release then you unlock, if not the key 30 seconds will be locked again. Note: Due to the bare idea of insulation board, please, do not short circuit, particularly the output at no load, do not plug an extension cord, please complete and then energized wiring. TIP: When the program is set, taking into account the fan start-up problems, if set start value is too low, the fan does not start, so after each set, before you start, there will be direct access to the voltage 2s, and then go to the size of the user settings. (In the video, a user with a small lamp brightness to test the fan change, when testing lights appear bright burst 2s, that is, for this reason.) Package Included: 1 x PWM DC Motor Speed Control 4 x Temperature probe (per length 500mm) 4 x Fans extension cord (per length 300mm) Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 25-55 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Operating voltage	DC 5-25V
Channel	4 way
Working current	3A
Type	PWM Fan Speed Control Controller Switch
