7pc Panel Vu Meter Tn-73 0db=0.8vac Size=76x59x41mm & Led Lamp Nissei

US $165.00

Taipei county,, Taiwan, Taiwan
Jan 29th

Open on mobile:
QR code

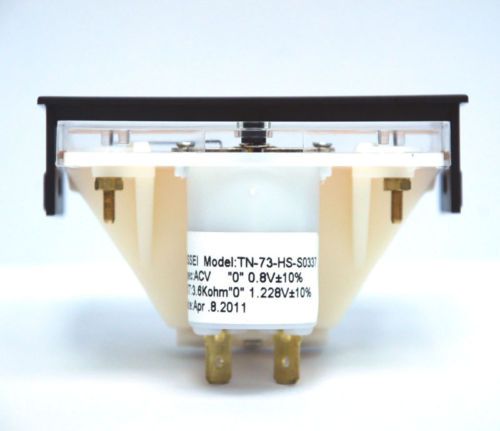

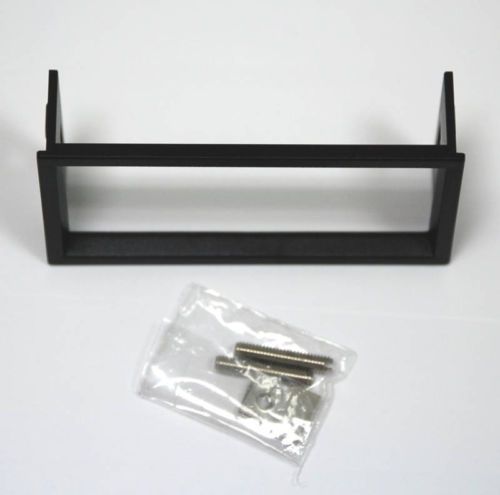

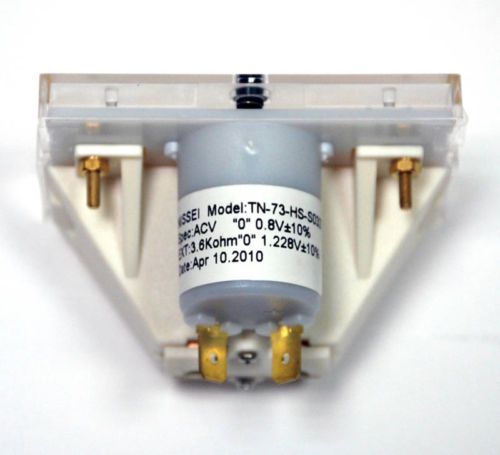

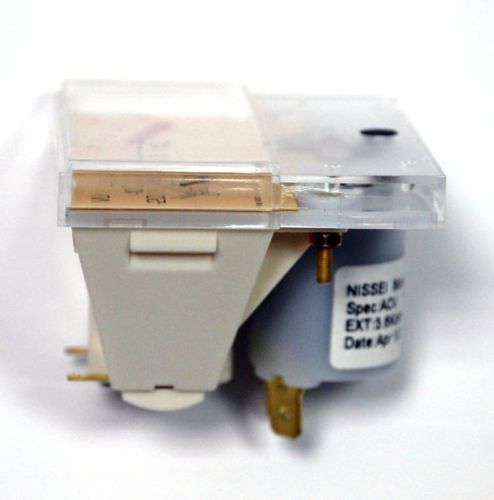

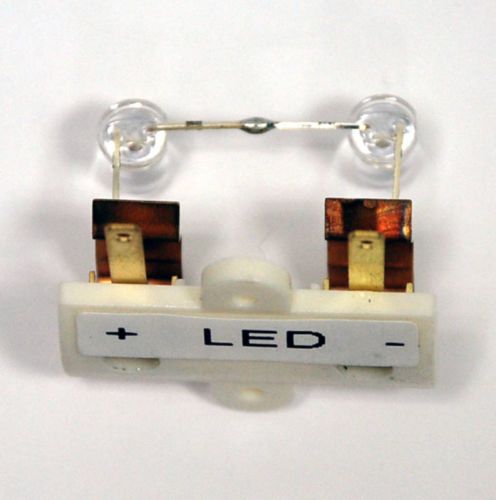

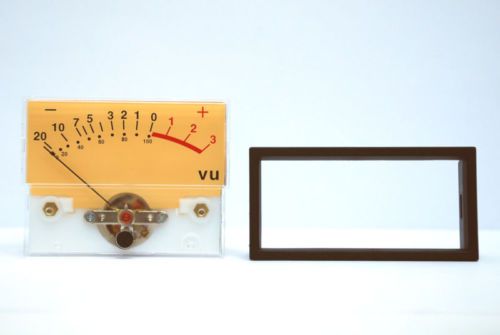

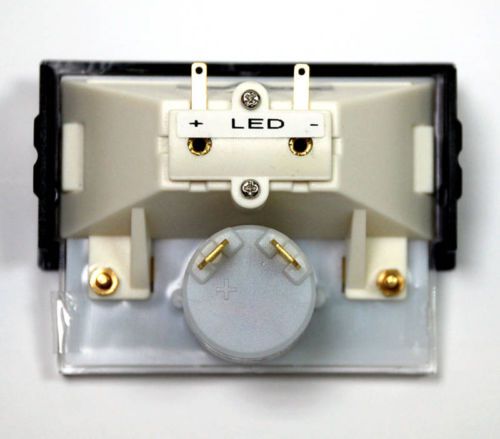

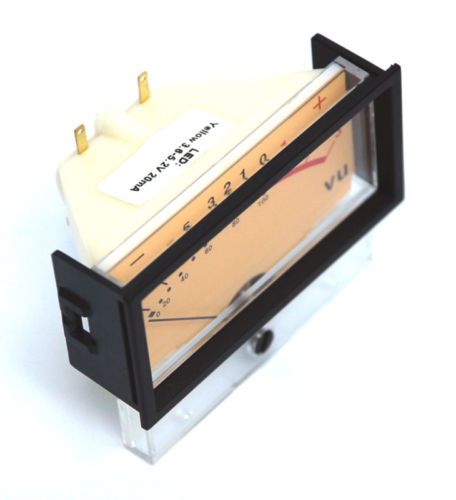

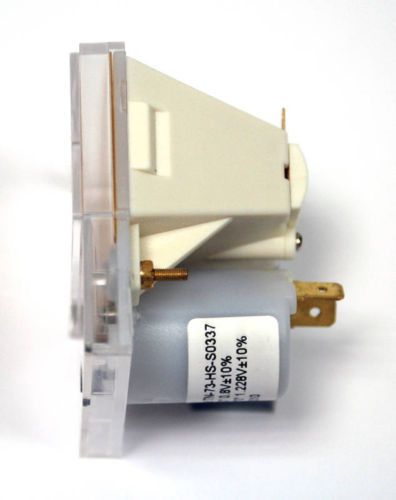

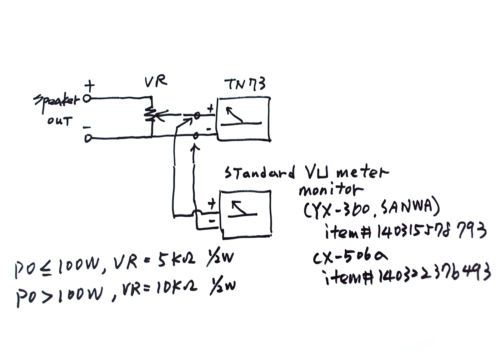

SquareTrade © AP6.0 Panel VU Meter Part No. TN-73 Professional Recording room dB : -20~+3dB (v,u) Complete set, directing use. no external resistor,diode required, 0dB=0.8Vrms,+/-10%(factory setting, calibalated) Base on dBu(dBv)=20log(E/0.775Vrms) or you can change to 0dB=1.228Vrms, but you need external a 1/2W 3.6K? resistor Sampling measure the Vu meter its input DC resistor by a DVM, and reading = 5.85K? LED Lamp : Yellow LED x2pcs ,20mAmax LED Lamp voltage : 3.6~5.2V(So,you need external resistor, to limit the current <=20mA) come with black plastic frame, screw Please open a hole <80.5x37.0mm, WxH> to fix the frame/VU meter on panel VU meter overall dimension : 76.0x59.0x41.0mm, WxHxD ( without frame ) View area : 73.5x32.5mm, WxH NISSEI co., Taiwan http://www.meterexpert.com/e/VU_63.htm Each bidding lot is for 7 pcs Net weight approx : 85x7=595g, 7 pcs N420x7 0.635 28 20141124+180g+Chiang Note: 1. this meter can direct link to pre-amplifier output terminal, none extra components necessary. 2. If link to power amplifier, you need a extra resistane network (or a potentiometer) to divide the power, and fix the value by a standard VU meter (monitor and compair to it). Combine shipping with other items to reduce shipping cost are welcome. Will ship worldwide by post EMS or Airmail or SAL or Surface parcel package with insurance (if could). The delivery is about : EMS=3~5days, Airmail= 2 weeks, SAL=45days, Surface=2~3months, but no warranty if delay, depend on the post/customs. If you need the more the fastest delivery, take EMS please, but more expensive. For parcel weight =0.5~1Kg, the shipping cost= Argentina : $42(EMS), $33.5(Airmail), all with insurance, Australia : $33.5(EMS), $23.5(Airmail), all with insurance, Austria : $33(EMS), $21(Airmail), all with insurance, Azerbaijan : $33(EMS), $31(Airmail), all with insurance, Belarus : $33(EMS), $30.5(Airmail), all with insurance, Belgium : $33(EMS), $27(Airmail), all with insurance, Brazil : $42(EMS), $31.5(Airmail), all with insurance, Canada : $33(EMS with insurance), $21(Airmail without insurance), $16(SAL without insurance), Croatia : $22.5(Airmail), with insurance, Cyprus : $33(EMS), $20.5(Airmail), all with insurance, Czech Rep. : $33(EMS), $24.5(Airmail), all with insurance, Denmark : $33(EMS), $22.5(Airmail), all with insurance, France : $33(EMS), $31(Airmail), $21(Surface), all with insurance, Germany : $33(EMS with insurance), $22(Airmail without insurance), Great Britain : $33(EMS with insurance), $26(Airmail without insurance), Greece : $33(EMS), $26(Airmail), all with insurance, Hong Kong : $22(EMS), $16.5(Airmail), all with insurance, India : $26(EMS), $20.5(Airmail), all with insurance, Indonesia : $26(EMS with insurance), $23(Airmail without insurance), Israel : $26(EMS with insurance), $22(Airmail without insurance), Italy : $33(EMS), $30.5(Airmail), all with insurance, Japan : $26(EMS), $25(Airmail), all with insurance, Korea Rep. : $26(EMS), $17(Airmail), all with insurance, Malaysia : $26(EMS), $15.5(Airmail), all with insurance, Netherlands : $33(EMS), $22(Airmail), all with insurance, New Zealand : $33.5(EMS), $23.5(Airmail), all with insurance, Norway : $33(EMS with insurance), $28.5(Airmail without insurance), Philippines : $23(EMS), $16.5(Airmail), all with insurance, Russian Federation : $33(EMS with insurance), Saudi Arabia : $26(EMS with insurance), $22(Airmail without insurance), Singapore : $26(EMS), $16.5(Airmail), all with insurance, Slovak Rep. : $33(EMS), $24.5(Airmail), all with insurance, Slovenia : $33(EMS with insurance), $22(Airmail without insurance), South Africa : $42(EMS), $28(Airmail), all with insurance, Spain : $33(EMS with insurance), $23.5(Airmail without insurance), Sweden : $33(EMS), $26.5(Airmail), all with insurance, Switzerland : $33(EMS), $21.5(Airmail), all with insurance, Thailand : $26(EMS), $17.5(Airmail), all with insurance, Ukraine : $33(EMS), $30.5(Airmail), all with insurance, USA : $33(EMS), $22(Airmail), $16.5(SAL), all with insurance, Viet Nam : $26(EMS with insurance), other countries contact for detail shipping cost please. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Thanks for your looking.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NISSEI
Country of Manufacture	Taiwan, Province of China
Model	TN-73
Type	Panel VU Meter, Complete, Calibrated
Country/Region of Manufacture	Taiwan
