80a 24-200v 24v 48v 60v 72v ~110v Current Limited Dc Motor Pwm Speed Controller

US $102.70

Dunaszentgyorgy, Hungary
Mar 9th

Open on mobile:
QR code

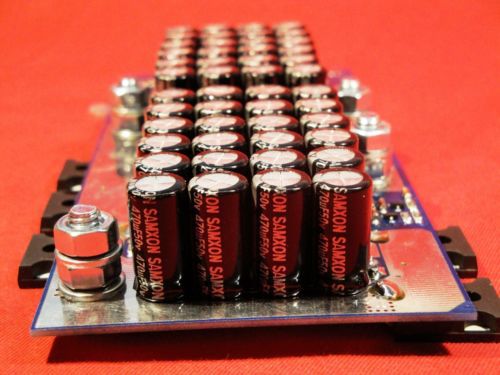

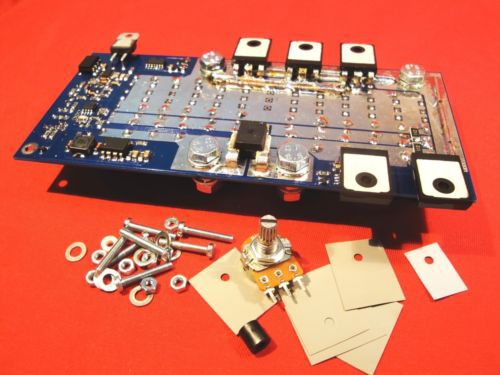

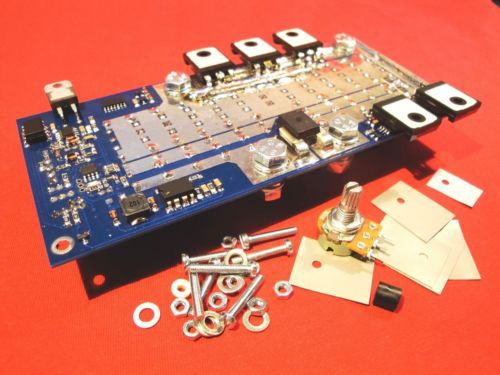

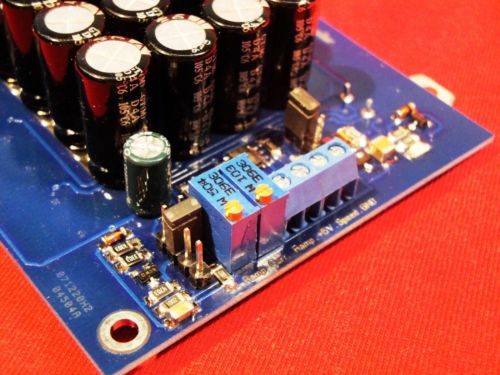

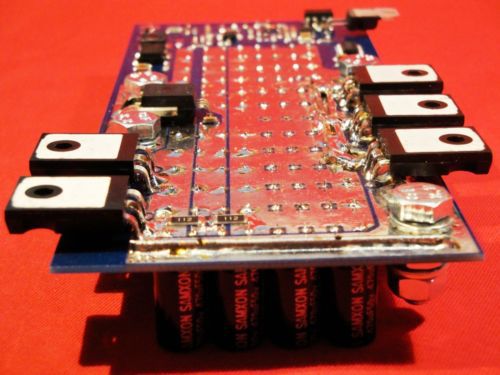

>>>Download the DATASHEET from here<<< Use this controller for any brushes motor! Like: trolley, outboard, electric bicycle or more.... Advantages against other motor PWM controller: Built in 5PCS ultra low resistance 50A MOSFETs Connection on the high current M6 screws. You can supply from ~110V AC grid through a bridge rectifier. Due to the high voltage the electrical experience highly recommended! Wiring and properly isolation requires caution! Universal 0-5V speed controller input. You don't have to use the potentiometer to controll the speed. You can use PLC output or any analoge signal or 0-5V throttle to controll the speed. On /off 2x starter current. 0-20 second speed up potentiometer. For example: slow speed up from 0% to 100% under 20 seconds. Maximum current 80A for 5 seconds (this is perfect for the large starter torque at speed up) Normal current limit is adjustable between 5-40A Ultra high efficiency low speed hight current driving (thanks for the special adaptive controlling. Universal supply voltage between 24-200V DC. (200V is absolute maximum) Capable of synchronisation from external signal. (like from uPC or two piece in sync operation. Overheating protection. Why choose this controller? On the ebay there is many type of controller the most piece is a chinese simple and cheap controller. They are great until you put a large load to theirs output. -That controllers don't have supply filtering what is very important! Without it the most of the chinese controller regularly burning down. -They haven't got proper freewheele diode against the motor inductive current! -The most of them don't have any current limit function which is very important by a motor. This unit is a current limited speed controller for any brushed DC motor with great LOW ESR capacitor supply filtering and a syncgronous switching freewheel diode! How can you controll the motor speed with this controller? With the current limit potentiometer you can very fine adjust the current what the motor can maximum consumes. For example, you have 1000W 96V DC motor. Your motor nominal current is 10A. Than you adjust the current limit to 10-15A. After them your motor and PWM driver is fully protected against the burning down and over load. Additional protection is the temperature protection. The controller measure the temperature of heatsink. If that exceed the maximum than the controller will shutting down. You can easily control the motor speed between 0-98% with the motor speed controller potentiometer which is connected to the potentiometer terminal. Of course if you have a throttle you can use it. But first you have to sure that is 0-5V. You can use as long potentiometer cable as you want. So you don't have to mount the PWM and the potentiometer juxtaposed. Attention! This is only a PCB! For using the controller the transistors needs heatsink. You can buy heatsink in any electronics shop. Or use a large aluminium plate. If you don't want to deal with the mounting you can find this controller in my other items which is ready to use and full mounted in waterproof aluminium box. If you have a little experience and you are a handy man you can easily mount this product. You can find the step by step instructions in the datasheet. This controller includes the necessary accessories which have to use for the heatsink mounting (except heatsink). It is free gift. Specifications: If you have any question special request or something, please feel free to contact, we are electrical engineers there isn't problem what can't solve. We will see what can we do. If you need more pieces please contact for discount! Warranty: 6 moths European shipping: mainly 3-6 days Worldwide: mainly 8-12 days. Handling: 1-3 days
