85-242v 0-70°c Thermostat Temperature Controller Temp Control Thermometer +sensor

US $51.20

  • Guangzhou ,Guangdong, China
  • Jun 9th

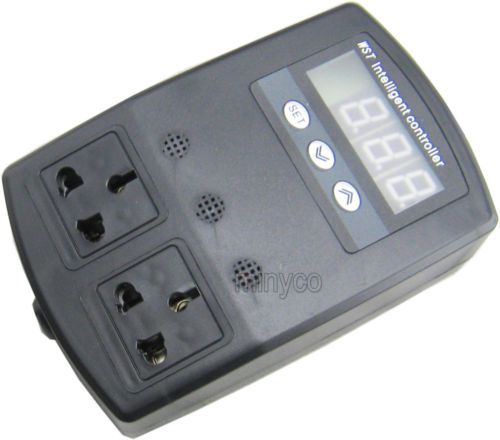

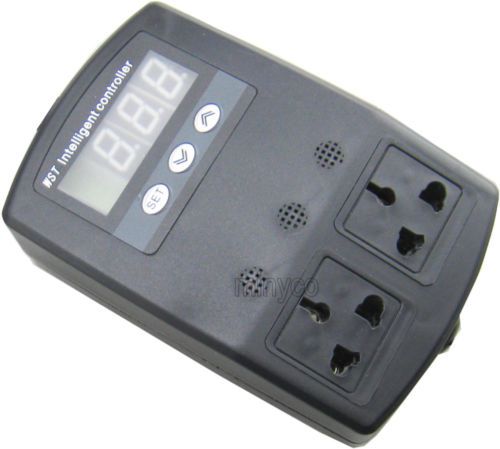

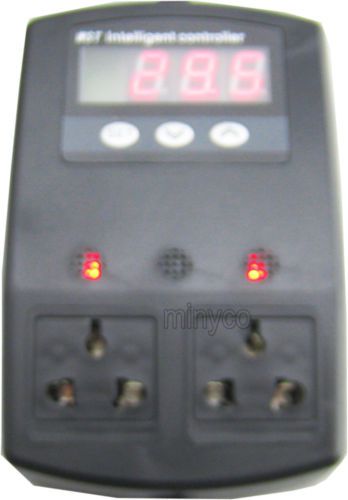

welcome to our shop! Description AC85-242V 0-70℃ WST-D1 smart thermostat intelligent temperature controller digital temp control Thermometer Australian plug #1400177    The instrument Each button's function clearly  By Relay on and off Realize Automatic control Controller According to changes in temperature conditions Automatically shut down or start control device    Parameters:  Temperature measurement range: 0 ℃ ~ 70 ℃  Sensor: NTC10K B3435  Resolution: 0.5 ℃  Control accuracy: 1 ℃  Output Type: Relay (contact capacity 250V, 10A)  Case size: 87mm x 135mm x 45mm  Operating voltage: AC85 ~ 242V 50Hz/60Hz  Control Type: Automatic hot and cold / Heating / cooling   1)After the instrument Powered ,if you do not change the setting value   Data is automatically credited to the original setting automatic control operation.   2) Change the accused temperature settings:  in Powered state ,Long press the SET button, Enter the menu mode, Adjusted according to the corresponding parameters, Press the "up" or "down" button to change the setting, "Up" is used to increase the temperature setting, "Down" is used to reduce the temperature setting, Finally, press the "SET" to adjust data memory, Temperature controller returns to the operating state control, If the data set is not confirmed by “SET,” The system default back to work after 10 seconds automatically.       3) actual use, do not let  the lower limit  higher than the upper limit.  4) Temperature sensor short circuit, Circuit fault tips Err.   installation: the ambient temperature of the instrument must be maintained between -5 ℃ ~ +65 ℃,  Instrument shall be placed No humidity and high pressure occasion To ventilation for easy cooling    Wiring: the need to control the device plugged into the socket on the panel, Instrument power supply must be marked in accordance with the specifications of some power equipment.    Symbol                    Item                                                                           Content              Factory setting   Unit  HS        Temperature upper limit                                        1-70                       30                        ℃   LS        Temperature Lower limit                                         1-70                                    25                           ℃                                   HC        cooling / heating Switching                                            00-70                                   00                 *    Note: HC heating / cooling state switching data :00 = heating state, 01 = cooling state, other value = do not output    packing including: 1X temperature controller     Part of the problem run into practical use here explain:  A: The two sockets controller How does it work?       The two sockets are simultaneously in operation, That work simultaneously Or both stops.  B: The controller's job is much volt power supply?   Use 110V, the same output as 110V, This controller is suitable for international use, do not    worry about the power unworthy, Also this power is the high side and low side completely isolated, even if the sensor is damaged when disconnected electric shock, do not worry.  C: This controller is used internally relay what?  The internal controller is dual relay controller, all the way to the relay if damaged, the other can still control all the way, which is equivalent to two controllers use. Relay capacity of 10A, which can be controlled 2000W resistive load Such as thermal heating, heating pads, electric stove, heater, etc.  D: The controller setting parameters in trouble?   The setup is very simple. Only three need to set parameters. That Upper temperature HS,  Lower temperature value LS, State Control bits HC  Set heating control:  Reach Upper 28 degrees to stop, 27 degrees below the lower start  (Or 26, 25 degrees, like the principle)  Set as follows:  Upper HS = 28.0 lower limit LS = 27.0 Control bit HC = 00 (heating mode).    * Set the cooling control:  Start to reach Upper 30 degrees, 29 degrees below the lower limit stop  (Or 28, 27 degrees, like the principles, can be arbitrarily set up their own)  Set as follows:  Upper HS = 30.0 lower limit LS = 29.0 Control bit HC = 01 (cooling mode or cooling mode is called).  If you usually do not need to use the control, in order to protect the life of the relay,  HC can be changed to any value other than 00, 01, and So that the controller uses only as a thermometer, the internal relay is not going to make any response to (Panel socket without electricity output).   Payment We only accept payments via paypal. All payments must  be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us.     Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days .  We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed.  if you need  express post please contact us !   About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item .   Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop !
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
product name smart thermostat
Resolution 0.5 °C
module name intelligent temperature controller
Control accuracy 1 °C
Model digital temp control
Output Type Relay (contact capacity 250V, 10A)
Brand Thermometer
Operating voltage AC85 ~ 242V 50Hz/60Hz
Temperature measurement range 0 °C ~ 70 °C
MPN Does Not Apply

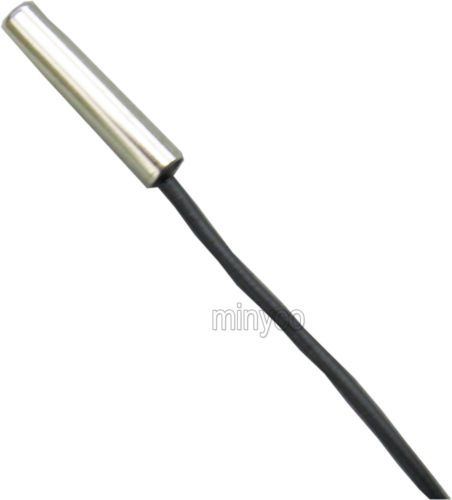

Sensor NTC10K B3435
UPC Does not apply
