A5d3gka Sama5d36 Development Board Industrial Control Board Ethernet Rs232 Lcd

US $167.00

Nanning, Guangxi, China
Jun 9th

Open on mobile:
QR code

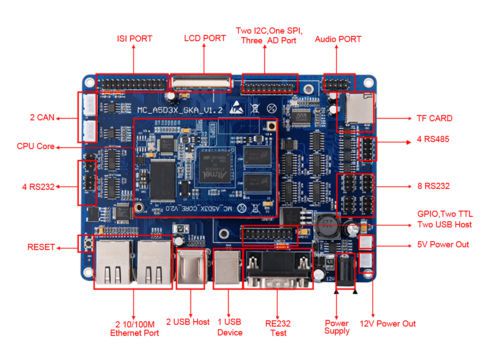

Overview The A5D3GKA evaluation kit is a fully-featured evaluation platform for Atmel SAMA5D3 series microcontrollers. The evaluation kit allows users to extensively evaluate, prototype and create application-specific designs. The A5D3GKA evaluation kit is a platform architecture based on a main board, a computer module equipped with a SAMA5D3 series processor and an optional display module, providing maximum flexibility for kit users. Hardware System Resources CPU ATMEL SAMA5D36, 536MHz Saving Space 32MB-2GB NandFlash(256MB), 512KB~2MBSPI NorFlash(Optional) Memery 256MB DDR2 RTC RTC without Battery Watch Dog External Watch Dog Serial Number With unique 48bit Serial Number for each board,for software encrypting, Product maintenance etc. Indicator LED Power Supply LED,User LEDs Communication Interfaces Network Two Channels Independent 10M/100M self-adaption Ethernet Interface. Serial 15 Serial Ports: 1 for RS232 debug,12 for RS232 communication,2 for TTL, and 4 for RS485 communication. AD 3 Channels 12bit AD USB 3 Channels USB 2.0 Host,1 Channel USB 2.0 Device. GPIO Up to 36 Channels GPIO Matrix KeyBoard Configurable IO for Matrix KeyBoard Expandsion Interface I2C/SPI/USB/TTL Optional Expandsion Module GPRS/CDMA module?3G(WCDMA/CDMA2000/TD-SCDMA) module and Wifi module etc. Saving Equipment TF Card Supports hot plug Working Parameters Power Input 12V DC-IN Working Temperature -40~+85°C Humidity Working 5%~95% Dimension 146mm X 102mm Software Bootstrap 3.6.0 Provides Source Code U-Boot 2012.10 Provides Source Code Linux Core RTC Drive (RX8025) Provides Source Code MACB Drive Provides Source Code GPRS Drive Provides Source Code Touch LCD Screen Drive Provides Source Code LCD Drive Provides Source Code Serial Drive Provides Source Code Expandsion Serial Drive Provides Source Code Audio Drive Provides Source Code PPP Drive Provides Source Code GPIO Drive Provides Source Code Keyboard Drive Provides Source Code SPI Drive Provides Source Code CAN Drive Provides Source Code USB Drive Provides Source Code MMC/SD Drive Provides Source Code I2C Drive Provides Source Code SP706 Watch Dog Drive Provides Source Code LED Drive Provides Source Code MTDDrive Provides Source Code What's on board? Packing List This product should include the following components: A5D3GKA Industrial Control Board, 1 pcs; Can I get a tracking number for my package? Yes,We will provide a tracking number for all the customers. Terms and Conditions Payment: PayPal is the only method of payment that we accept. Shipping: 1.Please confirm your address in paypal, including your Phone number!. 2.All items will be shipped within the HANDLING TIME on receipt of cleared payment and We ship items to Worldwide. 3.To USA:via ePACKET Express Shipping,it usually takes 8-15 working days to receive. 4.To Taiwan,Macao and Hongkong:via SF-Express,it usually takes 1-4 working days to receive. 5.To South America:via HONGKONG post,SWISS POST,UK POST,China Post or Singapore POST,it usually takes 15-45 working days to receive. 6.To Europe:Germany/Belgium/China Post,it usually takes 6-15 working days to receive,but there may be some delay to some countries. 7.To others Countries:via HONGKONG/SWISS/UK/China/Singapore POST,it usually takes 10-35 working days to receive. 5.We also provides FAST shipping,like DHL,UPS,feDEX and EMS.Pls tell me if you want to use them,and i will send paypal invoice for fast-shipping fee to you. It usually takes 4-9 workig days to receive.And pls contact us firstly. ePACKET(only for American Customers):www.usps.com UK Post:http://www.royalmail.com China Post:http://intmail.183.com.cn/ HongKong Post: www.hongkongpost.com Swiss Post: http://www.swisspost.com Singapore Post:http://www.singpost.com Germany Post: https://www.deutschepost.de Belgium Post: www.bpost.be DHL:www.dhl.com UPS:www.ups.com feDEX:www.fedex.com EMS:www.ems.com.cn Returns Policy: 1.We are happy to return any unused item in its original packaging within 14 days of delivery. 2.Buyers are responsible for the round (two-way) shipping cost. Feedback: 1.We'll leave POSITIVE FEEDBACK on receipt of cleared payment. 2.If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us. 3.Once any problems occured, please contact us first. We'll try our best to work things out.Don't leave your BAD feedback without any communication. Some useful websites for the local tracking(Usually available after the package reach the Destination Country) Belgium www.bpost.be Argentina www.correoargentino.com.ar/consulta_envios/track.php HongKong www.hongkongpost.com Armenia www.haypost.am/view-lang-eng-page-79.html United Kingdom http://track.royalmail.com/ Korea http://service.epost.go.kr/iservice/ems/ems_eng.jsp Singapore www.singpost.com Denmark http://www.postdanmark.dk/contentfull.dk?lang=en Japan www.japanpost.jp Spain http://www.correos.es/ENG/13-MenuRec2/01-MenuRec21/2010_c1-LocalizadorE.asp USA www.usps.com Turkey http://www.ptt.gov.tr/en/interaktif/kayitliposta-yd.php Switzerland www.swisspost.ch/ Qatar http://www.imolink.net/qpost/ttchmail/tracktrace.htm Croatia http://ips.posta.hr/ Lebanon http://www.libanpost.com.lb/TrackTrace/tabid/59/Default.aspx Moldova www.posta.md:8081/ Belarus http://www.belpost.by/info/ems-search-packages-mail/ The United Arab Emirates www.emiratespost.com Ecuador http://ipsweb.correosdelecuador.com.ec/ipswebtracking/tracking.htm Indonesia http://ems.posindonesia.co.id/ Portugal http://www.ctt.pt/fectt/wcmservlet/ctt/landingpage.html Norway www.posten.no/en/ Finland http://www.posti.fi/english/eservices/itemtracking/index.html Sweden www.posten.se/ India http://ipsweb.ptcmysore.gov.in/ipswebtracking/ Greece www.elta-net.gr/ Iceland http://www.postur.is/english/desktopdefault.aspx/tabid-69/ Hungary www.posta.hu/ Russia http://www.russianpost.ru/rp/servise/ru/home/postuslug/trackingpo Australia www.auspost.com.au/track/ Ireland http://track.anpost.ie/track/tracklist.html Austria www.post.at/en/track_trace.php New Zealand http://www.nzpost.co.nz/Cultures/en-NZ/OnlineTools/Tracking/ Bangladesh www.bangladeshpost.gov.bd/ Canada http://www.canadapost.ca/cpo/mc/languageswitcher.jsf Peru www.serpost.com.pe/ Israel www.israelpost.co.il/itemtrace.nsf/mainsearch?openform&L=EN Chile www.correos.cl/seguimiento/ Uruguay www.correo.com.uy/index.asp?codPag=tyt Poland www.sledzenie.poczta-polska.pl/ Malta http://trackandtrace.maltapost.com/TrackAndTrace.asp Italy http://www.poste.it/ Ukraine www.ukrposhta.com/www/upost_en.nsf/search_post?openpage Mexico www.sepomex.gob.mx/ Lithuania http://trace.post.lt/tandtCritImbed.jsp?refresh=1276154675419 Kazakhstan http://portal.kazpost.kz/ Armenia www.haypost.am/view-lang-eng-page-79.html Bosnia and Herzegovina http://www.bhp.ba/track/1/0/36.html Estonia http://teavitus.post.ee/ar_status.asp Jordan http://213.186.163.148/ipswebtrack/ Latvia http://www2.pasts.lv/lv/uzzinas/meklet_sutijumu.html Germany www.deutschepost.de Saudi Arabia www.sp.com.sa/English/Saudipost/Pages/default.aspx Luxembourg www.trackandtrace.lu/homepage.htm Slovenia http://sledenje.posta.si/default.aspx Singapore www.singpost.com/ra/ra_article_status.asp Cyprus http://ips.cypruspost.gov.cy/ipswebtrack Slovakia http://tandt.posta.sk/en Bulgaria http://services.bgpost.bg/WebTracking Romania www.posta-romana.ro/track_trace

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Mycontrol
Country of Manufacture	China
Model	A5D3GKA Industrial Control Board
MPN	Does Not Apply
Country/Region of Manufacture	China
UPC	Does not apply
