Abb - Variable Frequency Drive - 7.5hp - 380/400/415/440/460/480 Vac - 3 Phase

US $699.00

Corning, New York, United States
Jan 29th

Open on mobile:
QR code

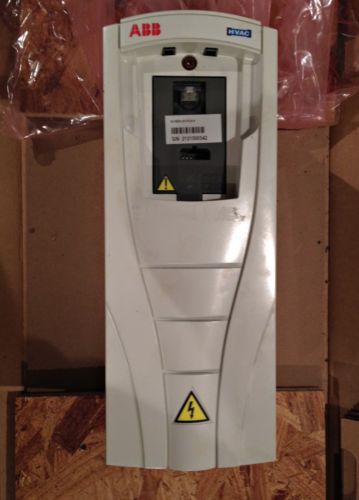

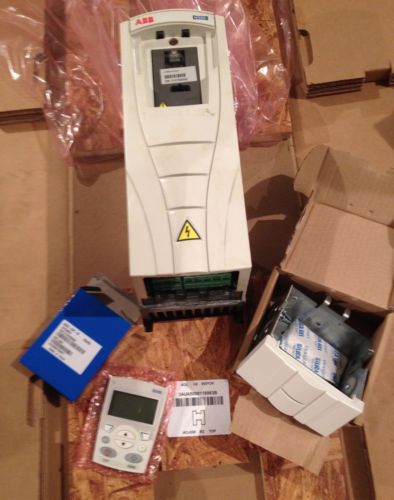

For Sale: 1 ABB - Variable Frequency Drive - 7.5 HP - 380/400/415/440/460/480 VAC - 3 PHASE - model: ACH550-UH-06A9-4 Condition: New (2012) - Installed but never powered. Price: $699 + buyer to pay shipping (*no international shipping at this time) Shipping Wt: 34 lbs ACH550 Product Overview The ACH550 is an variable frequency AC drive designed specifically for the HVAC market that achieves the ultimate in flexible motor control performance. Offering two modes of motor control: Scalar (V/Hz) and Sensorless Vector, the ACH550 provides accurate speed control for any standard squirrel cage motor. With drives ranging from 1 to 550 HP, the ACH550 series features an ‘intuitively obvious’ multi-lingual, graphic display panel that also provides an assistant to aid users in start-up. The control panel can be mounted on the cover of the drive, or remotely, and can upload, store, and download parameters. The ACH550 comes equipped with an extensive library of preprogrammed HVAC application macros that, at the touch of a button, allow rapid configuration of inputs, outputs, and parameters for specific HVAC applications to maximize convenience and minimize start-up time. The ACH550 can be used for the simplest to the most demanding HVAC applications. Two internal option slots can be configured with additional relay outputs as well as a host of different communication bus adapters. The ACH550 has a 110% short term overload rating for one (1) minute out of ten (10) and is capable of >130% short-term overload rating for 2 seconds out of each minute. This provides the torque you need to start high inertia fan(s). Quick Look Specifications Input Connection Input Voltage (U1) ...................................................................... 380/400/415/440/460/480 VAC 3-phase +/-10% Frequency:................................................................................. 48 - 63 Hz Line Limitations: ......................................................................... Max +/-3% of nominal phase to phase input voltage Fundamental Power Factor (cosj):............................................... 0.98 at nominal load Connection:................................................................................ U1, V1, W1 (U1, V1, 1-phase) Output (Motor) Connection Output Voltage:.......................................................................... 0 to U1, 3-phase symmetrical, U2 at the field weakening point Output Frequency:...................................................................... -500 to 500 Hz Frequency Resolution:................................................................ 0.01 Hz Continuous Output Current: Variable Torque:.................................................................. 1.0 * I2N (Nominal rated output current, Variable Torque) Short Term Overload Capacity: Variable Torque:.................................................................. 1.1 * I2N, (1 min/10 min) Peak Overload Capacity: Variable Torque:.................................................................. 1.35 * I2N, (2 sec/1 min) Base Motor Frequency Range:................................................... 10 to 500 Hz Switching Frequency:................................................................. 1, 4, 8 or 12 kHz Acceleration Time:...................................................................... 0.1 to 1800 s Deceleration Time:...................................................................... 0.1 to 1800 s Efficiency:................................................................................... 0.98 at nominal power level Short Circuit Withstand Rating:................................................... 100,000 AIC (UL) w/o fuses Connection:................................................................................ U2, V2, W2 Enclosure Style:.......................................................................... UL (NEMA) Type 1, Type 12, or Type 3R Agency Approval Listing and Compliance:.................................. UL, cUL, CE, BTL (BACnet Testing Laboratory), IBC2000, 2003, 2006 Ambient Conditions, Operation Air Temperature:......................................................................... -15° to 40°C (5° to 104°F), above 40°C the maximum output current is de-rated 1% for every additional 1°C (up to 50°C (122°F) maximum limit. Relative Humidity:....................................................................... 5 to 95%, no condensation allowed, maximum relative humidity is 60% in the presence of corrosive gasses Contamination Levels: IEC:.................................................................................... 60721-3-1, 60721-3-2 and 60721-3-3 Chemical Gasses:............................................................... 3C1 and 3C2 Solid Particles:.................................................................... 3S2 Installation Site Altitude:.............................................................. 0 to 1000 m (3300 ft) above sea level. At sites over 1000 m (3300 ft) above sea level, the maximum power is de-rated 1% for every additional 100 m (330 ft). If the installation site is higher than 2000 m (6600 ft) above sea level, please contact your local ABB distributor or representative for further information Vibration:.................................................................................... Max 3.0 mm (0.12 in) 2 to 9 Hz, Max 10 m/s2 (33 ft/s2) 9 to 200 Hz sinusoidal Seismic Certified referencing IBC 2000, 2003 and 2006 Ambient Conditions, Storage (in Protective Shipping Package) Air Temperature:......................................................................... -40° to 70°C (-40° to 158°F) Relative Humidity:....................................................................... Less than 95%, no condensation allowed Vibration:.................................................................................... In accordance with ISTA 1A and 1B specifications Shock (IEC 60086-2-29):............................................................ Max 100 m/s2 (330 ft/s2) 11 ms Ambient Conditions, Transportation (in Protective Shipping Package) Air Temperature:......................................................................... -40° to 70°C (-40° to 158°F) Relative Humidity:....................................................................... Less than 95%, no condensation allowed Atmospheric Pressure:............................................................... 60 to 106 kPa (8.7 to 15.4 PSI) Vibration:.................................................................................... Max 3.5 mm (0.14 in) 2 to 9 Hz, Max 15 m/s2 (49 ft/s2) 9 to 200 Hz sinusoidal Shock (IEC 60086-2-29):............................................................ Max 100 m/s2 (330 ft/s2) 11 ms Free Fall:..................................................................................... R1: 76 cm (30 in) R2: 61 cm (24 in) R3: 46 cm (18 in) R4 31 cm (12 in) R5 & 6: 25 cm (10 in) Cooling Information Cooling Method:......................................................................... Integral fan(s) Power Loss:............................................................................... Approximately 3% of rated power Analog Inputs Quantity...................................................................................... Two (2) programmable Voltage Reference:..................................................................... 0 (2) to 10 V, 250kOhm, single ended Current Reference:..................................................................... 0 (4) to 20 mA, 100Ohm, single ended Potentiometer:............................................................................ 10 VDC, 10 mA (1K to 10KOhms) Input Updating Time................................................................... 8 ms Terminal Block Size..................................................................... 2.3mm2 / 14AWG Reference Power Supply Reference Voltage...................................................................... +10 VDC, 1% at 25°C (77°F) Maximum Load.......................................................................... 10 mA Applicable Potentiometer............................................................ 1 kOhm to 10 kOhm Terminal Block Size..................................................................... 2.3mm2 / 14AWG Analog Outputs Quantity...................................................................................... Two (2) programmable current outputs Signal Level................................................................................ 0 (4) to 20 mA Accuracy.................................................................................... +/- 1% full scale range at 25°C (77°F) Maximum Load Impedance........................................................ 500 Ohms Output Updating Time................................................................ 2 ms Terminal Block Size..................................................................... 2.3mm2 / 14AWG Digital Inputs Quantity...................................................................................... Six (6) programmable digital inputs Isolation...................................................................................... Isolated as one group Signal Level................................................................................ 24 VDC, (10V Logic 0) Input Current.............................................................................. 15 mA at 24 VDC Input Updating Time:.................................................................. 4 ms Terminal Block Size..................................................................... 2.3mm2 / 14AWG Internal Power Supply Primary Use................................................................................ Internal supply for digital inputs Voltage:...................................................................................... +24 VDC, max 250 mA Maximum Current:...................................................................... 250 mA Protection:.................................................................................. Short circuit protected Relay Outputs Quantity...................................................................................... Three (3) programmable relay (Form C) outputs Switching Capacity:.................................................................... 8 A at 24 VDC or 250 VAC, 0.4 A at 120 VDC Max Continuous Current:............................................................ 2A RMS Contact Material:........................................................................ Silver Cadmium Oxide (AgCdO) Isolation Test Voltage.................................................................. 4 kVAC, 1 minute Output Updating Time................................................................ 12 ms Terminal Block Size..................................................................... 2.3mm2 / 14AWG Protections Single Phase.............................................................................. Protected (input & output) Overcurrent Trip Limit:................................................................. 3.5 x I2N instantaneous Adjustable Current Regulation Limit:........................................... 1.3 x I2N (RMS) max. Overvoltage Trip Limit:................................................................ 1.30 x UN Undervoltage Trip Limit:.............................................................. 0.65 x UN Overtemperature (Heatsink):....................................................... +115°C (+239°F) Auxiliary Voltage:......................................................................... Short Circuit Protected Ground Fault:............................................................................. Protected Short Circuit:.............................................................................. Protected Microprocessor fault:.................................................................. Protected Motor Stall Protection:................................................................ Protected Motor Overtemperature Protection (I2t):...................................... Protected Input Power Loss of Phase:........................................................ Protected Loss of Reference:...................................................................... Protected Short Circuit Current Rating:....................................................... 100,000 RMS symmetrical Amperes Input Line Impedance:................................................................ 5% Equivalent Input Impedance with internal reactor(s) Patented swinging choke design for superior harmonic mitigation in frame sizes R1-R6 Printed Circuit Boards................................................................. Conformal coated

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	ABB
Country/Region of Manufacture	China

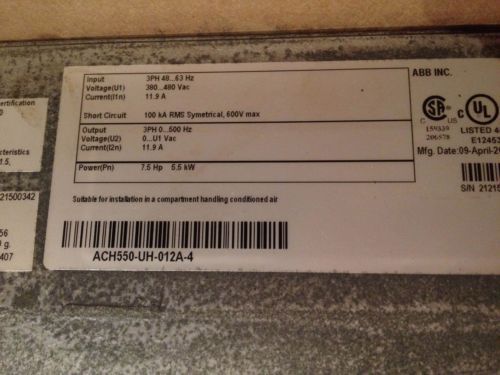

Model	ACH550-UH-012A-4
