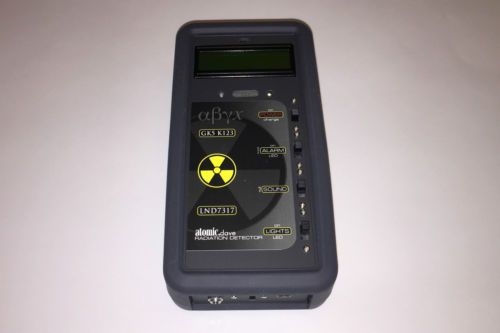

Abyx-gk5 Geiger Counter • Hand Crafted • Lnd 7317 • Pelican 1060 Pancake

US $400.00

West Covina, California, United States
Feb 26th

Open on mobile:
QR code

The abyx-Gk5 CUSTOM FULL FEATURED Arduino compatible DIY Geiger Counter Kit 123 by Atomic.dave FEATURES: Internal Alpha Beta Gamma Xray ULTRA-Sensitive American made LND7317 Pancake tube with Ludlum 44-9 Stainless Steel Protective Screen • PELICAN 1060 Carry/Flight Case • Fitted Silicon Boot Tone mode makes sensitivity like a metal detector (distance to the source effects pitch of the beep) WIRELESS REMOTE CONTROL for EASY in-field adjustments to: Alarm threshold with range of 0 to 60000 cpm, 2 different Timer averages with range between 1 and 720 minutes, RAD SAMPLE and RAD Stickers, UV keychain LED flashlight, WALL & CAR USB CHARGER CD with drivers, build info, schematics parts list, and program sketch used to program the ATmega chip Tube usv to cpm ratio, & Much more… 6 month FREE Maintenance from date of purchase (Buyer pays for shipping and/or parts if needed, labor is free) Includes calibration or parts replacement labor if something fails in first 6 months. Upgrades or mods not included PC DATA LOGGING SOFTWARE (FREE) (I do not work for these companies, nor do I provide anything other then basic tech support for the programs So please contact the appropriate people using the provided website addresses below for extra support) RadLog Professional http://radmon.org/index.php/download-upload Radiation Logger http://www.rhelectronics.net/store/radiation-logger.html iPhone/iPad DATA LOGGING APPs (FREE)Geiger Bothttps://sites.google.com/site/geigerbot/ Safecasthttp://blog.safecast.org/2014/09/safecast-os-x-app-now-available/ IMPORTANT INFORMATION CONCERNING PANCAKE GEIGER MULLER TUBES AND HIGH ALTITUDE: All makers of pancake tubes ship them in sealed tin cans (paint cans). All Atomic.dave Geiger counters with pancakes are shipped inside Pelican atmospheric controlled cases. Also the GC design includes a gasket-spacer for reverse-bow window conditions. Even in the passenger compartment a Pancake detector (LND 7317, 7311, 7312, QPL 8767 et al.) is at risk. LND and Ludlum Measurements rate them only to 8000 feet altitude. Passenger compartments on commercial jets are supposed to be pressurized to 8000 feet equiv. http://www.ludlums.com/images/stories/news_letters/nwsltr-4re.pdf http://www.ludlums.com/images/stories/news_letters/NwsLtr-22re.pdf Because at this altitude the mica window on a regular pancake (gas fill is at less than 1 atm.) reverses its bow direction, from slightly inwards to slightly outwards, I designed my Geiger counters with a rubber gasket between the tube face and the stainless steel screen to accommodate this motion. Bill Lehnert of LND today verified: LND 7317-Routine operation at 5000-6000 feet no problem, i.e. Denver, Los Alamos. Above that they work fine until the reverse bow becomes a problem in the housing. Once the bow has reversed, the tube will continue to work fine. It is not a good idea to cycle between high altitude and low altitude, as eventually the seals will suffer. LND 712- the small 500V end-window used in so many pocket-sized portables will work at full vacuum. A great selection for Alpha Particle experiments inside a vacuum jig. Gamma sensitivity 18 CPS. LND 72344 (500V) or LND 72310 (900V) are actually described as end-window not pancake. To me they look like a small pancake. They are good somewhere between the 7311 and 712, so would be a very good candidate for a high altitude probe, still retaining a good Gamma Sensitivity number of 25. (End of Bill's contribution) It's really hard to beat a LND 7317 based geiger counter for general-purpose field work (60 CPS/mR/H Co-60). The transportation issue is a real one, so make arrangements for that. For routine high altitude usage, you might want to consider another type of tube. If you are not familiar with Atomic.dave Geiger Counters, they are based on a DIY kit designed by user Brohogan. It has certainly evolved over the past 3 years to have many more features, controls and options then it did back then. All info to create this kit is available on the website below so if you want you can create your own. The schematic and very detailed instructions are available at that site. This is more of a kit for someone who knows a bit about electronics but doesn't have the time or patience to build it. This is a hand crafted device and may have slight imperfection on them, but customers are all remarking about the excellent craftsmanship done on these meters. The components are all new, including the American Made GM tube, from LND, Inc. I will honor a 30 day money back guarantee if you are not satisfied with this item, however buyer must pay for shipping. Links to websites related to this kit: DIY GEIGER COUNTER DEVELOPERS WEBSITE (All you need to know about whats inside this unit) https://www.sites.google.com/site/diygeigercounter/ Atomic.Dave YouTube Channel (many videos of geiger counters I have built and sold over the past 2 years) http://www.youtube.com/channel/UCENd8S7Gp9ko9jvuhQPkZsQ Here is a YouTube link to the developer of the kit that is used in this geiger counter. There are many videos on his channel that will help you to understand more about what this kit has inside: http://www.youtube.com/user/BroHogan WARNING, IF YOU DO DECIDE TO OPEN UP THE CASE AND LOOK INSIDE, PLEASE DO NOT TOUCH ANYTHING WITH THE POWER ON AS YOU COULD SHORT OUT AND KILL THIS SYSTEM AND I WILL NOT WARRANT THIS KIT FOR DAMAGE DONE. I ship USPS First Class or Priority Mail for US and International I CAN ACCEPT CREDIT CARDS - WHEN YOU BUY THE ITEM IT WILL ROUTE YOU TO PAYPAL THIS IS WHERE YOU PROVIDE YOUR CC INFO. Check out my other auctions for available Geiger Counters, Parts and Accessories LND 7317 Low voltage pancake mica window Download Specifications in .pdf format GENERAL SPECIFICATIONS GAS FILLING Ne +Halogen CATHODE MATERIAL Stainless Steel MAXIMUM LENGTH (INCH/MM) 3.00/76.1 EFFECTIVE DEPTH (INCH/MM) 0.5/12.7 MAXIMUM DIAMETER (INCH/MM) 2.11/53.6 EFFECTIVE DIAMETER (INCH/MM) 1.75/44.5 CONNECTOR Grid Cap OPERATING TEMPERATURE RANGE °C -40 to +75 WINDOW SPECIFICATIONS AREAL DENSITY (MG/CM?) 2.0 EFFECTIVE DIAMETER (INCH/MM) 1.75/44.5 MATERIAL Mica ELECTRICAL SPECIFICATIONS RECOMMENDED ANODE RESISTOR (MEG OHM) 4.7 MAXIMUM STARTING VOLTAGE (VOLTS) 425 RECOMMENDED OPERATING VOLTAGE (VOLTS) 500 OPERATING VOLTAGE RANGE (VOLTS) 475 - 675 MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 10 MINIMUM DEAD TIME (MICRO SEC) 40 GAMMA SENSITIVITY CO60 (CPS/MR/HR) 60 TUBE CAPACITANCE (PF) 3 WEIGHT (GRAMS) 125 MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) 30 MINIMUM ANODE RESISTOR (MEG OHM) 3.3

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Atomic.dave, New Age, Brohogan
Type	Geiger Counter
Model	abyx-Gk5, Atomic.Dave_K123, LND7317
Country/Region of Manufacture	United States
