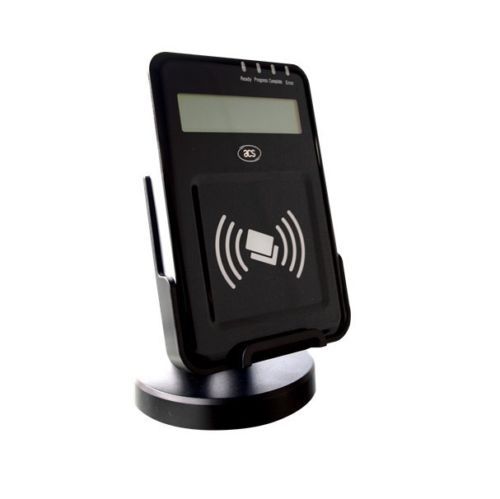

ACR1222L USB RFID Contactless 13.56MHZ Smart Chip Card/Tag NFC Reader with LCD, US $150 – Picture 0

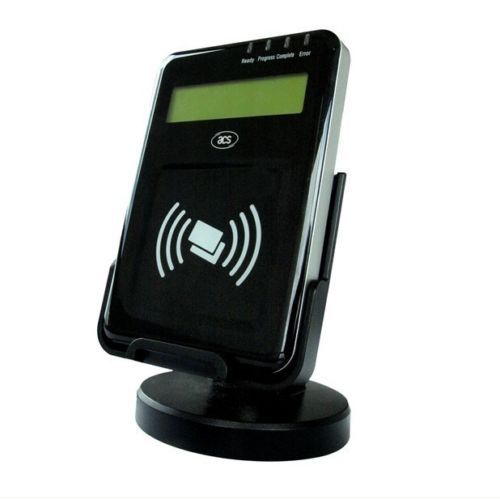

ACR1222L USB RFID Contactless 13.56MHZ Smart Chip Card/Tag NFC Reader with LCD, US $150 – Picture 1

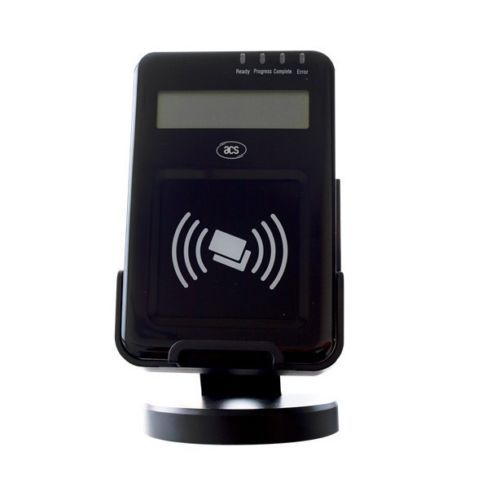

ACR1222L USB RFID Contactless 13.56MHZ Smart Chip Card/Tag NFC Reader with LCD, US $150 – Picture 2

ACR1222L USB RFID Contactless 13.56MHZ Smart Chip Card/Tag NFC Reader with LCD, US $150 – Picture 3

Acr1222l Usb Rfid Contactless 13.56mhz Smart Chip Card/tag Nfc Reader With Lcd

US $150

??, ???, China
Jan 30th

Open on mobile:
QR code

Product Description: ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, Mifare, FeliCa and all 4 types of NFC tags. With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. It allows interactive operation such as scrolling up and down, left and right, etc. Moreover its three built-in SAM slots provide enhanced security during contactless operations. Typical applications of ACR1222L include e-payment, loyalty programs and access control. Features: USB 2.0 Full Speed Interface CCID Compliance Smart Card Reader:Read/Write speed of up to 424 kbps Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) Support for ISO 14443 Part 4 Type A and B cards, Mifare, FeliCa and all four types of NFC (ISO/IEC 18092) tags Built-in anti-collision feature (only one tag is accessed at any time) Three ISO 7816 compliant SAM slots Built-in Peripherals:Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages) Four user-controllable LEDs User-controllable buzzer USB Firmware Upgradability Tech Specs: Dimensions Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H); With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) Weight Main Body: 173 g With Stand: 415 g Interface USB 2.0 Full Speed Operating Distance Up to 50 mm (depends on the tag type) Supply Voltage Regulated 5V DC Supply Current 300mA (maximum); 50mA (standby); 150mA (normal) Operating Temperature 0-50°C Operating Frequency 13.56 MHz Smart Card Interface Support ISO 14443 Type A & B Mifare FeliCa 4 types of NFC (ISO/IEC 18092) tags Compliance / Certifications ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed Microsoft WHQL Windows 2000, XP, Vista, 7 Operating System Support Windows 2000, 2003, XP, Vista, 2008, 7 Windows 2003 x64, XP x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64 Linux Mac Android 3.1 and above Applications: e-Government Banking & Payment e-Healthcare Network Security Access Control e-Purse & Loyalty Transportation Package Include: 1PCS*ACR1222L NFC Card Reader 2PCS *NFC Tag & 2PCS M1 Cards 1PCS*CD Software Shipping 1. We will take China Post Air Parcel for free shipping and EMS to ship your order as normal. 2. 1-3 Days leading time will be necessary, the package will arrive in your place in 5-10 days as normal according to the shipping service you select, default, as free shipping will be EMS. 3. DHL, TNT, Fedex, UPS, Air Cargo, Registered Mail are all supported, if you want to use any of them please contact me before you make the payment, because there will produce other fee. 4. Once we ship your order, the track number will be available, but the track record?s delay will be normal, 12 hours as usual. 5. International shipping may be influenced by holidays, events and other uncertainties. We could not guarantee the arrival time. If you dislike the seemingly long shipping time, please do not place the orders. We would not want to get negative, neutral or low rating only because of the shipping time Payment: 1. We can accept Paypal , T/T, Credit Card as payment method. 2. Please make the payment in 7 days after you place the order or we will complain it to ebay 3. The custom duties, local taxes and charges are not included in the items price or shipping fee. It is buyer?s responsibility, but we will try our best to cooperate with you to solve it smoothly, and offer any free documents, if there is any cost, it will be buyer?s responsibility. Return And Warranty: 1. 100% Money back guarantee. Refund/Exchange within 2 weeks. 2. When you got your items in 3 days, if dissatisfaction, please Email us friendly to resolve it, after both agreement, you just mail the item back in the original condition, after we got the item returned, you will get your money back. 3. Shipping&Handling fees and return shipping charges are non-refundable. Feedback: Your satisfaction for our service is very important, if are satisfied with your transaction please give us a positive feedback, that will be appreciated, if you don't satisfy, please contact us before you leave the neutral or negative feedback, just give both of us a chance to solve the problem and we believe that you will get a satisfied solution. Other question: Please feel free to contact us if there is any question, we will reply you sooner, if our trade-manager is off line, please just leave us a message we will reply you in 12 hours.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ACS
Operating Distance	Up to 50 mm (depends on the tag type)
Model	ACR1222L
Supply Voltage	Regulated 5V DC
Country/Region of Manufacture	China
Supply Current	300mA (maximum); 50mA (standby); 150mA (normal)
Dimensions(Main Body)	133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
Operating Frequency	13.56 MHz
Dimensions(With Stand)	158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Smart Card Interface Support	ISO 14443 Type A & B/Mifare/FeliCa/4 types of NFC
Weight	Main Body: 173 g ;With Stand: 415 g
Operating System Support	win7/win8/Linux/Mac/Android 3.1 and above
Interface	USB 2.0 Full Speed
