Ad9850 6 Bands 0~55mhz Dds Signal Generator Ham Radio Rit Vfo Ssb Ham Radio

US $37.99

HONG KONG , Hong Kong
Jun 9th

Open on mobile:
QR code

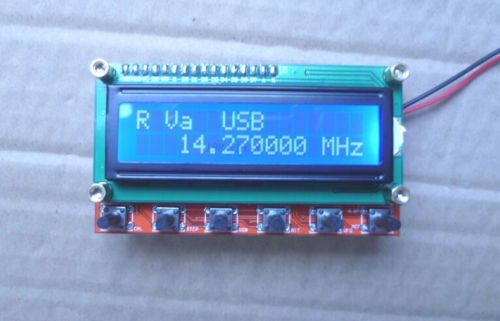

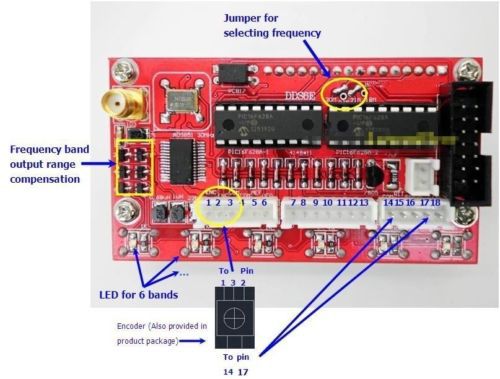

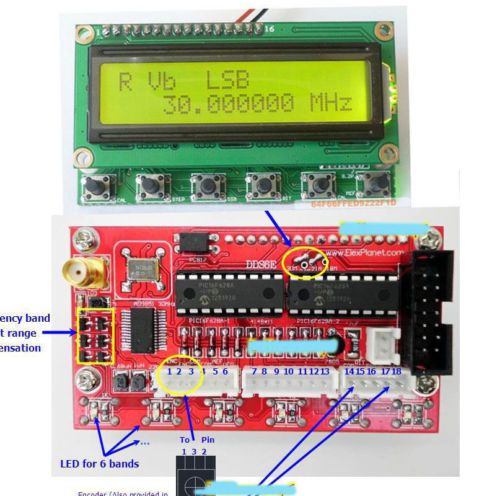

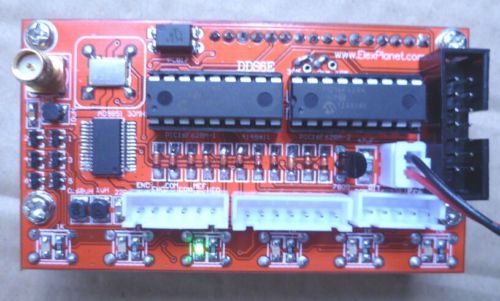

6 Bands 0~55MHz DDS Signal Generator HAM Radio RIT VFO SSB HAM Radio Description: Features: This is a 0~55MHz DDS Signal Generator. It is based on AD9850 chip and is very easy to operate. Supports 0~55MHz continual adjust at 1Hz step. This generator has 78L05 voltage regulate. Input current at 200MA, input voltage 8-9V would be the ideal voltage. Input voltage of 12V can only be used for short time testing, otherwise will cause heat to board. 5p/6p connect to encoder as per photo. 7p of the middle connects to digital matrix input. 14p (8V GND) is 8V power supply from main board. If powered by main board, DDS does not need independent power supply. 1~6 correspond to 6 frequency bands: (3.8,7 ,9,14,18 or 21,27 or 29) ISB, USB, CW are the three mode choices. DT is signal from main board. Keys & Connection interfaces: ENC: encoder switch MEM: switch for memory mode VFO: Transfer from VFO A to VFO B, or from VFO B to VFO A. SSB: Working mode change: circulate from USB, LSB, AM, CW, and on and on... RIT: fine tuning to receiving frequency CAL: set functions KB-1 and KB-2 have common shared pin, but is not GND. How to operate: Press CAL, power on, then we enter setting screen. Let go/release CAL. A: ENABLE 6XREFCLE: setting chip clock mode, adjust frequency encoding setting. AD9851 set to 6-multiply frequency, AD9850 set to 1multiply frequency. Press CAL then quickly release to enter next step B. B: DDS-SYSTEM-CLK: Chip working frequency setting. Use encoder switch to adjust value. Operate in accordance with STEP key. AD9851 set at oscillator 6-multiply channel, AD9850 set at actual output of oscillator. Press CAL then quickly release to enter step C. C: MIN_RX_DDS_FREQ:Setting minimum working frequency. Use encoder switch to adjust value and in accordance with STEP key. Press CAL then quickly release to enter step D. D: MAX_RX_DDS_FREQ:Setting maximum working frequency. Use encoder switch to adjust value and in accordance with STEP key. (Smaller than 60MHz would be OK ). Press CAL then quickly release to enter step E. E: SSB_OFFSET:Fine tuning for SSB working mode. Use encoder switch to adjust value and in accordance with STEP key. Press CAL then quickly release to enter step F. F: CW_OFFSET:Fine tuning for CW working mode. Use encoder switch to adjust value and in accordance with STEP key. Press CAL then quickly release to enter step G. G: OFFSET_FREQ:Setting of offset Frequency. e.g, set to 9MHz or 10.7MHz, use encoder switch to adjust value and in accordance with STEP key. Press CAL then quickly release to enter step H. H: MULTIPLIER: multiply setting for frequency. Should be set as 1, press CAL then quickly release to enter step I: I: Screen displayes word "SAVE", automatically save the above setting, and returns to normal working. Notes: 1. DDS SYSTEM CLK: can use frequency tester to get 30MHz oscillator, multiply the tested value at 6, then put the multiplied value here. If using AD9851, make initial setting at 180000000. 2. OFFSET FREQ: can be set as + or - . Rotate encoder switch to change value, press STEP key, then rotate encoder switch to adjust step. Minimum working frequency plus (+) offset frequency should be high than 0 (zero). Frequency display: RX = MULTIPLIER x (RX_DDS_FREQ + OFFSET_FREQ) TX = MULTIPLIER x (RX_DDS_FREQ + OFFSET_FREQ + TX_OFFSET_FREQ) The frequency programmed into the DDS, is calculated as shown below. RX = ABS(RX_DDS_FREQ) TX = ABS(RX_DDS_FREQ + TX_OFFSET_FREQ) RX_DDS_FREQ, MIN_RX_DDS_FREQ, MAX_RX_DDS_FREQ, TX_OFFSET_FREQ & OFFSET_FREQ Examples: 1. DDS output range 30~40MHz: MIN_RX_DDS_FREQ MAX_RX_DDS_FREQ OFFSET_FREQ RX Frequency display range. 30 MHZ 40 MHz 100 MHz = 130 MHz to 140 MHz. \ Note 1 30 MHZ 40 MHz -10 MHz = 20 MHz to 30 MHz. / -40 MHZ -30 MHz 170 MHz = 140 MHz to 130 MHz. \ Note 2 -40 MHZ -30 MHz 60 MHz = 30 MHz to 20 MHz. / 2. setting FT180A with DDS: ENABLE RPT NO X6 RECLK X6 DDS SYSTEM CLK 180M MAX DDS FREQ 65M MIN RX DDS FREQ 10.701M (Offset frequency + RIT frequency) MAX RX DDS FREQ 60M TX OFFSET FREQ 0 MAX RIT OFFSET 1K (RIT frequency) OFFSET FREQ -10.700M -(Offset frequency) MULTIPLIER 1 Package Contents 100% Brand New 1x 0~55MHz DDS Signal Generator * Direct Digital Synthesis HAM Radio VFO Wireless We can also wholesale if you need a large quantity of item please contact us :) Shipping : We only accept your Paypal Address,Please Make sure it's 100% right. The items you ordered will be shipped out in 1 business day by Air Mail when your payment is clear. Country Delivery Time Working Days (not including holiday) 5-7 8-10 11-14 15-19 20-22 >25 Working Days + Saturday + Sunday 5-9 10-14 15-20 21-25 26-30 >35 United States Rate (item arrived) 9% 50% 21% 13% 7% Refund or Resend United Kingdom Rate (item arrived) 10% 62% 20% 3.5% 4.5% Refund or Resend Australia Rate (item arrived) 23% 50% 13% 8% 6% Refund or Resend France Rate (item arrived) 1.5% 20.5% 45% 23% 10% Refund or Resend Germany Rate (item arrived) 5.5% 25% 35% 19% 15.5% Refund or Resend Canada Rate (item arrived) 0.0% 44% 35% 18% 3% Refund or Resend Spain Rate (item arrived) 1.5% 25% 50% 14% 9.5% Refund or Resend Payment : We accept PayPal only. All major credit cards are accepted through secure payment processor PayPal. Payment must be received within 7 days of auction closing. If you have bought multiple items from me, you can send me one payment for all the items instead of paying for them individually. When you click the Pay Now button, eBay will automatically determine if there are other items you have won or purchased from me and will combine them for your review. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help.We will try our best to solve any problem. If you have any questions, please feel free to contact us by ebay message. We will reply you within 48 Hours. Refund&Reship: If you are dissatisfied with our item or service, then please follow the good eBay practice to contact us by ebay message before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner. We always reply to ebay messages within 1-2 business days. If you do not get a response from us, then please check your ebay message. we only reply ebay message, no send email. Original and return shipping fee will not be refunded or reimbursed under all circumstances. You must agree and acknowledge this term if you bid for this item. Therefore, please do not complain about having to ship back at your own expense. Contact US:: If have any question, Please contact us by ebay message(no e-mail). Reply within 24hours. We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	dykb
MPN	dykb
