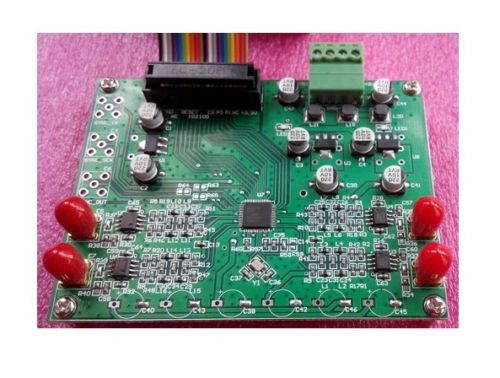

Ad9959 4ch 200mhz Sine Wave Dds Signal Generator Multichannel 500msp Adi

US $104.00

  • Kowloon, Hong Kong
  • Jan 29th

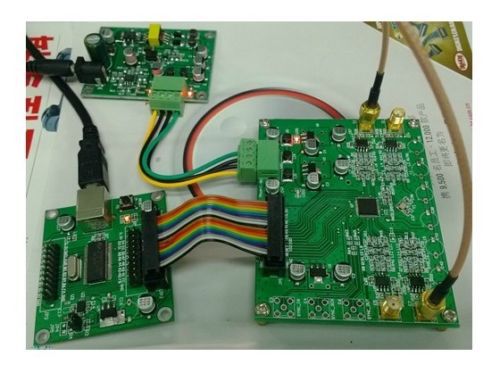

NOTE: AD9958:  2-channel + high-speed USB2.0 panel + ADI original PC software, $79.99/pcs.  AD9959:  4-channel + high-speed USB2.0 panel + ADI original PC software, $104.99/pcs You are bidding a 4-channel AD9959 DDS module, if you need 2-channel AD9958 module. pls contact me. We provide technical support, we can reply you in 24hours and solve your problem in 3 working days. A. Module features AD9958, 2-channel / AD9959,4-channel. 500M SPS, max 200M sine wave outpute. Independent of the frequency, amplitude and phase is adjustable 32-bit accumulator, the frequency resolution is better than 0.12HZ 14 register phase, phase resolution is 0.022 degrees 10 Amplitude register, fine adjustable amplitude 1024 ASK, PSK, FSK modulation powerful features linear frequency, amplitude and phase sweep function independently programmable DAC output current. High-speed SPI communication, save the connection, SPI is the trend Fully compatible with ADI original PC software, which can realize AD9959 chips of all power, control panel using USB2.0 interface, easy to use; Ultra-low power consumption, 4 channel 200 m Signal tone output, power consumption is only 580 mw B. Performance parameters USb control, 5V power supply. high-speed op amp using 1.2G coupled output, the impedance matching, post 200M filter Output frequency: 0 --- 200M, 0.12HZ resolution output amplitude: 0-2VPP@ 1M impedance ,0-1VPP@ 50?  Amplitude flatness :0-100M@ 0.4dB,100M-150M@ 1dB flatness The magnitude of the amplitude can be achieved by 1024 PC software fine adjustable an independent phase adjustment, the fine phase resolution of 0.022 degrees, etc. IQ signal can be realized C. The application of the module the local oscillator; test equipment; the synchronous clock, the high frequency signal source; AD9958 / AD9959 learning module   D. Package contents AD9958 module * 1 control module * 1 USB line * 1  flat cable * 1 PC control software + schematic diagram (PDF) + other data(send you a cloud link and password, download it by yourself) Online Technical support E. Measured waveform Payment We accept Paypal here. Shipping 1. When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within  3 days once your payment is completed. 2. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments. Warranty & Maintenance: We offer the 1-month free replacement.  Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.  We also provide 12-month free maintenance.  The buyer should return the product in the original conditions to us and should bear the shipping costs for return.  If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number.  As soon as we receive the items, we will repair or exchange them ASAP. Contact US 1. Your satisfaction and positive feedback is very important to us.  Please leave positive feedback and 5 stars if you are satisfied with our items and services.2.   If for any reason you are not satisfied with your purchase, please contact us before leaving neutral or negative feedback.  We will do our best to solve any problems and provide you with the best customer services.    Our working time: Monday to Friday, 9:00 am to 8:00 pm (GMT+8)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Model AD9959
