Adafruit Hdmi 5" Inches 800x480 Display Screen Lcd With Touchscreen Raspberry Pi

US $69.95

Carrollton, Texas, United States
Jan 29th

Open on mobile:
QR code

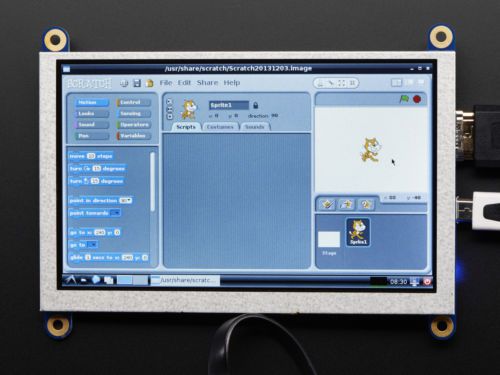

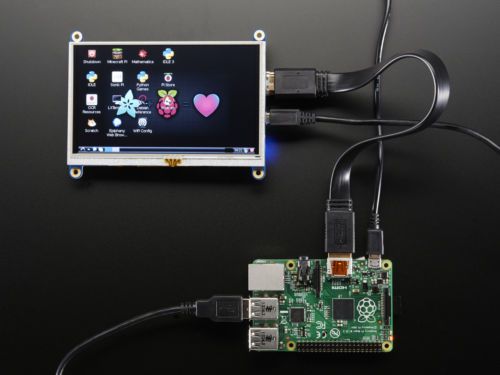

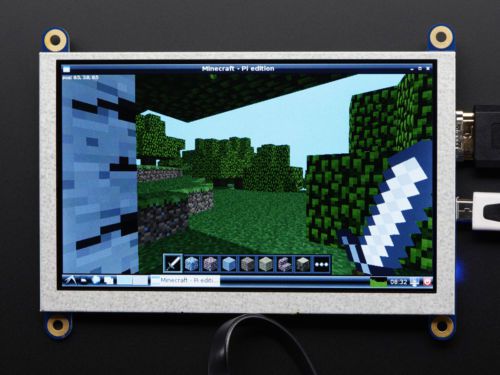

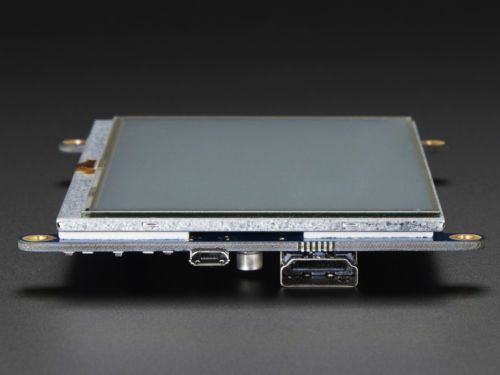

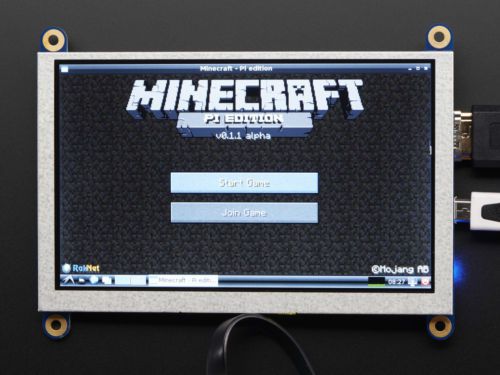

Atoms Industries Adafruit HDMI 5" 800x480 Display Backpack - With Touchscreen Details: Screen Resolution800x400 Screen Size 5 Inches Diagonally Touch Screen Type Resistive Touch Screen - Shows up as a USB mouse Description It's a mini panel-mountable HDMI monitor with a built-in touchscreen! So small and simple, you can use this display with any computer that has HDMI output, and the shape makes it easy to attach to a case or rail. This backpack features the TFP401 for decoding video, and includes the attached display so its plug-n-play. The TFP401 is a beefy DVI/HDMI decoder from TI. It can take unencrypted video and pipe out the raw 24-bit color pixel data - HDCP not supported! The 5" display is 800x480 resolution, which is just enough to run most software, but still small enough that it can be used in portable or embedded projects without the bulk. You can even power the entire display from a USB port. With the default 5" 800x480 display and 50mA backlight current, the current draw is 500mA total. You can reduce that down 370mA by running the backlight at half-brightness (25mA). With the backlight off, the decoder and display itself draws 250mA. If you want more backlight control, there's a PWM input, connect that to your microcontroller or other PWM output and you can continuously dim the backlight as desired. This version has touch screen capability. The touch screen shows up as a USB mouse so you can use it with any computer, no special drivers needed. In particular, we suggest it for use with single board computers (or desktop/laptops!) with DVI/HDMI output like the Raspberry Pi or BeagleBone Black. You can power the driver over USB as long as your computer can supply 500mA on the USB port, and then feed it video via the HDMI port. Please note the TFP401 decoder chip does not contain a video scaler, it will not resize/shrink video! Notes and Resources Decoder chip does not contain a video scalerIt will not resize/shrink your video HDCP not supportedYou probably won't be able use this with your Blu-ray Raspberry Pi is not includedBut you can grab one here Cables are not included What's included 1x HDMI 5" 800x480 Display Backpack - With Touchscreen You may also like... Whould you like some Pi with that? Pick up a Raspberry Pi Model B+ If the Beaglebone Black is more your style... Pick up a Beaglebone Black Rev C FAQ Do you offer combined shipping? Combined shipping discounts are provided automatically through the Add To Cart feature. Most additional items added to the cart ship at a highly discounted rate. Be sure to check out the Atoms Industries Store, the more you buy the more you save! Payment Policy Paypal, credit card (Paypal account is not required), and any other option Paypal offers you are accepted. Order must ship to a confirmed address, otherwise payment will be refunded and order cancelled. Immediate payment is required. Shipping Policy You can not change your address after you have placed your order. Please check that your address is correct. Orders ship on the same or next business day. On most Saturdays too, but there is no guarantee on that. 99.9% of the time the day the label is created is the day the post office gets your package. Return Policy Returns are accepted only if the item has not been damaged or opened. The item must be returned in resalable condition within 14 days of delivery. Buyer pays return shipping. "Return to sender" packages will not be refunded shipping costs. Atoms Industries About us Since starting in 2012 Atoms Industries has come a long way. Even though it is very much a small business, it is my only business. I use every working moment I have to make this the company I have always wanted I worked for. The kind of company I would happily give my business. -Ben

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Adafruit Industries
MPN	2260
Model	HDMI 5" 800x480 Display Backpack With Touchscreen
