ADAM RITE POWER SUPPLY MODEL PS-LR 29-0624 AND BBK-LR Battery Backup BoardS, US $175.00 – Picture 0

ADAM RITE POWER SUPPLY MODEL PS-LR 29-0624 AND BBK-LR Battery Backup BoardS, US $175.00 – Picture 1

ADAM RITE POWER SUPPLY MODEL PS-LR 29-0624 AND BBK-LR Battery Backup BoardS, US $175.00 – Picture 2

ADAM RITE POWER SUPPLY MODEL PS-LR 29-0624 AND BBK-LR Battery Backup BoardS, US $175.00 – Picture 3

Adam Rite Power Supply Model Ps-lr 29-0624 And Bbk-lr Battery Backup Boards

US $175.00

Tucson, Arizona, United States
Jan 29th

Open on mobile:
QR code

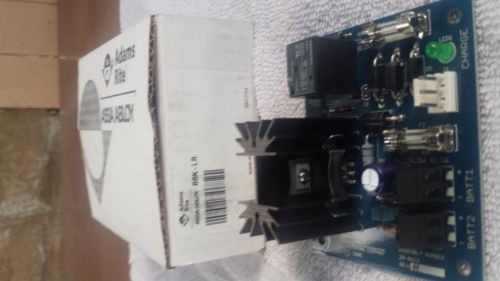

$200 for power supply and back up board together power supply $175 back up board $ 75 Back up board details: • Add-on board to the PS-LR • Must be supplied with 2 each 12V – 7AH batteries (by others). Manufacturer Adams Rite ASSA ABLOY Model BBK-LR Input Voltage 12 VDC U.L. Listed UL Listed Weight 0.5000 Power Supply: Open Hold Times The PS-LR has two open hold timers. Hold- open time settings are adjustable from 2-60 seconds. Enclosure Hinged, steel cabinet measures 10” x 10-3/8” x 4-1/8”. Blue, baked enamel finish, with knockouts for conduit connections. Sized to accommodate 2 sealed lead acid batteries (7AH, not included). Description This Adams Rite Power Supply is required for the Electric Latch Retraction option on the Vertical Rod and Mortise types of exit devices. It operates at 28 VDC to power up to two LR exit devices in sequential or independent modes. The PS-LR is also equipped with a fire alarm disconnect interface circuitry. Linear Power Supply with optional battery back- up for Vertical Rod and Mortise type exit devices with Electric Latch Retraction (LR) option. Input Power 115 VAC or 230 VAC, 0.7A/0.4A Primary Fuse The PS-LR has two user serviceable fuses: F1: Transformer output: 6.3A/250V 5x20MM F2:Transformer input: 3.15A/250V5X20MM Operating Modes The PS-LR is designed to power up to two 3000LR or 8000LR exit devices in the operating modes. Sequential Mode – A single input switch (Dry Contact) operates two devices in sequential operation. Ideal for a double-door setup. Independent Mode – Each LR exit device is controlled by its own input switch.
