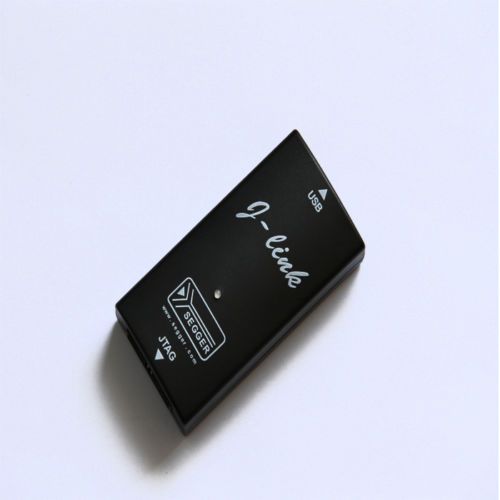

Adapter Emulator, Jlink J-link V9 Emulator Jtag Interface Instead Of V8

US $15.00

Shanghai,China, default, China
Jan 29th

Open on mobile:
QR code

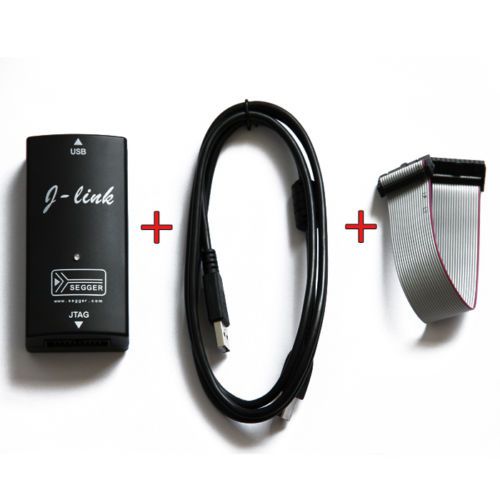

List of spare parts: 1, the J-LINK V9 emulator (full version) 1 2, the high quality USB A-B line 1 3, 20PIN high quality connection line 1 Specifications * GeneralMechanicalAvailable InterfacesJTAG/SWD Interface, ElectricalJTAG/SWD Interface, Timing Supported OS Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows XP x64 Microsoft Windows 2003 Microsoft Windows 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Windows 7 Windows 7 x64 Windows 8 Windows 8 x64 Linux Mac OSX 10.5 and higher Electromagnetic compatibility (EMC) EN 55022, EN 55024 Operating temperature +5°C ... +60°C Storage temperature -20°C ... +65 °C Relative humidity (non-condensing) Max. 90% rH Size (without cables) 100mm x 53mm x 27mm Weight (without cables) 70g USB interface USB 2.0 Target interface JTAG 20-pin (14-pin adapter available) Power supply USB powered Max. 50mA + Target Supply current. Target interface voltage (VIF) 1.2V ... 5V Target supply voltage 4.5V ... 5V (if powered with 5V on USB) Target supply current Max. 300mA Reset Type Open drain. Can be pulled low or tristated. Reset low level output voltage (VOL) VOL <= 10% of VIF For the whole target voltage range (1.2V <= VIF <= 5V) LOW level input voltage (VIL) VIL <= 40% of VIF HIGH level input voltage (VIH) VIH >= 60% of VIF For 1.2V <= VIF <= 3.6V LOW level output voltage (VOL) with a load of 10 kOhm VOL <= 10% of VIF HIGH level output voltage (VOH) with a load of 10 kOhm VOH >= 90% of VIF For 3.6 <= VIF <= 5V LOW level output voltage (VOL) with a load of 10 kOhm VOL <= 20% of VIF HIGH level output voltage (VOH) with a load of 10 kOhm VOH >= 80% of VIF JTAG speed Max. 15MHz SWO sampling frequency Max. 7.5MHz Data input rise time (Trdi) Trdi <= 20ns Data input fall time (Tfdi) Tfdi <= 20ns Data output rise time (Trdo) Trdo <= 10ns Data output fall time (Tfdo) Tfdo <= 10ns Clock rise time (Trc) Trc <= 3ns Clock fall time (Tfc) Tfc <= 3ns * J-Link hardware revision 8 and up J-Link JTAG/SWD Emulator with USB interface J-Linkis a USB powered JTAG emulator supporting a large number of CPU cores. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in tens of thousand places for development and production (flash programming) purposes. J-Link is supported by all major IDEs such as IAR EWARM, Keil MDK, Rowley CrossWorks, Atollic TrueSTUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others. Including all models, more than 100,000 J-Links have been sold so far, making J-Link probably the most popular emulator for ARM cores and the de-facto standard. Features Direct download into flash memoryof most popular microcontrollers supported Supported CPUs: Any ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M1/M3/M4, Cortex-R4, RX100/RX200/RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N Download speed up to 1 MByte/second Supportsunlimited breakpointsin flash memory!1More info... Setting breakpoints inexternalflash memory of Cortex-M systems is possible with J-Link'sUnlimited Flash Breakpointstechnology only! Supported by all major IDEsMore info... Free software updates2, 1 year of support Supports concurrent access to CPU by multiple applications3 Crossplatform support (runs on Windows, Linux, Mac OS X)4 Intelligence in the emulator firmwareMore info... Remote Server included. Allows using J-Link remotely via TCP/IPMore info... GDBServer includedMore info... Production flash programming software (J-Flash) availableMore info... Software Developer Kit (SDK) availableMore info... Supports multiple target interfaces: JTAG, SWD Supports SWV/SWO (Serial Wire Viewer / Serial wire output) Wide target voltage range: 1.2V - 3.3V, 5V tolerant Supports JTAG chains with multiple devices Embedded Trace Buffer (ETB) support Various target adapters available, including optical isolation adapter.More info... RDI interface DLL available.More info... Fully plug and play compatible No power supply required, powered through USB Support for adaptive clocking All JTAG signals can be monitored, target voltage can be measured Target power supply: J-Link can supply up to 300 mA to target with overload protection

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ZH
Country/Region of Manufacture	China
