Ade Technologies 3810 Capacitive Gage Master & Slave System Interferometer

US $1,999.99

Phoenix, Arizona, United States
Feb 27th

Open on mobile:
QR code

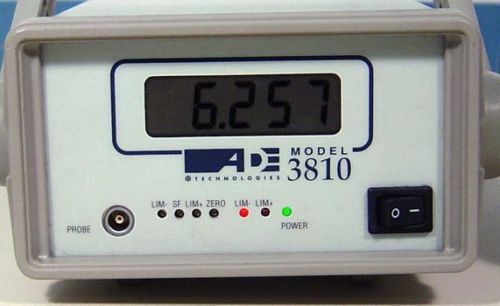

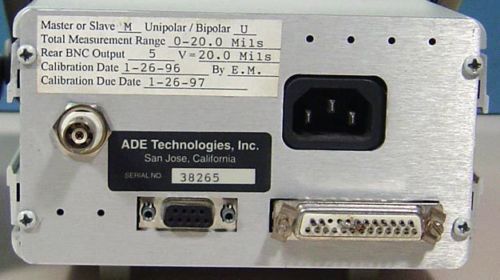

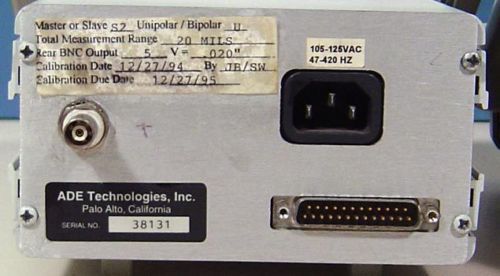

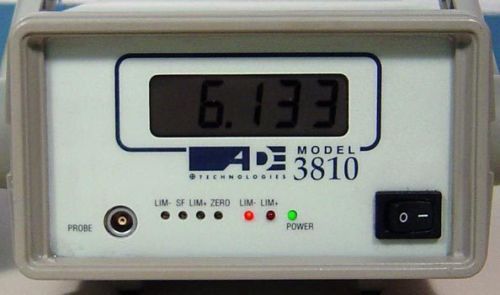

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! ADE Technologies 3810 Capacitive Gage - Master & Slave System Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from ADE and may vary slightly due to upgrades, options, or revisions this unit may or may not have. They both power up and work. There are no probes included. List Price for each Unit was: $2,995.00 NEW The Master Unit's Serial Number Tag Reads: Serial Number: 38265 Master or Slave: M Unipolar / Bipolar: U Total Measurement Range: 0 - 20.0 Mils Rear BNC Output: 5 V=: 20.0 Mils Calibration Date: 1-26-96 By: E.M. Calibration Due Date: 1-26-97 The Slave Unit's Serial Number Tag Reads: Serial Number: 38131 Master or Slave: S2 Unipolar / Bipolar: U Rear BNC Output: 5 V=: .020" Calibration Date: 12/27/94 By: JB/SW Calibrate Due Date: 12/27/95 Features: Nanometer resolution for ultra-precise measurements Exceptional temperature stability for a wide variety of environmental measurement applications Wide variety of precision capacitive sensors for measuring even the most difficult size and shape target Standard analog outputs for easy connection to A/D boards Large standoff distances allow safe gaging of delicate parts Superior price/performance Patented PhaseLock probe driver circuitry for improved accuracy on ungrounded targets and applications such as thickness Selectable filters for maximum resolution: 10Hz, 100Hz, 1 kHz, 5 kHz Probes are interchangeable with straightforward recalibration Portable, lightweight Laser calibration (unit may not have this option) High precision individual unit calibration at factory using ADE developed laser interferometry system. Calibration traceable to NIST. Performance graph included. Description: The 3810 is a single channel instrument that provides a digital display of probe displacement on the front panel LCD display. The 3810 provides analog output via a BNC jack on the rear panel easy connection to oscilloscopes, spectrum analyzers or computer based A/D boards. The 3810, along with the 2800 series family of standard and custom probes, uses an advanced capacitive gaging technology to provide exceptional resolution, large operating ranges and large standoff distances. The large, easy-to-read, front panel display makes the 3810 an ideal production tool for operations requiring visual verification of measurements. Applications: Go/no go gaging Non-contact, non-destructive measurements Precision dimensional gaging X-Y positioning Real-time in-process measurements Slide and spindle runout In-process sheet thickness Vibration analysis Servo-loop positioning systems Wear measurements Performance Specifications: Measurement Range: ±10 microns to ±1000microns full scale, depending on probe selection Measurement Resolution: Typically better than 5 nanometers rms. Actual resolution depends on probe selection, bandwidth and operating range. Resolution improves with larger sensor area, reduced bandwidth and smaller range. Linearity: Standard: Typically better than 0.05% over full scale range, depending on probe model and operating range. Optional: Laser Calibration - Typically better than 0.025% over full scale range, depending on probe model and operating range. (unit may not have this option) Stability: Typically better than 200 ppm per °C over temperature range of 15°C to 35°C. Bandwidth: Preset at 1 kHz. Other selections from 10 kHz to 5 kHz. Note 1: Measurement resolution using Model 2804 2mm active area with operating range ±50 microns, standoff 100 microns, 1kHz bandwidth. Inputs / Outputs Specifications: Probe Input: Single, accepts Series 2800 probe family. Analog Output: Single, preset ±10 volts for full scale range. Drive Synchronization: For multi-unit applications. Uses patented PhaseLock circuitry. Limits: User adjustable digital outputs for detecting overrange and measurement limits. Adjustments / Indicators Specifications: Front Panel Adjustments: Calibration adjustments for scale factor. Offset adjustments for zero setting. Limit settings. Front Panel Indicators: Power, + Limit, -Limit Physical Dimensions: Size (L x W x H): 9 3/8" x 5 1/16" x 1 3/16" (24 cm x 13 cm x 3 cm) Weight: 1 kg (2.2 lbs) - does not include packaging Operating Environment Specifications: Temperature: 5°C to 50°C (41°F to 122°F) Humidity: 0 to 95% RH, non-condensing Power Requirements: 105- 125 VAC, 47- 420 Hz For More Pictures Please Click the Following Links: Picture 2 - Front of the Slave Unit - Up-Close Picture 3 - Front of the Master Unit - Up-Close Picture 4 - Back of the Slave Unit - Up-Close Picture 5 - Back of the Master Unit - Up-Close For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $20.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 08/15/05 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“They both power up and work. There are no probes included.”

Brand	ADE
Model	3810
