Ademco Honeywell Vblx8u Videoblox Video Matrix System Loaded

US $500.00

Heber, Arizona, United States
Jun 9th

Open on mobile:
QR code

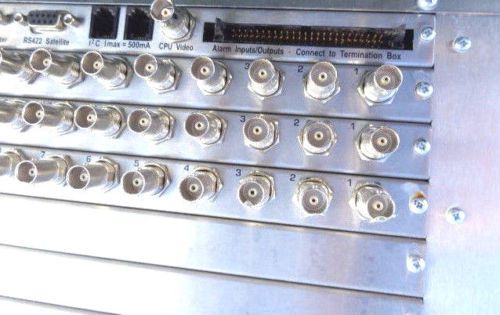

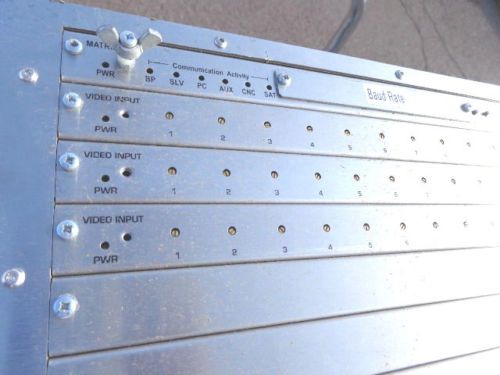

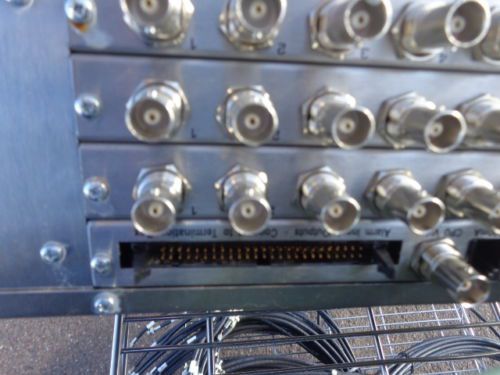

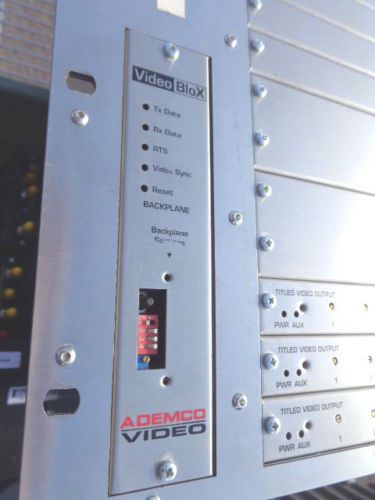

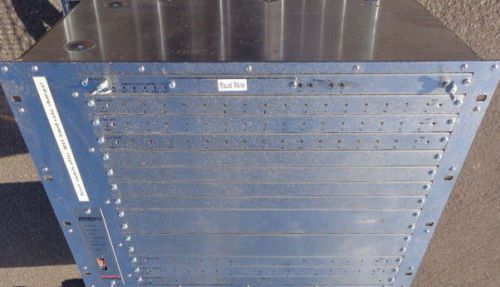

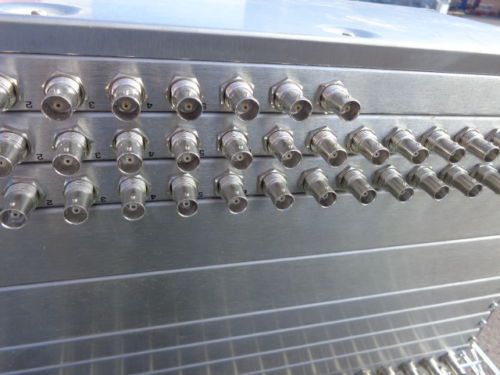

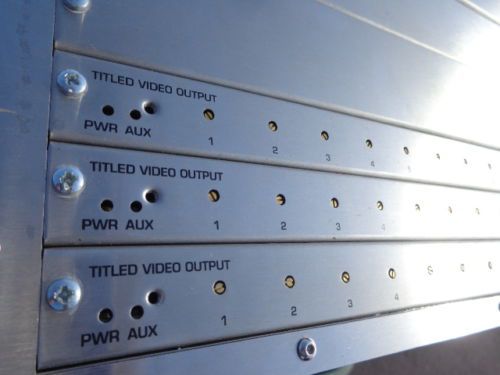

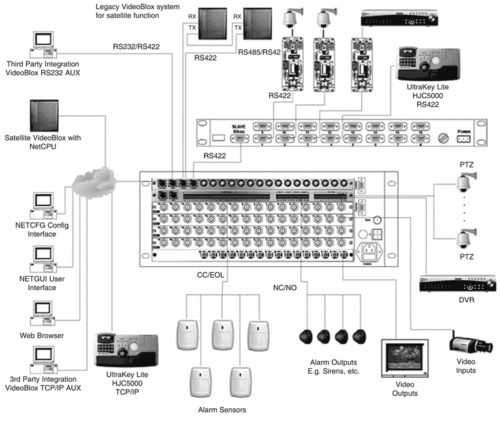

1- MATRIX CPU BOARD 3 INPUT 16 CHANNEL BOARDS = 48 INPUTS 3 OUTPUT 2 16 CHANNEL 1 8 CHANNEL =40 OUTPUTS HVB8UX (PAL) VideoBloX Chassis - 8U, supports 15 modules, maximum size is 208 inputs by 32 outputs or 176 inputs by 64 outputs. Honeywell’s VideoBloX matrix system is a robust video and audio full crosspoint matrix switch that is scalable from small to large applications. The matrix is controlled by a powerful cold fire embedded central processor that also has 16 channels of titled output expandable to 64 within the same chassis. Integration to access control and other systems is possible through a simple auxiliary control protocol. Its compact size and rugged chassis are designed to withstand harsh environments and require limited maintenance. The VideoBloX embedded CPU is a 1/2U size module programmed using Windows-based configuration software. The system is expandable to 1248x256 on one CPU and up to 15 systems can be networked together using RS422 Ethernet and video trunks. A 1024x25 line sequence engine allows for building custom actions based on system events such as alarms, time of day or key presses, or externally triggered through the auxiliary port. The sequence engine allows the use of Flags, IF, ELSE and DO WHILE logic. Both video and audio switching can be performed in the same chassis, allowing for compact design and simplified configuration for video and audio follower matrices. Modules are 1/2U in rack height, position independent and hot swappable. Matrix inputs can either be traditional BNC or Unshielded Twisted Pair (UTP) (RJ45). UTP inputs further simplify system design by incorporating the active UTP receiver and switching hardware on one 1/2U, 16 channel input board. Control of PTZ domes, alarm inputs and relay outputs is done through a General Purpose Input Output (GPIO) card in the chassis. The GPIO card further simplifies design and installation as all field devices can be connected directly to the chassis. For remote protocol translation and alarm I/O, the multipurpose Protocol Interface Translator (PIT) provides this functionality over RS422. The GPIO card and the PIT can be added to interface with serial devices such as DVRs. Features Stainless steel fabrication High density, low profile design Audio, video, PTZ data and alarm I/O in the same chassis Modules are position independent and 'hot-swappable' Redundant power supply available Multiple chassis may be interlinked to create large systems Configuration updates done in real time, without system interruption Powerful 1024x25 line sequence engine for custom event handling Powerful on-screen diagnostic monitoring tools Multi-monitor groups and scenes allow for logical camera selection Embedded CPU controller ensures robust and reliable operation Multiple system CPUs can be networked together via RS422 or LAN Keyboards connect through RS232, RS422 or LAN

“REMOVED FROM A WORKING ENVIRONMENT DUE TO CITY UPGRADING TRAFFIC VIDEO SYSTEM NO FURTHER TESTING”

Brand	Ademco
MPN	VBLX8U
