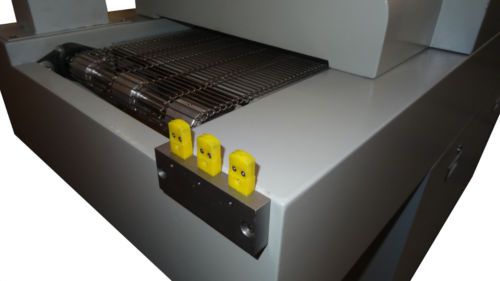

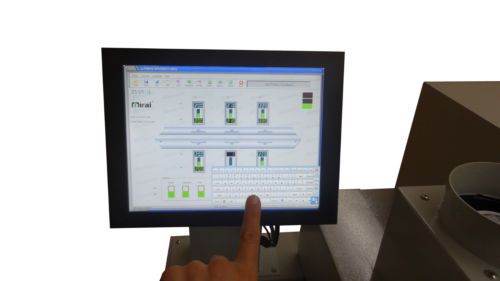

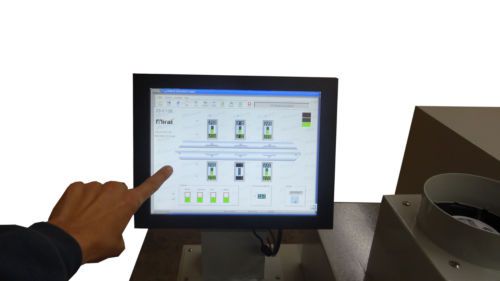

AE-F530C 5 Zone Lead-Free Reflow IR Oven w/ software touchscreen PC You are bidding on stand-alone AE-F530C Fully IR reflow oven w/ touch screen PC including software ! This reflow oven has been built with patented technology. The upper and lower heating zones were designed and manufactured in small air circulation systems in order to achieve high thermal efficiency. It only takes approximately 20 minutes to reach a set temperature from room temperature. The reflow oven uses a low noised high-temperature resistant motor that can directly blow hot air for heating. The air inside the heating zone is equally distributed so that it can be used for heating small components without shifting during the process, such as 0201. A 3-layered air distribution unit with equal air circulation and high thermal capacity was chosen for this reflow oven. The constant temperature area and the soldering area can be heated simultaneously with independent temperature control. The temperature variation at each temperature zone is ± 1°C. There are two compulsory cooling zones inside the oven. The cooling speed can reach -5°C/s, which can meet the requirements of various lead-free production processes. The system is computer controlled. Our software includes powerful dynamic curve analysis functions that can be used for various tests. All of your data can be printed and saved. It also come with a touchscreen PC for the reflow oven software This is a very simple to use yet reliable and easy to maintain reflow oven. It can be used for regular SMT parts as well as BGA's. Please kindly refer to the details as following: Features It adopts patented heating cable technology, independent small cycling air circulation structure and upper and lower heating means; so the thermal efficiency is high; temperature rise is fast; and it takes approximately 20-30min to reach the set temperature from room temperature. The AE-F530C provide 5 IR heating zones and longer heating chamber. Specially designed for Lead free application. It has a built in air circulation provide safe security for 0201 or small component from blowing off your PCB board. Computer controlled. Touchscreen PC Specifications/Paremeter heating zone 3 Top and 2 bottom heating length 44 1/4" cooling zone 2 Max. width of pcb 11" rail adjust range 50-400mm conveyor direction Left to Right conveyor rail fixed front or rear height of conveyor(max height of PCB) 1" transport system mesh conveyor speed 0-2000mm/min power supply 3 phase 220v power of start up 7kw power of consumption of operation approx.2.5kw warm-up time about 20 minutes range of temperature control room temperature-400°C temperature control siemens module precision of temperature control ± 1°C temperature distributing error ± 2°C trouble alarm temperature abnormity board drop alarm option weight approx. 800lbs w/ shipping crate dimension(inches) L74"xW24"xH74" Packing List 1 reflow oven AE-F530C K-type sensor Touchscreen PC including software Payment Details Paypal is the best payment method. Please send your payment to: paypal@omxie.com. We also accept Visa, Master, American Express and Discover card. Please call 1-877-589-9422 to pay with credit card. We require that shipping address matches with your billing address of credit card. Payment must be received within 7 days after auction ends. Shipping Details Shipping UPS ground to 48 continental states costs TBA Shipping to Hawaii, Alaska, PR, APO, FPO add TBA International Bidders Welcome: International packages shipped by Freight Carrier such as DB Schneker or Mainfrieght (Handling & Insurance included). Shipping cost will be determined by country. Shipping to most areas of Canada area: TBA Estimated Shipping cost to West Europe, Australia: TBA Please email for the shipping cost to other countries. Shipping insurance is required for international shipping. Customs duties and brokerage fees might be possible for some countries. They are buyers' responsibility if there are any. S&H charged dose not include any those fees. We combine shipping for multi-item purchase whenever it is possible, charging full S&H for the first item and half of that from the second (smaller) one on. We do not charge any S&H for real small items if they are combined for shipping with large items. Shipping Insurance is included. Breakage in transit will be replaced or refunded to customer's satisfaction. Local Pick-Up is welcome. Please contact us if you would like to schedule pick-up. All local pick-ups are subject to 8.75% California Sales Tax. We will e-mail tracking number after shipping the product. If you do not receive a shipping confirmation email with tracking # within 48 hours, please email shipping@omxie.com or call 1-877-589-9422 8:30 am-4:30 pm Pacific Time MON-FRI for shipping status. If you have any questions about shipping cost please email shipping@smtmax.com or call 1-877-589-9422 Bus. Hr.: 8:30 am-4:30 pm Pacific Time MON-FRI. Additional Information Warranty: All our products carry a standard one year warranty. Service or repair will be done in the US. Consumable parts, like all Heating Elements, will not be covered by this warranty, but replacement parts can be purchased from us. Return and Refund Policies: We stand behind every product we sell. If you are not pleased with your purchase, we'll be happy to make an exchange or refund the product within 7 days of receiving date. Please ship it back to: (Please see below for contact information address) All returned orders are subject to 25% restocking fee, while exchanges or upgrades will receive credit for full purchase price. Shipping and handling charges are not refundable. For any exchange or refund, please contact us first via email at shipping@smtmax.com for return authorization (RMA#). Please also provide us the eBay item # and your eBay user ID. The items must be returned in the original packing box and received in "like new" condition. Please allow up to 10 business days for return to be processed. If your item is damaged during shipping, please report these damages to the shipping company responsible and request a damage claim number and forward it to us. Please also take pictures of the damages and email them to us. We will have the shipping company pick up the damaged package(s). Upon receipt of the claim #, we will ship your replacement items. Defective items can be exchanged within 7 days of receipt. We will ship replacement asap upon receiving returned item and cover standard ground shipping cost for replacement. About us: We engage in research, development and marketing of electronic test and measurement instruments, hot air rework stations, SMT tools and equipment for prototype and small quantity production of circuit boards. We are expanding to biological devices. We also do customer electronic hardware design, software development and outsourcing production. Customer satisfaction is our highest priority. We provide quality products at low prices and excellent services. Contact Us: SMTmax 5675 Kimball Ave, Chino, CA 91710 Toll Free: 1-877-589-9422 Fax: (909) 393-8766 "Your #1 source for SMT Equipment!" | Other Auctions | eBay HTML templates at BiggerBids.com.
