Aeroflex Sti-1000 Satellite Payload Test System 40 Ghz?

US $250,000.00

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

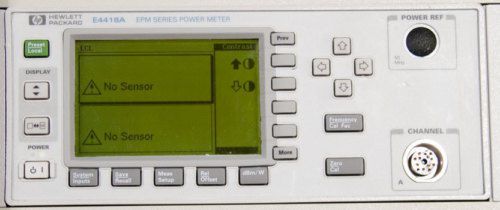

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Aeroflex STI-1000 Synthetic Microwave Satellite Payload Test Instrument System Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Aeroflex and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit powers up and boots in to VXWare software but has errors which I think are related to the power sensor being gone and the unit was looking for a WLAN that it wasn't connected to obviously. All the test equipment seems to pass self tests. This came out of a prominent government defense contractor. It is sold as-is, where-is. Inspection welcomed! Agilent E4418A EPM Series Power Meter: Model Number: E4418A Serial Number: US38261468 Option: 003 Main Firmware: A1.02.00 Main Firmware Date: Mar. 9, 1998 Bootrom Revision: A.01.00 DSP Revision: A.01.10 Gate Array Revision: A.01.03 Agilent E4422B Signal Generator: Model Number: E4422B Serial Number: US38440264 Firmware Revision: B.02.24 Firmware Date: Dec. 18, 1998 Total Hours: 49530.7 Total Hours Display Has Been On: 22032.9 Total Power Cycles: 445 Total Attenuator Cycles: 328645 Racal Dana 1261B VXI Mainframe: Part Number: 407374-001211 Serial Number: 99030012 National Instruments VXIpc-870 Series Controller: Model Number: VXIpc-872 Part Number: 186356A-210 Revision: 002 Serial Number: B4A0B2 Tektronix VX4790A VXI Arbitrary Waveform Generator: Model Number: VX4790A VXI Revision: 1.4 Firmware Revision: 4.2 Hardware Revision: 671-3374-03/671-3375-00 HP E1437A 20 MSa/s ADC+ Filter+FIFO Digitizer: Model Number: E1437A Revision: 1.4 Serial Number: US37430346 Aeroflex/Lintek RF Control Board, Serial Number: 2202-0108 Serial Number: B020853 Comstron FS-5000 Frequency Synthesizer Model Number: FS-5000B Part Number 435-28464 Serial Number: 307 Frequency Range: 4.8 - 20 GHz Options: 501, 502, 905 Comstron FS-5000 Frequency Synthesizer Model Number: FS-5000B Part Number 435-28464 Serial Number: 309 Frequency Range: 4.8 - 20 GHz Options: 501, 502, 905 Lintek/Aeroflex System Power Supply, Serial Number: 2202-007-954 Lintek/Aeroflex 10 MHz Reference, Serial Number: 2202-027-946 Lintek/Aeroflex LO Distribution System, Serial Number: 2202-009-808 Lintek/Aeroflex IF Upconverter, Serial Number: 2202-018-755 Lintek/Aeroflex Downconverter, Serial Number: 2202-004-737 Lintek/Aeroflex RF Upconverter, Serial Number: 2202-017-737 Lintek/Aeroflex Local Calibration Unit, Revision: C, Serial Number: AL00430005 Lintek/Aeroflex RF Multiplexer, Serial Number: AL0010003 Lintek/Aeroflex Digital Subsystem, Serial Number: 2202-020-991 Link to the Datasheet: Aeroflex STI-1000 Satellite Payload Test Instrument Datasheet Link to the Datasheet: Aeroflex/Comstron FS-5000 Frequency Synthesizer Datasheet Features: 1 Million Samples per Second 20 Thousand Frequencies per Second Real-Time DSP Produces Results Fast Test Integrated Reduces Data Requirements Calibration Plane Moved to the Payload Real-Time Calibration While Connected Imbedded Functional Tests Frequency Coverage of All Satellite Bands Synthetic Architecture "Programmable Firmware" WAN and LAN support Multiple Satellite Interconnect Points Open-Architecture for Easy Upgrades Full Range of Communications Tests Analog or Digital Modulation Schemes Satellite Payload Test Instrument: The STI 1000 is a synthetic microwave test system optimized for testing satellite payloads in a factory setting. The STI 1000 can be used either as a stand-alone instrument or controlled by an external network as part of enterprise-wide factory automation. The STI 1000 is designed to dramatically improve integrated payload test times and reduce measurement errors introduced by either the operator or the test hardware. Through its digitally synthesized stimulus and response system design, the STI 1000 can easily be configured both in hardware and software to meet specific user requirements. Typical System Level Specifications (These are for Sure Different, so Please Inspect or Use the System Information I provided to Understand!): Frequency Coverage: 0.200 - 32 GHz (Up to 110 GHz Optional from Aeroflex) Coherent - I believe this unit is 4.8 - 40 GHz based on the Synthesizers) 1 or 2 Hz Resolution Number of Ports: 32 Up Link / 32 Down Link (Up to 4 Remote Calibration Units) Stimulus Power: Maximum Output: -65 dBm (at RCU), 0 dBm (at Rack) Range: -5 to +53 dBm Settability: ±0.25 dB Response Power Measurement: Range: -5 to +53 dBm Dynamic Range: 75 dB instantaneously RSS Uncertainty: ±0.25 dB from 0.2 to 18 GHz, ±0.4 dB from 18 to 32 GHz Noise Power: Resolution: 0.1 dB RSS Uncertainty: ±0.25 dB 1-15 dBkTB Frequency Measurement: Resolution: 0.1 dB Resolution 1 or 2 Hz RSS Uncertainty: ±0.001 PPM Description of the Synthesizers from the Factory: Comstron FS5000B-18 18 GHz Synthesizer (each unit) Option 501: 1 Hz. Frequency Resolution Option 502: 10 MHz Phase Lock Capability, Internal reference can be phase locked to 10 MHz Signal at 0 dBm ±2 dBm (Provides External 10 MHz ±2 dBm) Option 905: 19" Standard equipment rack mounting slides. For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Front View, Cabinet Doors Open Picture 4 - Back View, Cabinet Doors Open Picture 5 - VXI Mainframe Chassis, Up-Close Picture 6 - Comstron FS-5000 Frequency Synthesizer #1, Up-Close Picture 7 - Comstron FS-5000 Frequency Synthesizer #2, Up-Close Picture 8 - HP E4422B Signal Generator, Up-Close Picture 9 - HP E4418A EPM Power Meter, Up-Close Picture 10 - Connections on the Back $250.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. If you have any questions please email us at: ebay@mhzelectronics.com or call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 11/29/10 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...

Manufacturer

Aeroflex
