Agiecharmilles Cut20 Wire Edm

US $69,500.00

Apex, North Carolina, United States
Apr 24th

Open on mobile:
QR code

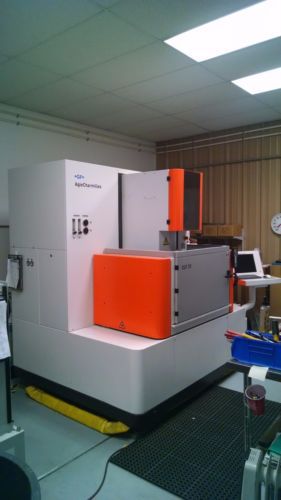

2008 AGIECharmilles Cut20 Wire EDM (#1392) DESCRIPTION: 13.78” x 9.84” x 9.84” Travels CNC Submerged wire EDM with Agie Charmilles PC Based CNC Controller, Fully submerged cutting Capabilities for parts up to 33.43” x 26.77” x 9.84”, 0.1 Micron (0.000004” Glass Scale Feedback), 25° Taper Cutting Capacity, Auto Thread/Rethread, Chiller and Transformers GENERAL SPECIFICATIONS Machine dimensions (L x W x H) 98.5 x 98.5 x 86.6 Work zone Max. inside dimensions (L x W x H) in 41.3 x 30.1 x 22 Maximum workpiece size in: 33.43 x 26.77 x 9.84 Maximum workpiece weight lb 882 Table size 27.55 x 18.89 Angle of tank door ° 180° Distance between table surface and floor: 41.70 Axis Travel X/Y/Z: 13.78 x 9.84 x 9.84 Travel U/V mm in ±1.77" Measurement device Glass scales (XY) / encoder (UVZ) Glass scales (XY) / encoder (UVZ) Minimum resolution ?m ?in 0.1 Taper cutting Maximum taper angle Angle/Height: ± 25°/3.5 Wire drive system Possible Wire guide diameters ? in: 0.006, 0.008, 0.010, 0.012" Spool weight lb: 8 or 11lb Spool Wire tension N 3 ~ 30 Wire speed in/s: 1.18~13 30 Wire threading Type: Automatic Dielectric unit Capacity of clean water tank: 53 Gals. Capacity of dirty water tank: 158.5 Gals # of Filter cartridges: 2 Filter cartridge (Height/diameter) in: 17.71 x ? 13.38 Capacity of deionizing bottle gal 5.3 Generator Maximum current: 35 Amps Control system Pentium Intel Pentium Based Swivel base/Machine Mounted Hard disc GB >/= 40 Display: 15” LCD Operating system: Windows Controlled axes: 5 Communication Options: USB, MDI, LAN port 3D/2D graph check/scale/move function: Yes Machine floor space 137.8 x 137.8 Machine weight (Without Water) 6613 LBS INCLUDES: Chiller, Manuals, Software, Remote Operators Pendant, Power Failure Protection, Transformer, Spare Resin, New Unused Wire, New Filters, New Contacts and Many, Many More Consumable Parts new and unopened. Price: $69,500 NEED MORE INFO ABOUT THIS MACHINE? Call Dave Wearing at 813-444-4558 OR CLICK HERE TO EMAIL See Videos of this System in Action CUTTING PART 1, CUTTING PART 2, WIRE CUT, THREAD, RETHREAD, Want to be notified about New Machinery? Click here to be added to our monthly Newsletter Need financing or have questions about our rates available for this machine just click here! Terms: Offer is subject to withdrawal and prior sale. Price excludes all applicable taxes, de-installation, rigging/loading and shipping, all of which will be Buyer's responsibility. Risk of loss and title pass on floor at current location of equipment immediately upon transfer of funds. All orders and agreements made by sales representatives are subject to approval by an authorized officer of the seller. Seller has no direct knowledge regarding prior use, maintenance, condition or usability for buyers purpose, therefore Buyer agrees to inspect the equipment, and verify that it meets their needs and desires. Descriptions of condition of the equipment are not warranties. Descriptions are intended only as a guide as a courtesy and their accuracy is not guaranteed. Buyer agrees to verify sell items, descriptions etc. prior to purchase for his use. All equipment is to be sold AS IS, WHERE IS, WITH ALL FAULTS, and with no warranties of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Seller will not be liable for any incidental damages, consequential damages, or lost profit damages, including any damages relating to delayed delivery, and any damages shall be limited to the price paid to Seller. Buyer and/or users shall be responsible to provide proper safety devices, equipment and training, and to comply with all governmental (local, county, state or federal) industry, of company required safety standards, including, but not limited to ALL OSHA standards. Buyer shall defend and indemnify Seller and Seller's sales representatives from any claims or liabilities arising from the set-up, operation or other use of the equipment. Any claims against Seller shall be heard in Florida courts without a jury, and be decided under Florida State law.
