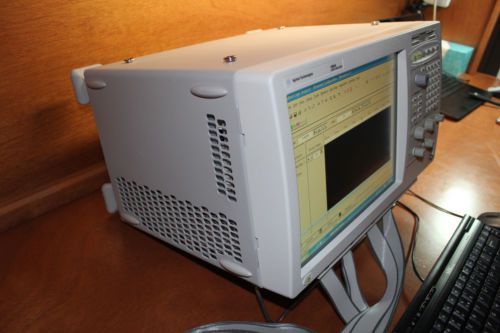

Agilent 1680a 136 Channel Logic Analyzer, Complete System, Tested, W/probes

US $2,799.00

Chandler, Arizona, United States
Jan 29th

Open on mobile:
QR code

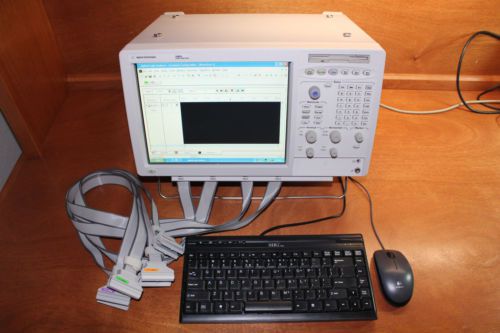

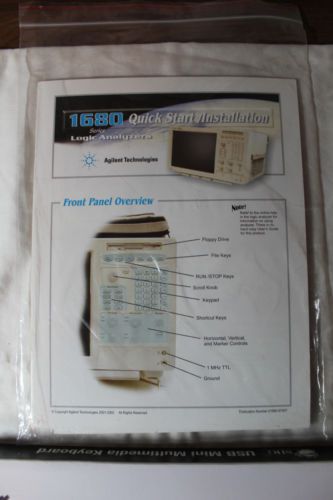

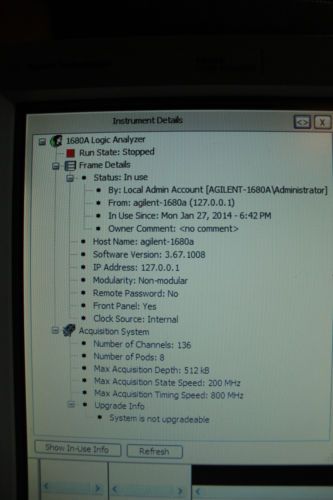

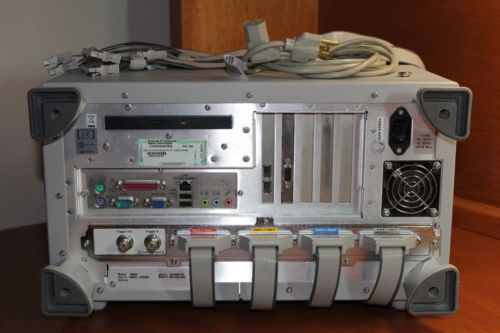

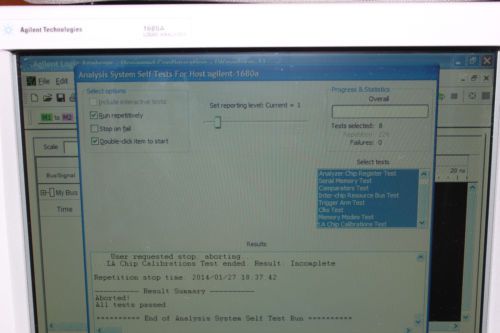

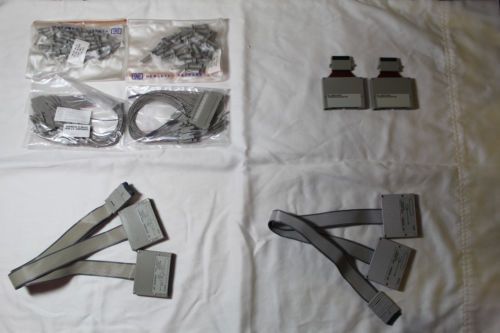

Agilent 1680A 136 channel Logic Analyzer, COMPLETE, TESTED SYSTEM (see my other auctions for more models) Logic Analyzer Configuration 136-channel portable logic analyzer 800 MHz / 400 MHz (half/full-channel) conventional timing, 1M / 512K memory depth 200 MHz transitional timing, 256K memory depth 200 MHz state analysis, 256K memory depth Included in this auction: ? Agilent 1680A with cables for pods 1-8 ? Probes (buyer's choice) ? New USB Keyboard & Mouse ? Torx T10 screwdriver (for attaching the pod cable) ? CDs for reinstalling the software and manuals in PDF form ? Power cord This is a COMPLETE, turn-key machine with everything needed to begin probing. I refurbished, cleaned and tested this system myself. It has a new RTC battery and hard drive with version 3.67.1008 of the software. I also added a 4 port USB2.0 card. It passes over 100 iterations of the built-in self-test. I also tested all of the digital inputs/clocks as well as just about everything else PC-related. See below for the details of what was tested and the results (all of the logic analyzer functionality passed). Since I don't know how you intend to use this system, I'm trying something different and letting you select the probes. There are 8 pods on this machine. Each Mictor adapter requires two pods, termination adapters and flying leads only require one. Included with your purchase is your choice of probe set(s) to complete your configuration. Choose any combination of 4 of the following (ie. 2 of A and 2 of D, or 4 of A, or 1 of B and 3 of C, etc) and email your selection to me via Ebay’s “contact seller” feature. Additional probe set(s) may be purchased for $50 each (A, B, C or D), subject to availability. A) E5346A Mictor Probes (built-in terminators) (used/tested) B) E5351A Mictor Probes (unterminated) (used/tested) C) 2 sets of 01650-63202 Termination Adapters (used/tested) D) 2 sets of 01650-61608 Flying Leads (new) and 2 bags of grabbers (may be new/used) Physical condition: Only minor paint scratches. Tests performed: ? 128 digital inputs [PASS] ? 8 clock inputs [PASS] ? external trigger in [PASS] ? external trigger out [PASS] ? 1.843MHz clock out on front panel [PASS] ? keypad [PASS] ? built-in display [PASS] ? floppy drive [PASS] ? CDROM [PASS] ? motherboard VGA out [PASS] ? addin PCI VGA card [PASS, only supports mirror mode] ? Ethernet [PASS] ? serial port [PASS] ? 2 PS2 ports [PASS] ? 2 Firewire ports [PASS] ? 2 USB ports [PASS] ? 4 USB 2.0 ports [PASS] ? game port [not tested] ? parallel port [not tested] ? audio in/out [not tested]

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Agilent / HP
MPN	1680A
Model	1680A
