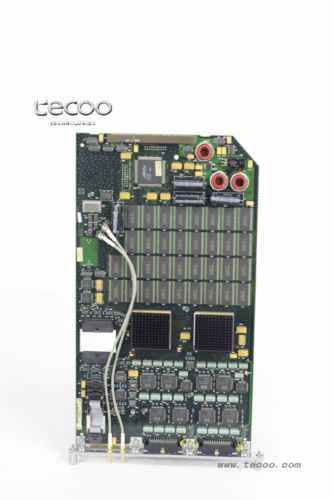

Agilent/HP 16555A 68 Ch State/Timing Logic Analyzer Card, US $200.00 – Picture 0

Agilent/HP 16555A 68 Ch State/Timing Logic Analyzer Card, US $200.00 – Picture 1

Agilent/hp 16555a 68 Ch State/timing Logic Analyzer Card

US $200.00

Hongkong, Hong Kong
Jan 29th

Open on mobile:
QR code

Tecoo Technology www.tecoo.com Condition Full tested and good working Feature •10-MHz state and 500-MHz timing acquisition speed • 64 data channels/4 clocks expandable to 200 data/4 clock channels • Minimum state clock pulse width: 3.5 ns • Threshold accuracy: ± (100 mV + 3% of threshold setting) • Lightweight passive probes for easy hookup and compatibility with previous HP logic analyzers and preprocessors • HP-IB and RS-232-C interface for programming and hard copy printouts • Variable setup/hold time, 3.5-ns window • External arming to and from other modules through the intermodule bus • 1-M deep memory on all channels with 2 Mbytes in half-channel modes • Marker measurements • 12 levels of trigger sequencing for state and 10 levels of sequential triggering for timing • Both state and timing analyzers can use 10 pattern resource terms, two range terms, and two timer/counters to qualify and trigger on data. The timing analyzer also has two edge terms available • Time (8-ns resolution) and number-of-qualified-states tagging • Maximum time count between states: 34 seconds • Maximum state tag count: 4.29 x 109 • Full programmability • Mixed state/timing and state/state (interleaved) display • Sample period accuracy: 0.01% of sample period • Channel-to-channel skew: 2 ns typical • Time interval accuracy: ± (sample period + channel-to-channel skew + 0.01% of time interval reading) • Waveform display Payment 1. All values are in USD. Customs duties & taxes and other surcharges are not included in rates. 2. Payment must be received within 7 days from the close of auction. 3. The Buyer has to pay for the amount of the item, Freights, packing and handling fees. 4. We accept the following methods of payment: Paypal Payment/ Wire Transfer/Cash. Shipping 1. We ship all Ebay items using our FedEx account. 2. Will ship worldwide. Will ship out within 2 days upon payment received. 3. Freights has to be on Buyer except for the items already including the freights. Warranty (30 days) & Return Policy 1. Return policy for the item can't power on, can't pass self-test or not as described as what the item listing is. 2. During the warranty date, the buyer can return the item or ask for exchanging the item if something's wrong with the item or buyer is unsatisfied with the item, (we are not promise that we will exchange for all items, it depends on if we have the goods in stock), the back freight is on buyer, re-shipped frieght is on seller. 3. The return item has to be the original packing and the item with the cover sheet. 4. Returning an item we do not refund shipping/handling or bank fees. You are responsible for returning the item and paying for return shipping. 5. Type of refund depends on paid, will complete within five working days after we receive the return item.

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...

UPC

Agilent/HP 16555A 68 Ch State/Timing Logic Analyzer Card
