Airpax 25a Fully Sealed Aircraft Circuit Breaker Toggle Switches, Ap7-1r-36516-1

US $19.95

Springfield, Tennessee, United States
Jan 29th

Open on mobile:
QR code

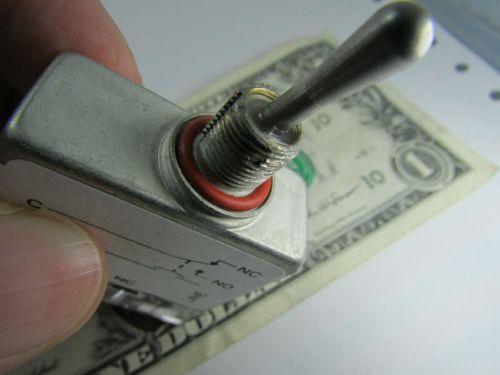

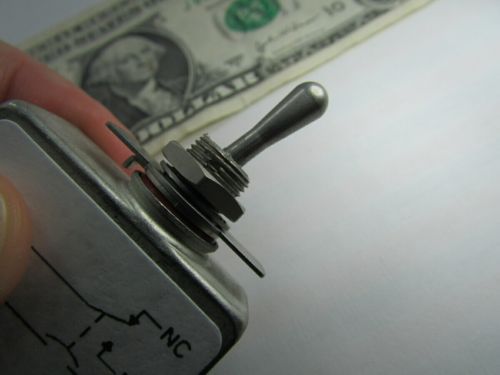

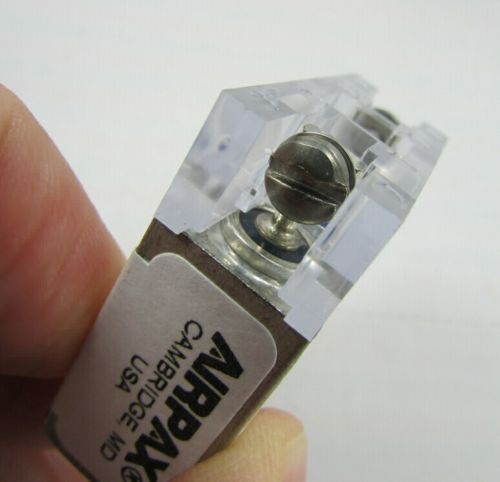

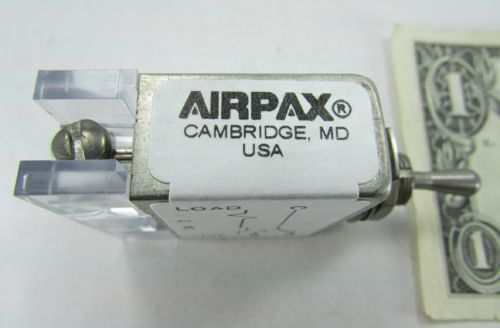

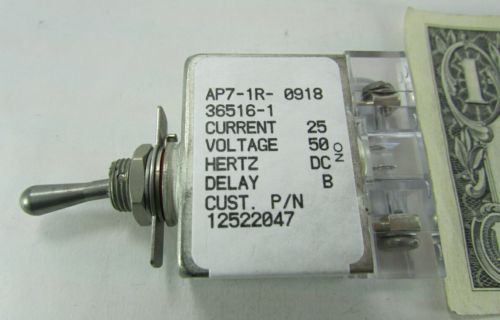

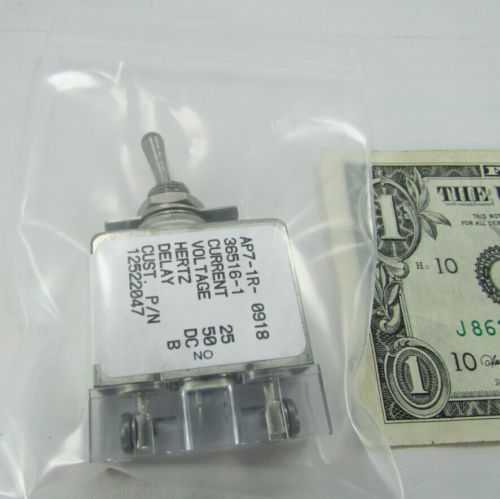

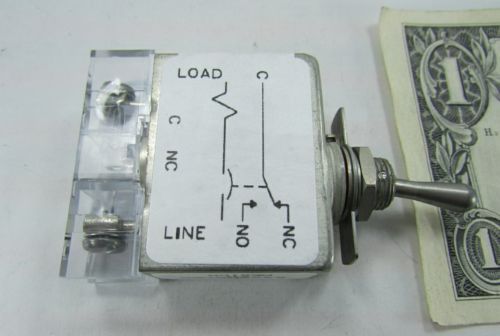

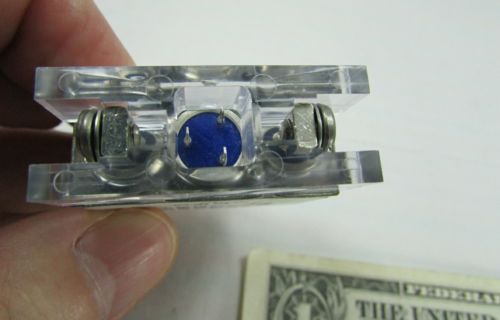

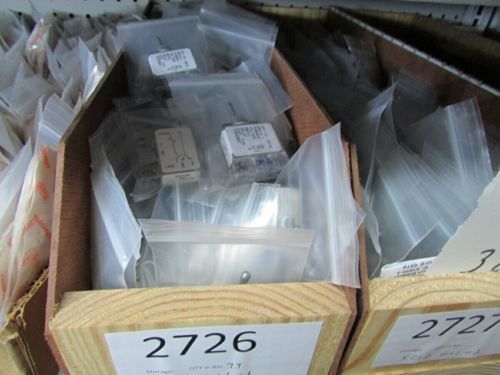

2726XC1D.14 New Airpax / Sensata 25A Fully Sealed, DC Aircraft Magnetic Circuit Protectors, Breakers, Toggle Switches, With Mounting Hardware; Part Number AP7-1R-36516-1, Customer Part Number 12522047. Each bid quantity is for One (1) Circuit Protector Switch. You may bid / buy any number, up to the total quantity available above. These were purchased at an industrial liquidation earlier this year, and they were brand new in the original factory boxes. We packaged them in heavy Ziplok bags for resale. We don't know all of the specs, but they appear to be DC rated and super-waterproof. Should make a really rugged switch for ordinary household applications. The terminals are sealed, the toggle is sealed, and there is even an o-ring made into body to prevent water from leaking past the threads. If you Google this part number, you will find them listed for about $120 each when you buy in large quantities, and up to $300 for onesies and twosies. If you have a connection with a large supplier, then you can make a fortune on these.The manufacturer's full datasheet (small PDF file) is located at:http://airpax.sensata.com/pdfs/apup.pdf The part number (AP7-1R-36516-1) breaks down as follows:AP: Fully Sealed Magnetic Protector7: Single pole unit,mounted with 3/8 threaded bushing1R: Series with Auxiliary Switchwith pierced pin terminals36516-1: Has something to do with the Hz, Delay, and Nominal Amperage, but we couldn't exactly figure it out. From the manufacturer:INTRODUCTION The Airpax™ AP series are fully sealed, magnetic circuit protectors that combine power switching and accurate, reliable circuit protection with inverse time delays and trip free features. Unlike a thermal circuit protector, the AP does not change its trip current over a wide temperature span. In addition, the AP magnetic circuit protector is available in either DC, 50/60Hz or 400Hz versions and with various delays to match the protector to specific application requirements. One of the most important features of this protector is the "trip free" action, which means the circuit will not remain closed in the presence of an overload even though the handle is held in the ON position. The delay mechanism senses the fault and the contacts open. Waterproof panel integrity is provided by an "O" ring bushing seal and a silicon rubber gland within the bushing/handle assembly. Salt spray testing per MIL-STD-202, Method 101, Test Condition B, with no evidence of corrosion, electrical or mechanical damage. Typical applications include communication, navigation and aircraft instrumentation, radar and power supplies. According to the calipers: Overall length: 2.676" / 67.97 mm Length (excluding toggle): 2.064" / 52.43 mm Length (excluding threads): 1.688" / 42.87 mm Width: 1.544" / 39.22 mm Thickness: .623" / 15.84 mmThread diameter (mounting hole size required): .367" / 9.32 mm

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Airpax / Sensata
Operation	ON-OFF
Model	AP Series
SELLER LOCATION	USA
MPN	AP7-1R-36516-1
End Use	Aircraft, Military, Avionics
Country/Region of Manufacture	United States
Trip Type	Magnetic
Max Amps	25

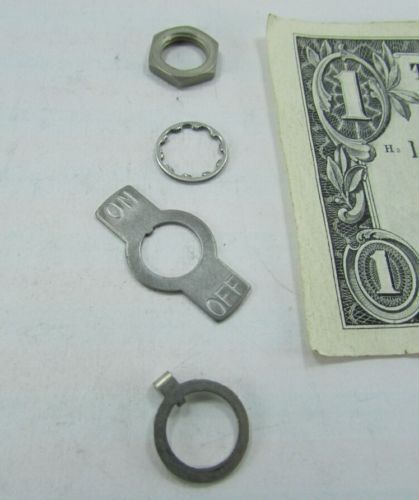

Accessories	Mounting Hardware
Environmental	Sealed
Terminals	Screw
Actuation	Toggle
Current	DC
