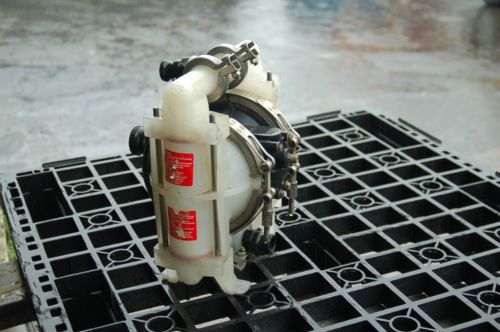

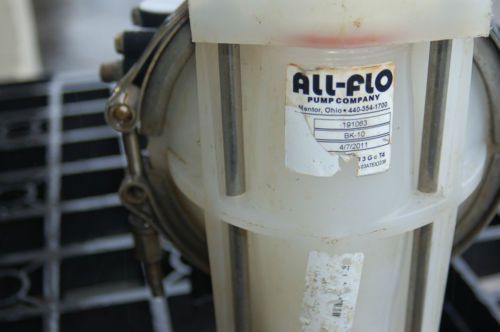

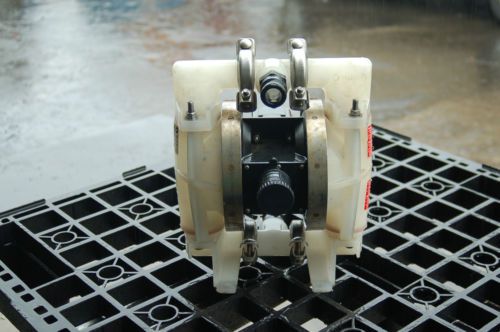

All-flo -1" / 25 Mm Air-operated Plastic Double-diaphragm Pump Aodd Liquid Bk-10

US $699.99

  • Canoga Park, California, United States
  • Jan 30th
Open on mobile:
QR code
BK-10 1” (25mm) Polypropylene/PTFE Reliable polypropylene air center section combine with non-metallic clamped casing materials ensure maximum chemical compatibility. Available in a variety of materials and options. Suitable for clean fluids, slurries or up to 1/4” solids Heavy duty air valve Non-metallic wetted components Muffler included Part No. Chambers/ Manifolds Intermediate/ Inner Chamber Diaphragms Valve/ Ball Valve Seats O-Rings Connection Type Fluid Porting BK-10 Polypropylene Polypropylene (Glass filled)/Polypropylene (Glass filled) PTFE PTFE Polypropylene PTFE NPT Suction Center Rear/Discharge Center Rear   Dimension Physical Dimensions See Drawings Air Inlet 1/4 " Liquid Inlet 1" (25mm) Liquid Outlet 1" (25mm) Weight 26 (11.8) lbs (kg) Performance Maximum Flow 40 gpm (152 lpm) Maximum Air Pressure 100 psi (6.8 bar) Maximum Solids 1/4 " (6.4 mm) Max Suction Lift Dry 15 ft (4.5 m) Max Suction Lift Wet 26 ft (7.9 m) Max Suction Lift Dry with PTFE 10 ft (3 m) Max Temperature 150 (66) °F (°C) Noise Level (with muffler) 80 dBA
