Allen Bradley 1336t-a003-aa-gt1en Digital Ac Driver + Ab 1329r Heavy Duty Motor

US $2,650.00

Minneapolis, Minnesota, United States
May 5th

Open on mobile:
QR code

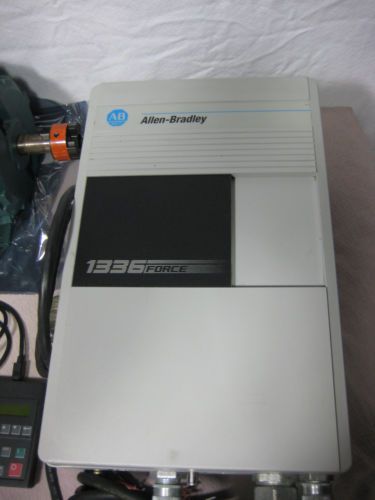

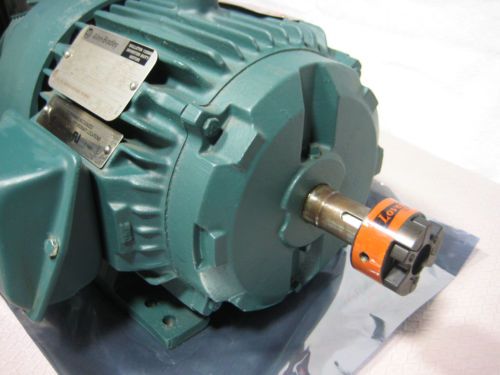

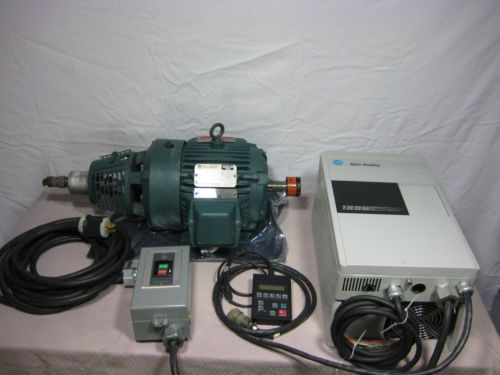

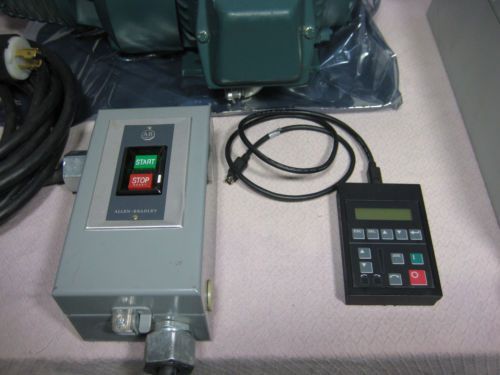

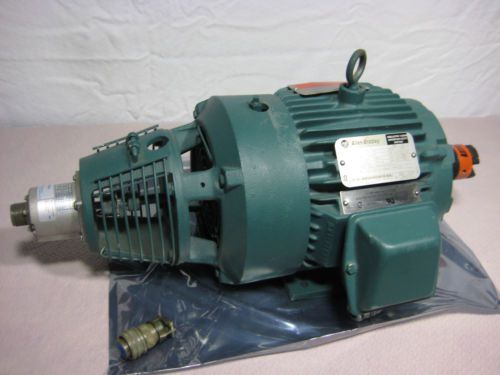

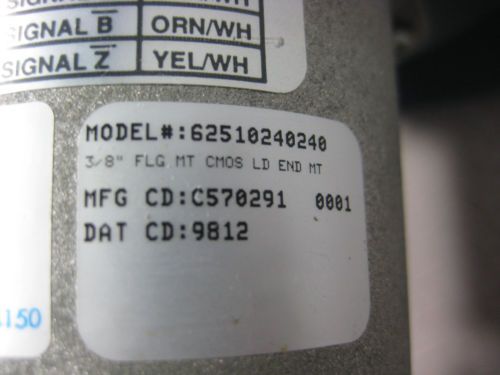

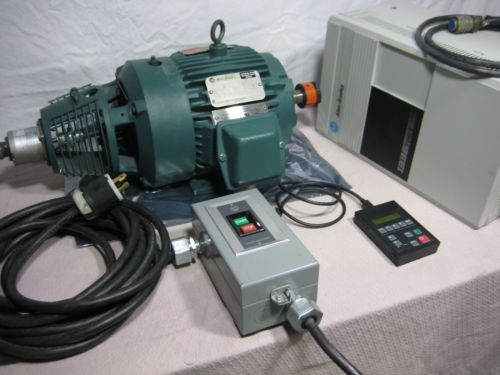

This auction is for a nice Allen Bradley system which includes the following items: Allen Bradley 1336T FORCE AC Digital Drive 1336T-A003-AA-GT1EN ( 1336T-GT1-SP34B) Allen Bradley 1329M Heavy Duty 1.5HP Motor 1329RM-HA1F512FCH-DY w/ Dynpar Encoder # 62510240240 Allen Bradley 1201-HA1 Programming Terminal Allen Bradley Stop/Start Switch Cables and Power Plug 208V 3PH 30A The AC Drive Input is 200-240V 3PH 28A, Output 0-230V 27.2A 0-400HZ This is in very good condition. Please see pictures for more details. I can ship Fedex Ground, or use your shipping account number and will drop ot off at a terminal. Weight of motor is 113lb unpacked. Controller and misc items: 63lbs unpacked. Will ship in 2 separate boxes. PLEASE NOTE: Shipping calculator is not accurate. Please ask for a quote. This will not need freight shipping as I can shipd Fedex Ground. I estimate around $150 to CONUS. Please ask if you have any questions. The Bulletin 1336 FORCE Field Oriented AC Drive is a microprocessor controlled Digital AC Drive with the following features: 1 to 650 HP at 0 - 250 HZ constant torque Four Quadrant operation available High Performance Digital Velocity Loop Microprocessor controlled, field oriented current loop Simplified programming through the use of a Parameter Table that features data entries in engineering units with English descriptions Nonvolatile Parameter Storage Extensive diagnostics, including both logic board and power structure tests Time stamped nonvolatile Fault/Warning Queue Real Time Clock Reference Time Stamp Run Time Accumulator Enclosed Construction Multiple Communication Interfaces Complete Encoder Interface Drive to Drive Link SCANport Peripheral Interface Performance Specifications Speed Regulation to 0.001% of top speed. Torque Regulation to ± 5% of rated motor torque. Power Loss Ride-Thru capability of two seconds. Flying Start: Capability of starting into a spinning motor. Torque Linearity 1% Overload Capability: 150% for 1 minute, 200% of motor rating for 10 seconds, up to inverter limit. Programmable Accel/Decel rates from 0 to 6553 seconds Current limit programmable from 200% of rated output current. Control Specifications Indirect Self-Organized, Field-Oriented Control, Current-regulated, sine coded PWM with programmable carrier frequency. HP Drive Rating Carrier Frequency 1-3 4 1-12 kHz 7.5-30 4 1-12 kHz 40-60 4 1-12 kHz 75-125 2 1-6 kHz 150-250 2 1-6 kHz 300-500 2 1-4 kHz 600-650 2 1-4 kHz 700-800 1 1-4 kHz Refer to Derating Guidelines in the Appendix of this manual Output Voltage Range - 0 to rated voltage Output Frequency Range - 0 to 250 Hz. Speed Regulation with Encoder Feedback - 0.001% of Top Speed over a 100.1 Speed Range. Encoderless Speed Regulation - 1% of Top Speed over a 40:1 Speed Range. Accel/Decel - Independently programmable accel and decel times. Program from 0 to 6553 seconds in 0.1 second increments. Current Limit - Independent Motoring and Regenerative Limit Inverse Time Overload Capability - Class 20 protection with speed-sensitive response. Adjustable from 0-200% of rated output current in 3 speed ranges - 2:1, 4:1 & 10:1. UL Certified - Meets NEC Article 430. Options Standard Adapter Board which provides: - 2 Analog Inputs +/-10V - 2 Analog Outputs +/- 10V - One 4-20mA input - One 4-20mA output - 5 or 12 vdc pulse input - +/- 10V reference voltages - At Speed, Run, Fault and Alarm contacts PLC Communication Adapter Board which provides: - 4 Analog Inputs +/-10V - 4 Analog Outputs +/- 10V - +/- 10V Reference voltages - RIO/DH? + Communications (2 channels selectable) - Function Blocks DriveTools?; PC Windows? based programming software compatible with the 1336 FORCE Drive and also other Allen-Bradley 1336 and 1395 products. Dynamic Braking AC Motor Contactor Protective Features Programmable Motor Overload Protection (I 2 T) investigated by UL to comply with NEC Article 430. Programmable Inverter Overload Protection (IT) Overspeed Detection, even when operating as a torque follower. Programmable Stall Detection Peak output current monitoring to protect against excessive current at the output due to a phase to ground or phase to phase short. Ground fault monitoring DC Bus Voltage monitoring to protect against under/over voltage conditions. Power Structure Heatsink Temperature Monitoring Environmental Specifications The following environmental guidelines apply to both the 1336 FORCE Drive and all devices and accessories connected to the Drive. Ambient Operating Temperature: IP00, Open: 0 to 50 degrees C (32 to 122 degrees F). IP20, NEMA Type 1 Enclosed: 0 to 40 degrees C (32 to 104 degrees F). IP65, NEMA Type 4 Enclosed: 0 to 40 degrees C (32 to 104 degrees F). Storage Temperature (all constructions): -40 to 70 degrees C (-40 to 158 degrees F). Relative Humidity: 5 - 95% non-condensing Altitude: 1000m (3300 ft) without derating. Shock: 15g peak for 11ms duration (+ 1.0 ms). Vibration: 0.006 inches (0.152 mm) displacement. 1G peak. Electrical Specifications Input Voltage Rating: 200 - 240VAC, Standalone, 3 Phase, +10%, -15% nominal 380 - 480VAC, Standalone, 3 Phase, +10%, -15% nominal 500 - 600VAC Standalone, 3 Phase, +10%, -15% nominal 513 - 621 VDC, Common Bus, +10%, -15% nominal 776 VDC, Common Bus, +10%, -15% nominal Input Power Rating: 2 - 134 KVA (230V) 2 - 437 KVA (380V) 2 - 555 KVA (460V) 2/3 - 578/694 KVA (500/600V) Input Frequency: 50/60HZ (±3HZ) Standard Output Voltage*: Four frame sizes are available. Each frame size is line dependent and can power a motor between the following voltages: 200 - 240 Vac (line dependent) 380 - 480 Vac (line dependent) 500 - 600 Vac (line dependent) *If voltage required for your application is not shown, contact Allen-Bradley for specific application. Output Current: 2.5 - 673A Output Power: 2 - 116 KVA (230V) 2 - 190 KVA (380V) 2 - 208 KVA (415V) 2 - 537 KVA (460V) 2 - 671 KVA (575V) Note: For information on factors that could effect the power output of the drive please refer to the Enclosure and Derating Guidelines in the Appendix of this manual. Output Horsepower (Continuous): 7.5 - 650HP Overload Capability: Continuous - 100% Fundamental current 1 minute - 150% Output Frequency Range: 0 - 250 HZ Output Waveform: Sinusoidal (PWM) Max. Short Circuit Current Rating : 200,000A rms symmetrical, 600 volts (when used with specified AC input line fuses as detailed in Table 2.A). Ride Through: 2 seconds minimum Efficiency: 97.5% at rated amps, nominal line volts Feedback Devices Encoder: Incremental, dual channel; 12 volts, 500mA, Supply, 5/12 Volt 10ma Min Inputs, isolated with differential transmitter, 102.5 KHz max. Quadrature: 90° ±27° @ 25°C, Duty Cycle: 50% + 10%. Speed Regulation with Encoder Feedback: 0.001% of Top Speed over a 100:1 Speed Range. Encoderless Speed Regulation: 0.5% of Top Speed over a 40:1 Speed Range.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Allen-Bradley
Country/Region of Manufacture	United States
