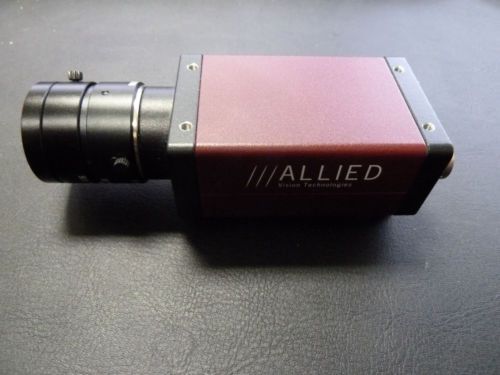

Allied Vision Technologies AVT Manta GM 146 C GigE Vision camera (Sony ICX267), US $800.00 – Picture 0

Allied Vision Technologies AVT Manta GM 146 C GigE Vision camera (Sony ICX267), US $800.00 – Picture 1

Allied Vision Technologies Avt Manta Gm 146 C Gige Vision Camera (sony Icx267)

US $800.00

Medfield, Massachusetts, United States
Jan 29th

Open on mobile:
QR code

Allied Vision Technologies Manta GM 146 C GigE Vision camera with Sony ICX267 and PoE option Retail price over $1200 for the camera alone. This unit also comes with the power supply and leads so you can use it right away (normally over $100 for these items). With tax this unit and power supply cost over $1400. Lens sold separately, works with any C-mount lens. International shipping available at cost. Description Value packed GigE Vision camera with Sony ICX267 The Manta G-146B/C is a value packed GigE Vision camera with a Sony ICX267 sensor. It runs at 17 fps (full resolution). With a smaller ROI, higher frame rates are possible. The color version includes color interpolation/color correction functions that outperform most cameras in this price class. Sony ICX267 (type 1/2), 1.4 Megapixels Two configurable inputs, two configurable outputs (all optocoupled), RS-232 Pixel format B/w: Mono8, Mono16 Color: Bayer8, Bayer16, RGB24, YUV411, YUV422, YUV444, BGR24, RGBA24, BGRA24 Trigger External trigger event: rising/falling/any edge, level high/low External trigger delay: 0 to 60 seconds in 1 ?s increments Modular options Various IR cut/pass filters CS-/M12-Mount (standard: C-Mount) Board level version Specifications Manta G-146 Resolution 1388 x 1038 Max frame rate at full resolution 17 fps Type CCD Progressive Interface IEEE 802.3 1000baseT A/D 14 bit Output 8-12 bit Sensor Size Type 1/2 Sensor Sony ICX267 Cell size 4.65 ?m On-board FIFO 32 MB Body Dimensions (L x W x H in mm) 86.4 x 44 x 29 mm incl. connectors, w/o tripod and lens Allied Vision Technologies Manta GM 146 C GigE Vision camera with Sony ICX267 and PoE option Color 1.3 MP 1/2 inch sensor. Resolution: 1392(h) 1040(v) Frame Rate(fps): 17 Sensor Device: Sony ICX267 Pixel Size(µm): 4.65(h) 4.65(v) Interface: GigE Lens Mount: C Sensor Type: CCD External Trigger: YES Shutter Type: Global Smart features ROI (Region of Interest Readout) Exposure Auto/one push/programmable Exposure time: 37.1 ?s to 60 s White balance Auto/one push/programmable Hue, saturation, sharpness (color versions) Gain Auto/one push/programmable Manual gain control: 0 to 24 dB (1 dB/step) Gamma (0.5) DSP subregion (selectable ROI for auto features) Binning (up to 8 x 8, independent x and y binning) Stream hold StreamBytesPerSecond (easy bandwidth control) On-board debayering 3 storable user sets

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Nearly new - used only a few times.”
