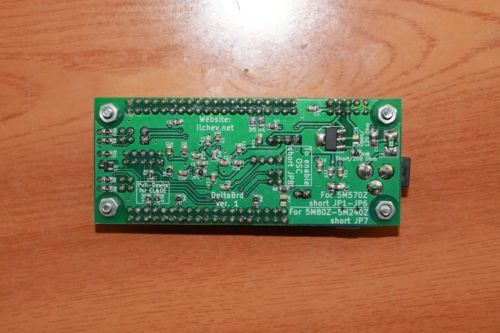

Please, consider that this sale is for one bare DeltaBrd PCB without any components or pin headers. If you would like a kit with the components, please contact me. For a few months now, we have been testing our design of a flexible breakout board for the Max V line of Altera CPLD chips. It performed very well in our prototype application for lighting control and up to now we are very happy with it. The DeltaBrd is designed for Max V chips in a 100-TQFP package: 5M80Z, 5M160Z, 5M240Z, 5M570Z. The board uses two AMS1117 low-dropout linear voltage regulators to provide 3.3V and 1.8V from a supply voltage in the range of 5V-9V. As an alternative power source, a mini USB connector is provided. All voltages are broken out to a separate pin header. The DeltaBrd also has a 100 Mhz on-board oscillator, which can be fed to the CLK0 and CLK1 inputs of the CPLD. The board incorporates several signal LEDs which can be freely tied to any CPLD pin of interest, an LED indicating JTAG activity and a power-on LED. The board also has a push button which can be tied to any CPLD pin. There is one push button which can be tied to any CPLD pin. All CPLD pins are accessible via the pin headers. The board is designed for easy hand soldering using classic though-hole components and 0805 SMD components. It is manufactured locally in Bulgaria (EU) and has an ENIG (Nickel/Gold) lead-free finish. More information about the board can be found at: http://www.ilchev.net/deltabrd Payment can be done via bank transfer or PayPal.
