Ando Aq7250 Sm Fiber Mini Otdr Long Haul 43/41db W/ Vfl Aq4253 Aq7255b Aq-7250

US $3,295.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

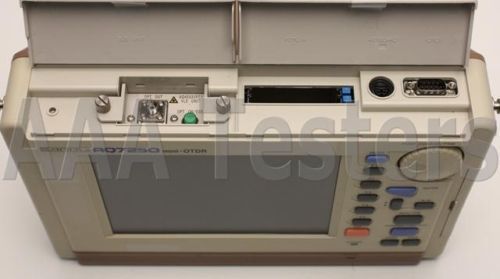

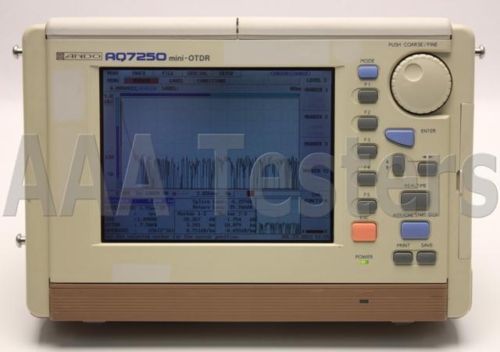

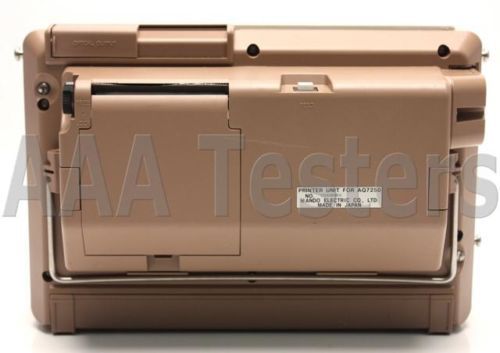

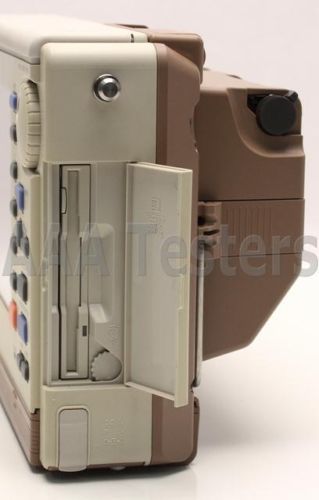

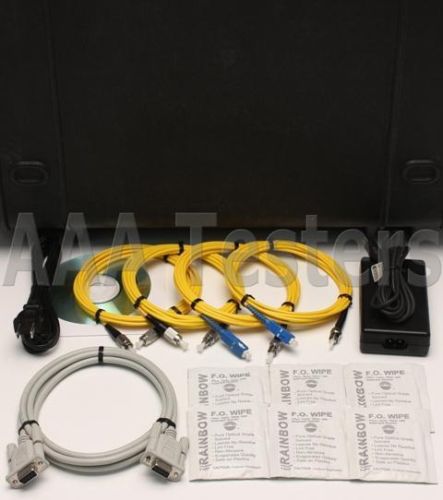

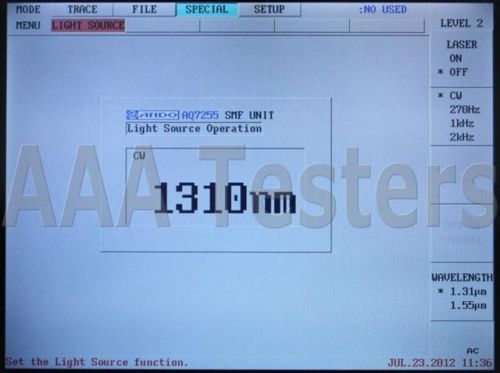

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Ando AQ7250 Mini OTDR Mainframe (BC# 14445) Ando AQ7255B Singlemode Long Haul OTDR Module 1310nm 1550nm Ando AQ4253 VLS / VFL Module Interchangeable FC Connector Fiber Cables: (2) SM SC-FC (2) SM FC-FC Attached Printer AC Adapter/Charger Power Cord RS232 PC Interface Cable (6) Fiber Optic Cleaning Pads User Manual on CD-ROM Hard Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Ando AQ7250 Mini Fiber OTDR MainFrame With Ando AQ7255B Singlemode 1310nm / 1550nm Long Haul 43/41dB Fiber Module & Ando AQ4253 VLS / VFL Module Dynamic Range 1310nm/1550nm : 43dB/41dB Includes Attached Printer, Hard Carrying Case & Accessories As Listed Above! Working Condition: Excellent Calibrated: Yes Condition: Refurbished Warranty: 90 Day Exchange The mini-OTDR AQ7250 and optical unit meet all the requirements for building and maintaining optical fiber systems, as well as manufacturing and inspecting optical fiber material. Compact, lightweight, and battery-powered, the AQ7250 offers a range of functions and capabilities ideal for field use. Its exceptionally wide dynamic range is particularly effective for measuring lines over long distances, as well as lines with heavy loss. In addition, an improved measurement algorithm drastically reduces measurement processing time. A wide range of optional equipment enables a single unit to be used for measurements on a variety of optical fiber lines. An optional high-speed printer or optical switch unit, as well as a visible light source or optical power meter can be installed on the main unit of the AQ7250. This eliminates the need to carry several measuring instruments on a single field mission. This mini-OTDR, like its predecessors, has a large, viewer-friendly color screen and a 3.5-inch floppy disk drive as standard equipment. High-speed, single-button measurement Automatic measurement with single-button operation in just over 10 seconds (B-type unit). Fast response The screen updates a minimum of two times per second in preview mode, and allows real time checking of change in the state of optical fibers in less than a second (twice as fast as previously). Measurement of lines with large reflection Reflections too large to be measured became measurable (using average rate of divided high reflection). The Singlemode Fiber Unit can measure return loss of near-end up to approximately 18dB. Compact and lightweight The compact B5 file-size AQ7250 weighs only 3 kg (approx.). Large color LCD The large 7.2-inch color LCD allows easy viewing of measurement values and waveforms. Background color of the display can be selected. Long battery life On batteries, the instrument has an operational life of approximately eight hours under normal service conditions, allowing a full day’s work on one charge. Recharge time is approximately four hours. Also supports a keyboard and mouse The main unit can be operated using an optional mouse. Supports a range of optical connectors Various optical connector adapters can be used to enable quick and easy swapping of optical connectors. AQ4253 VLS Unit Visible LD light-source unit capable of detecting even near-end faults. Wavelength: 635 ± 10 nm Optical output level: -6 ± 1.5 dBm Applicable optical fiber: SM (10/125 ?m) Connector: FC or SC (factory option) AQ7250 Unit Specifications: Display 7.2-inch color LCD (640 x 480 dots) Horizontal axis Full-scale 25m, 50m, 125m, 250m, 500m, 1km, 1.25km, 2km, 2.5km, 5km, 10km, 20km, 40km, 80km, 160km, 240km (Varies according to the unit) Shift 0 to distance range Resolution Sampling resolution: 50 cm/min. Sample data count 20,000 points max. Distance accuracy ± (5.0 x 10-5 x measurement distance in meters + 1m) Group refractive index setting 1.00000 to 1.99999, in 0.00001 steps Vertical axis Distance measurement Displays the relative one-way distance between any two given points, in two ranges on the waveform, in eight digits. Scale 0.2 dB/div., 0.5 dB/div., 1 dB/div., 2 dB/div., 5 dB/div., and 7.5 dB/div. Shift 0 to 68 dB Read resolution Max. 0.001 dB Loss measurement Displays one-way losses in steps of 0.001 dB to a maximum of 5 digits. Displays the relative one-way loss, loss per unit length, and splice loss between any two given points in two ranges on the waveform. Automatic measurement function Provided Return-loss measurement function Return loss: calculated as the difference between the backscattered and reflected light levels. Total return loss: calculated as the attenuation of total reflected light in relation to total emitted light. Memory Floppy disk (3.5-inch, 2HD) Can store up to 999 screens (screen mode) and measurement conditions. Others Optional: PCMCIA hard disk card, IC memory card Interface Serial 9-pin D-sub Keyboard/mouse 6-pin DIN (Type PS/2) PCMCIA card slot PCMCIA type II x 2 or type III x 1 for memory, or hard-disk cards Power Requirements Battery Ni-MH (Duration: 7 hrs. typ.) 2) AC adapter AC100 to 240 V, 50/60 Hz External power supply 12 V +20%/-10% (for operation of unit only; not available for battery charging) Environmental conditions Temperature Operating temp. : 0 to +50° C (for floppy-disk drive 5 to 40° C/during charging 5 to 35°C) Storage temp. : -20 to +60° C Relative humidity 85% RH or less (no condensation) Dimensions and mass Approx. 290 (W) x 194 (H) x 75 (D) mm, approx. 3 kg with AQ7254B mounted AQ7255B Singlemode Module Unit Single-mode Fiber Unit Measurement Wavelength(?m) 1.31/1.55±0.025 Measured fiber SM (10/125 ?m) Distance range (km) 2, 5, 10, 20, 40, 80, 160, 240 Pulse width (sec) 10 n, 20 n, 100 n, 200 n, 500 n, 1 ?, 4 ?, 10 ?, 20 ? Dynamic range (dB)(SNR=1) 43/41 (45/43) Dead zone (m) Event 3 Attenuation 8/9 Stabilized light source Wavelength (?m) 1.31/1.55 Max. outpot (dBm) -3±2 Stability ±0.1 Laser product class Class 1 (FDA) and class 3A (IEC) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. --> This item is subject to a FIXED SHIPPING price. This means that the shipping fee will be the displayed amount for all ship-to destinations shown. This item is eligible for pickup unless otherwise stated. We do not ship to any destinations that are not specified here. Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do/do not cover this cost for all of our US customers. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept payment transactions via our online checkout system! Our checkout process is designed that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through our online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hrs upon receipt of payment from the winning bidder. A Shipment Tracking number will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Terms: All transactions are final. Winning bidder assumes all risk of liability with respect to the purchase of the product. Thank you WE ACCEPT ALL MAJOR CREDIT CARDS Powers Your Online Marketplace Make order management a breeze with Kyozou eBay Order Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	ANDO
Model	AQ7250
