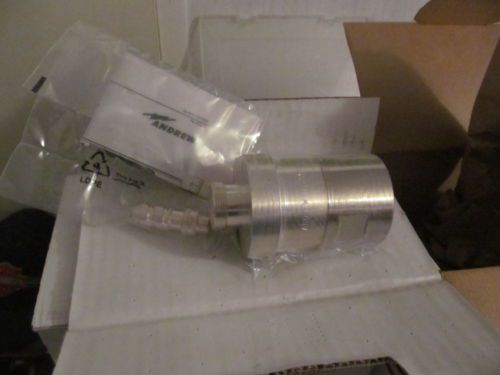

Andrew H7pdf 7/16 Din Female Connector

US $75.00

  • Bulverde, Texas, United States
  • Feb 23rd
Open on mobile:
QR code
 NIB Andrew H7PDF Connector  use shipping Calculator. Specs for the connector: General Specifications Interface 7-16 DIN Female Body Style Straight Brand HELIAX® Gas Barrier Yes Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 – 2700 MHz Cable Impedance 50 ohm RF Operating Voltage, maximum (vrms) 1415.00 V dc Test Voltage 4 kV Insulation Resistance, minimum 5000 MOhm Average Power 3.0 kW @ 900 MHz Peak Power, maximum 40.00 kW Insertion Loss, typical 0.05 dB Mechanical Specifications Outer Contact Attachment Method Tab-flare Inner Contact Attachment Method Thread-in stub Outer Contact Plating Silver Inner Contact Plating Silver Dimensions Nominal Size 1-5/8 in Diameter 60.43 mm | 2.38 in Length 106.30 mm | 4.19 in Weight 1.18 kg | 2.60 lb Environmental Specifications Operating Temperature -40 °C to +150 °C (-40 °F to +302 °F) Storage Temperature -70 °C to +100 °C (-94 °F to +212 °F) Return Loss/VSWR Frequency BandVSWRReturn Loss (dB) 50–1000 MHz1.0336.00 1000–2500 MHz1.0631.00 2500–5000 MHz1.0828.00 5000–7000 MHz1.2220.00
“New In Box”
Brand Andrew
Model H7PDF

Directions
