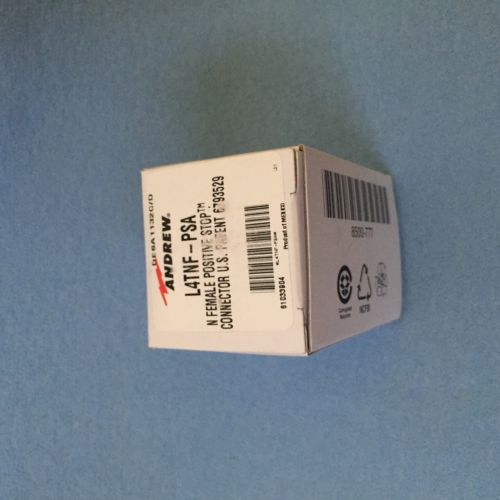

Andrew L4TNF-PSA Positive Stop Connector N-Female NIB, US $10.49 – Picture 0
Andrew L4TNF-PSA Positive Stop Connector N-Female NIB, US $10.49 – Picture 1
Andrew L4TNF-PSA Positive Stop Connector N-Female NIB, US $10.49 – Picture 0
Andrew L4TNF-PSA Positive Stop Connector N-Female NIB, US $10.49 – Picture 1

Andrew L4tnf-psa Positive Stop Connector N-female Nib

US $10.49

  • West Chicago, Illinois, United States
  • Jun 9th
Open on mobile:
QR code
Andrew L4TNF-PSA Positive Stop Connector N-Female New in Box! Type N Female Positive Stop™ for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable Positive Stop™ Connectors Secure, foolproof, no-special-tools required connection every time Ease connector attachment issues and ensure excellent RF transmission line performance with Positive Stop Connectors from Andrew. Revolutionary Positive Stop Connectors for HELIAX corrugated coaxial cables require no special tools or torque wrenches, eliminating both guess work and time consuming measurements. Using standard wrenches and in less than one rotation, Positive Stop Connectors give the installer a clear visual and mechanical verification of a correct fit, sealing out water and sealing in excellent electrical performance. Positive Stop Connectors are waterproof, even unmated. The connectors' easy verification eliminates the need to control torque levels and provides consistent attachment integrity and electrical performance. No special tools required Full tightens in less than one rotation Visual and mechanical fit verification Integrated sealing mechanism Faster, easier installation Excellent electrical performance General Specifications   Interface   N Female Body Style   Straight Brand   HELIAX®   |   Positive Stop™ Harmonized System (HS) Code   854420 (Coaxial cable and other coaxial electric conductors) Mounting Angle   Straight Ordering Note   CommScope® standard product (Global)     Electrical Specifications   Connector Impedance   50 ohm Operating Frequency Band   0 – 8800 MHz Cable Impedance   50 ohm 3rd Order IMD, typical   -116 dBm @ 910 MHz 3rd Order IMD Test Method   Two +43 dBm carriers RF Operating Voltage, maximum (vrms)   707.00 V dc Test Voltage   2000 V Outer Contact Resistance, maximum   0.30 mOhm Inner Contact Resistance, maximum   2.00 mOhm Insulation Resistance, minimum   5000 MOhm Average Power   0.6 kW @ 900 MHz Peak Power, maximum   10.00 kW Insertion Loss, typical 0.05 dB Shielding Effectiveness   -130 dB     Outline Drawing       Click on image below to enlarge.
