Anritsu Bts Master Mt8222a Base Station Analyzer 25/26/31/37/46/66

US $2,995.00

Toledo, Ohio, United States
Aug 3rd

Open on mobile:
QR code

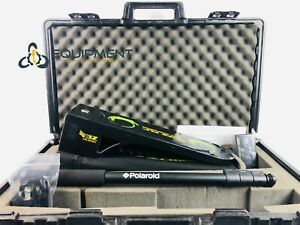

The Following Items Are Included: Anritsu BTS Master MT8222A Handheld Base Station Analyzer w/ Options: (BC# 42540) 25: Interference Analysis 26: 6 GHz Cable and Antenna Analyzer 31: GPS Receiver 37: Mobile WiMAX OTA (Over The Air) 46: Fixed WiMAX RF Measurements 66: Mobile WiMAX RF Measurements Eagle CKT050A Open/Short/Load Calibration Kit Anritsu Armored Test Port Cable (2) BNC Cables Ethernet Cable SanDisk 256MB Flash Card DC Car Charger AC Adapter/Charger Power Cord USB PC Interface Cable User Manual On CD-ROM Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Anritsu BTS Master MT8222A Handheld Base Station Analyzer 14GHz To 6GHz Frequency Range Installed Options: - 25: Interference Analysis - 26: 6 GHz Cable and Antenna Analyzer - 31: GPS Receiver - 37: Mobile WiMAX OTA (Over The Air) - 46: Fixed WiMAX RF Measurements - 66: Mobile WiMAX RF Measurements Includes Eagle CKT050A Open/Short/Load Calibration Kit, Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 1 YEAR WARRANTY BTS Master – A High Performance, Handheld Base Station Analyzer BTS Master MT8222A is the value choice for deploying, maintaining and troubleshooting 2G/2.5G, 3G, and 4G wireless base stations. The BTS Master is a combination of our popular Spectrum Master MS2721B and VNA Master MS2024A offered as one handheld solution, weighing 4 kg (9 lbs). The functionality of the BTS Master is: Built-in spectrum analyzer (100 kHz to 7.1 GHz) Built-in cable and antenna analyzer (10 MHz to 4 GHz, 10 MHz to 6 GHz optional) Built-in power meter (10 MHz to 7.1 GHz) Transmitter analyzer (LTE, WCDMA/HSDPA, GSM/GPRS/EDGE, WiMAX, CDMA, EVDO, TD-SCDMA) Interference analyzer (100 kHz to 7.1 GHz) Channel scanner (100 kHz to 7.1 GHz) High Accuracy Power Meter (per power sensor specifications) Power monitor (100kHz to 50 GHz) Built-in variable Bias Tee (12V-32V) T1/FT1 analyzer T3/T1/FT1 analyzer 2 Mb/s - E1 analyzer GPS receiver The new BTS Master is an integrated multi functional base station test tool eliminating the need to carry and learn multiple test sets. The MT8222A measurement capabilities include spectrum analysis including smart measurements, precision return loss, VSWR, cable loss, distance-to-fault, two port gain/loss, one port and two port magnitude and phase, interference analysis, spectrogram, RF and demodulation measurements for LTE, WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, TD-SCDMA, Fixed WiMAX and Mobile WiMAX, demodulating WCDMA/HSDPA, CDMA, TD-SCDMA, EVDO over the air (OTA), location information, enhanced frequency reference oscillator accuracy, variable bias tee, 2 Mb/s - E1, T3 and T1 measurements. The High Accuracy Power Meter (Option 19) provides true RMS measurements The BTS Master can be configured with an interference analyzer, which is maximized by the MT8222A’s built-in low-noise preamplifier. The result is that interfering signals down to -162 dBm can be identified and located, allowing technicians/RF engineers to better address quality issues that affect user service. Interfering signals can be identified using the Spectrogram display. Master Software Tools (MST), comprehensive data management and analysis software is user friendly and it is easy to manage, archive and analyze system performance, trends and the general health of monitored base stations. The MT8222A is shipped with a User's Guide, a soft carrying case, an AC - DC Adapter, an Automotive Cigarette Lighter/12 Volt DC Adapter, a CD ROM containing Master Software Tools and USB driver, a USB A-mini B cable, an Ethernet Cable, a rechargeable Li-ion battery pack, a 2 GB Compact Flash module, a type-N male to SMA female adapter, a type-N male to BNC female adapter. Every MT8222A has a one year warranty for parts and labor and is shipped with a certificate of calibration and conformance. Applications Spectrum analysis-anytime, anywhere (100 kHz to 7.1 GHz) Cable and antenna testing, one port and two port measurements (10 MHz to 4.0 GHz, 10 MHz to 6.0 GHz optional) WCDMA/HSDPA node B analysis GSM/GPRS/EDGE base station analysis TD-SCDMA base station analysis LTE Analysis Fixed WiMAX base station analysis Mobile WiMAX base station analysis CDMA base station analysis EVDO base station analysis Interference detection and location T1/FT1 functional tests T3/T1/FT1 functional Tests 2 Mb/s - E1 functional tests Features Handheld, battery-operated design, weighing 4 kg (9 lbs) Large daylight viewable transflective color display Best in class Displayed Average Noise Level < -163 dBm typical in a 1 Hz resolution bandwidth at 1 GHz Vector corrected 1-port and 1-path 2-port measurements FlexCal Built-in variable 12V to 32V bias tee Demodulate WCDMA signals using Over The Air (OTA) measurement while sitting in the car WCDMA/HSDPA TD-SCDMA, LTE, GSM/GPRS/EDGE, CDMA, EVDO, Fixed WiMAX, RF and demodulator measurements Automated Pass/Fail mode for WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, TD-SCDMA, Fixed WiMAX and Mobile WiMAX measurements Locate and measure the interfering signal Using spectrogram measurement identify intermittent interference Measure frequency, bandwidth and power of multiple transmitted signals Create up to 20 custom channels and scan channels by frequency or channel number GPS receiver for location information and frequency oscillator accuracy enhancement Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian) Rechargeable/field-replaceable Li-Ion battery Master software Tools (MST) Features Stores an unlimited number of data traces for comparison to historical performances Capability to create custom languages using Master Software Tools and download the languages into the MT8222A Using Master software tools create and download signal standards, pass/fail lists, cable lists and antenna factors Automatically update the unit with the latest firmware Coordinate cell site locations using Microsoft Mappoint and GPS location mapping Remote control of the MT8222A via Ethernet link Specifications: Cable and Antenna Analyzer Frequency Range: 10 MHz to 4 GHz Frequency Accuracy: 25 ppm Frequency Resolution: 10 kHz Data Points: Low, Medium, High (137/275/551) Interference Immunity: On-Channel: +17 dBm On-Frequency: 0 dBm (RF Out) +30 dBc RF In 1-Port Power: High: 0 dBm (typical) 2-Port Power: High: 0 dBm (typical) Low: –35 dBm (typical) Corrected Directivity: 42 dB (10 MHz to 6 GHz) 1-Port Accuracy: = <0.8 + | 20 log (1 ±10–E/20) | dB, typical E = Directivity – Measured Return Loss System Dynamic Range: 80 dB, 10 MHz to 3 GHz 70 dB, >3 GHz to 5.5 GHz 65 dB, >5.5 GHz to 6 GHz Return Loss: Range: 0 to 60 dB Resolution: 0.01 dB VSWR: Range: 1 to 65 Resolution: 0.01 Cable Loss: Range: 0 to 30 dB Resolution: 0.01 dB 1-Port Phase: Range: –180° to +180° Resolution: 0.01° Smith Chart: Resolution: 0.01 2-Port Gain: Range: –120 to 100 dB Resolution: 0.01 dB 2-Port Phase: Range: –180° to +180° Resolution: 0.01° Distance-to-Fault: Fault Resolution (meters): (1.5 x 108 x vp)/F vp is the propagation constant and F is F2-F1 in Hz Horizontal Range (meters): 0 to (data points-1) x Fault Resolution to a maximum of 1500m (4921 ft.) where datapoints = 137/275/551 Vertical Range (Return Loss): 0 to 60 dB Vertical Range (VSWR): 1 to 65 Spectrum Analyzer Frequency: Frequency: 100 kHz to 7.1 GHz Maximum Continuous Input: +30 dBm Tuning Resolution: 1 Hz Frequency Reference: Aging: ±1 ppm/10 years Accuracy: ±0.3 ppm (25 °C ±25 °C) + aging Frequency Span: 10 Hz to 7.1 GHz plus 0 Hz (zero span) Sweep Time: Minimum 100 ms, 10 s to 600 seconds (zero span) Sweep Trigger: Free run, Single, Video, External Resolution Bandwidth: (–3 dB width) ±10%, 1 Hz to 3 MHz in 1–3 sequence 8 MHz demodulation bandwidth Video Bandwidth: (–3 dB) 1 Hz to 3 MHz in 1–3 sequence SSB Phase Noise: –100 dBc/Hz max at 10, 20 and 30 kHz offset from carrier –102 dBc/Hz max at 100 kHz offset from carrier Amplitude: Measurement Range: DANL to +30 dBm Absolute amplitude accuracy Power Levels –50 dBm, 35 dB input attenuation, Preamplifier Off: 100 kHz to 10 MHz ±1.5 dB >10 MHz to 4 GHz ±1.25 dB >4 GHz to 7.1 GHz ±1.75 dB Displayed Average Noise Level (DANL in 1 Hz RBW, 0 dB attenuation, Reference level –50 dBm, preamp on): Frequency Typical Max 10 MHz to 1 GHz –163 dBm –161 dBm >1 GHz to 2.2 GHz –160 dBm –159 dBm >2.2 GHz to 2.8 GHz –156 dBm –153 dBm >2.8 GHz to 4.0 GHz –160 dBm –159 dBm >4.0 GHz to 7.1 GHz –158 dBm –154 dBm Input-Related Spurious: (–30 dBm input, 0 dB input attenuation, Span <1.7 GHz) –70 dBc typical –60 dBc max* * Exceptions: Input Frequency Spur Level 1674 MHz –38 dBc (–48 typical) Residual Spurious: (Preamplifier on, RF input terminated, 0 dB input attenuation) –100 dBm max (Preamplifier off, RF input terminated, 0 dB input attenuation) –90 dBm max**, 100 kHz to <3200 MHz –84 dBm max**, 3200 to 7100 MHz ** Exceptions: Frequency Max Spur Level (Typical) 250, 300, and 350 MHz –85 dBm ~4010 MHz –80 dBm (–90 dBm) ~5084 MHz –70 dBm (–83 dBm) ~5894 MHz –75 dBm (–87 dBm) ~7028 MHz –80 dBm (–92 dBm) Display Range: 1 to 15 dB/div in 1 dB steps. Ten divisions displayed Amplitude Units Log Scale Modes: dBm, dBV, dBmv, dBV Attenuator Range: 0 to 65 dB Attenuator Resolution: 5 dB steps Power Meters: Frequency Range: 10 MHz to 7.1 GHz Display Range: –80 dBm to +80 dBm Measurement Range: –60 dBm to +30 dBm Offset Range: 0 to +60 dB Accuracy: –40 dBm <Max +15 dBm: 10 MHz –4 GHz: ±1.25 dB 4 GHz –7.1 GHz: ±1.75 dB Max> +15 dBm: 10 MHz –6.5 GHz: ±1.75 dB 6.5 GHz –7 GHz: ±2 dB Max –40 dBm: 10 MHz –4 GHz: ±1.5 dB 4 GHz –7.1 GHz: ±1.75 dB VSWR: 1.5:1 typical Maximum Power: +30 dBm (1 W) without external attenuator Bias Tee (Option 10) Voltage/Current: +12 V, 250, or 500 mA steady state +15 V, 250, or 500 mA steady state +18 V, 350 mA steady state +21 V, 250 mA steady state +24 V, 250 mA steady state Interference Analyzer (Option 25) Strength of the Interferer: Locate the Interferer RSSI: Collect data up to 72 hours Spectrogram: Collect data up to 72 hours Signal ID: Monitors one particular frequency or scan the span and identify up to 12 signals. Identifies CDMA, GSM and WCDMA signals with Signal-to-noise ratio greater than 10 dB. Channel Scanner (Option 27) Frequency Range: 100 KHz to 7.1 GHz Frequency Accuracy: ±10 Hz + Time base error, 99% Confidence level Measurement Range: +20 dBm to –110 dBm Channel Power: 100 kHz to =10 MHz ±1.5 dB >10 MHz to4 GHz ±1.25 dB >4 GHz to 7.1 GHz ±1.75 dB Adjacent Channel Power Accuracy: ±0.75 dB GPS (Option 31) GPS Location Indicator: Latitude, Longitude and Altitude on display Latitude, Longitude and Altitude with trace storage GPS High Frequency Accuracy when GPS antenna is connected: ±25 ppb with GPS ON, 3 minutes after satellite lock Internal High Accuracy, when GPS antenna is not connected: Better than ±50 ppb for 3 days from a High Accuracy GPS Lock and within 0 C to 50 C ambient temperature For full Anritsu MT8222A product specifications, please click here: Anritsu MT8222A Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Sell Smarter with Kyozou. Inventory and Ecommerce Management

Condition:	Seller refurbished: The item has been restored to working order by the eBay seller or a third party. This means the item was inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See seller’s listing for full details. ...	Brand	Anritsu
Model	MT8222A
MPN	MT8222A
